Why superposition theorem is only used in linear circuit?

The requisite of linearity means that Superposition Theorem is only applicable for determining voltage and current, not power!!! Power dissipations, being nonlinear functions, do not algebraically add to an accurate total when only one source is considered at a time.

What is the use of superposition?

Superposition theorem is applied when we are to determine the current in one particular branch of a network containing several voltage sources and/or current sources.

What is superposition theorem and its limitations?

The superposition theorem has certain limitations. It is used to measure current and voltage but cannot be used to measure power. Applicable only for linear circuits. There must be more than one source to apply this theorem. This is not applicable for unbalanced bridge circuits.

What is superposition theorem?

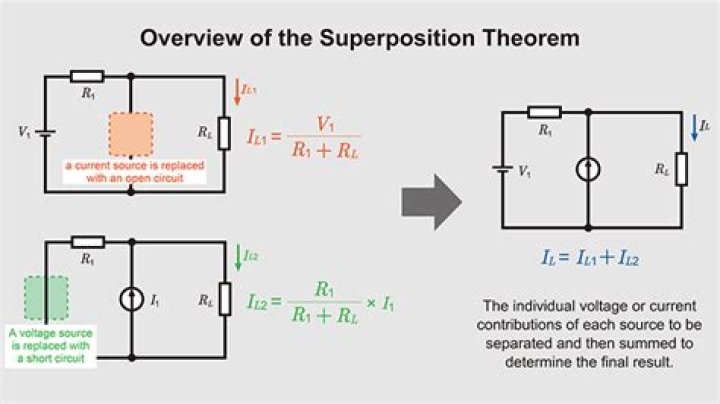

The superposition theorem states that a circuit with multiple voltage and current sources is equal to the sum of simplified circuits using just one of the sources.

Quantum Superposition, Explained Without Woo Woo

Why superposition theorem is not applied to nonlinear circuit?

There is not a linear relationship (like V=IR in Ohm's law) between current and voltage in a non linear circuit consisting of a diode or a transistor or any other unilateral element. As superposition theorem depends on this linearity, hence it fails to find the current flowing through a non linear circuit.

Is superposition theorem applicable for nonlinear circuit?

The superposition theorem applies only when all the components of the circuit are linear, which is the case for resistors, capacitors, and inductors it is not applicable to networks containing nonlinear elements.

Can we use superposition theorem in non linear circuit explain?

Superposition can only be applied to networks that are linear and bilateral. Fortunately, all of components we have discussed; resistors, capacitors and inductors, fall into that category. Further, superposition cannot be used to find values for non-linear functions, such as power, directly.

Why superposition theorem is not applicable for power?

The superposition theorem is not applicable to power, because it is a non-linear quantity. Therefore, the total power dissipated in a resistor must be calculated using the total current through (or the total voltage across) it.

For which circuit superposition theorem is valid for?

The superposition theorem applies only when all the components of the circuit are linear, which is the case for resistors, capacitors, and inductors it is not applicable to networks containing nonlinear elements.

Is superposition theorem valid for only linear systems?

Explanation: Superposition theorem is valid for only linear systems. Superposition theorem is not valid for non-linear systems. In a network containing complex impedance, all quantities must be treated as complex numbers. 3.

Who discovered superposition theorem?

According to Léon Brillouin, the principle of superposition was first stated by Daniel Bernoulli in 1753: "The general motion of a vibrating system is given by a superposition of its proper vibrations." The principle was rejected by Leonhard Euler and then by Joseph Lagrange.

When superposition theorem is applied to any circuit the current source is always?

Explanation: In superposition theorem, whether we consider the effect of a voltage or current source, current sources are always opened and voltage sources are always shorted. 5.

Is superposition theorem true for dependent sources?

Six explicitly state that dependent sources must remain active when applying superposition. Three specifically refer to the sources as independent in stating the principle of superposition. Two present an exam- ple circuit containing a dependent source which is never set to zero in the superposition.

How do you use superposition theorem?

Step 1 − Find the response in a particular branch by considering one independent source and eliminating the remaining independent sources present in the network. Step 2 − Repeat Step 1 for all independent sources present in the network.

Can we apply superposition for voltage why?

Superposition works for voltage and current but not power. In other words, the sum of the powers of each source with the other sources turned off is not the real consumed power.

Can we apply superposition theorem in AC circuit?

Yes, the superposition theorem is applicable to AC circuits as well. The theorem is valid for any linear circuit. The best way to use superposition with AC circuits is to calculate the complex effective or peak value of the contribution of each source applied one at a time, and then to add the complex values.

What are the advantages and disadvantages of using superposition theorem?

Advantages - It is applicable to the elements of the network as well as to the sources. It is very useful for circuit analysis. It is utilized to convert any circuit into its Thevenin equivalent or Norton equivalent. Disadvantages - Superposition is applicable to current and voltage but not to power.

Is superposition only for independent sources?

In the context of superposition, dependent sources look more like resistors, which simply relate various branch currents and node voltages. Their equations have no nonzero independent source terms on the right-hand side of the equation, so they do not effect superposition.

What is the necessary condition for superposition theorem to be applicable in any linear active and bilateral network?

All the components of the circuit must be linear. For example, in a resistor, the current must be proportional to the applied voltage. Another example of the linear circuit is that in an inductor, current and flux linkage must be proportional.

Why does superposition principle work for voltage and current but not for power?

Originally Answered: why superposition theorem is not valid for power in a resistive circuit ? superposition theorem is applicable only when we are applying it to linear variables such as voltage or current. whereas power P=I^, is a non linear variable. and hence superposition theorem cannot be applied.

In which of the following cases a superposition theorem Cannot be used?

The superposition theorem applies only when all the components of the circuit are linear, which is the case for resistors, capacitors, and inductors it is not applicable to networks containing nonlinear elements.

Why is the superposition theorem useful for analysis of multiple source circuits?

If a circuit is made of linear elements, we can use superposition to simplify the analysis. This is especially useful for circuits with multiple input sources. To analyze a linear circuit with multiple inputs, you suppress all but one input or source and analyze the resulting simpler circuit.
