Why is my weld popping?

The wire is hitting the surface and not melting into the metal fully. You will feel the wire pushing back on the MIG gun because of this, and you will hear a lot of random popping from the welder.

Why do I keep getting porosity in my welds?

Leaks in the gas line, too high a gas flow rate, draughts and excessive turbulence in the weld pool are frequent causes of porosity. Hydrogen can originate from a number of sources including moisture from inadequately dried electrodes, fluxes or the workpiece surface.

How can you tell if a weld is bad?

Signs of a bad weld include: Burnout, no filler metal used, wide flat bead without distinct bead pattern, erratic beads, tungsten inclusion, porosity and/or undercutting.

Is it OK to weld over a weld?

It should be remembered that welding over weld metal is actually a very common occurrence. Multi-pass welds after all are manufactured by welding over weld metal! There are also many accepted procedures in which welds overlap.

Why are my Mig Welds so Bad?

Do you push or pull when welding?

Put in simpler terms, you should be pulling the rod towards you when using any welding process that produces slag. This includes submerged arc welding, electroslag welding, flux-cored arc welding and shielded metal arc welding (SMAW), more commonly known as stick welding.

How do you fix and avoid weld porosity?

7 Ways to Eliminate Porosity in Your Welds

1. Check your gas flow rate. ...
2. Make sure you gas flow rate is not see too high. ...
3. Check for gas leaks. ...
4. Keep an adequate contact-tip-to-work distance (CTTWD). ...
5. Avoid drafty conditions. ...
6. Clean the surface to be welded. ...
7. Watch your travel angle.

Can you weld out porosity?

The only way to properly repair a weld porosity is to remove the porous section of the weld down to the base material. Attempting to weld over the affected bead will only end in the same result.

Why is my weld sputtering?

When the power source senses the reduced current at the arc, it sends a surge of voltage in order to overcome the restricted current flow. This increased voltage causes the popping and sputtering that leads to poor and inconsistent weld quality.

What should the gas pressure be set at?

Proper gas pressure out should be; LOW FIRE 6.7” w.c. to 7.3” w.c. and HIGH FIRE 9.7” w.c. to 10.3” w.c.. Natural Gas; The input pressure should be approximately 5.5” w.c. to a max of 10.5” w.c.. Again this should be measured only after all other gas appliances on that supply are brought on and running on high fire.

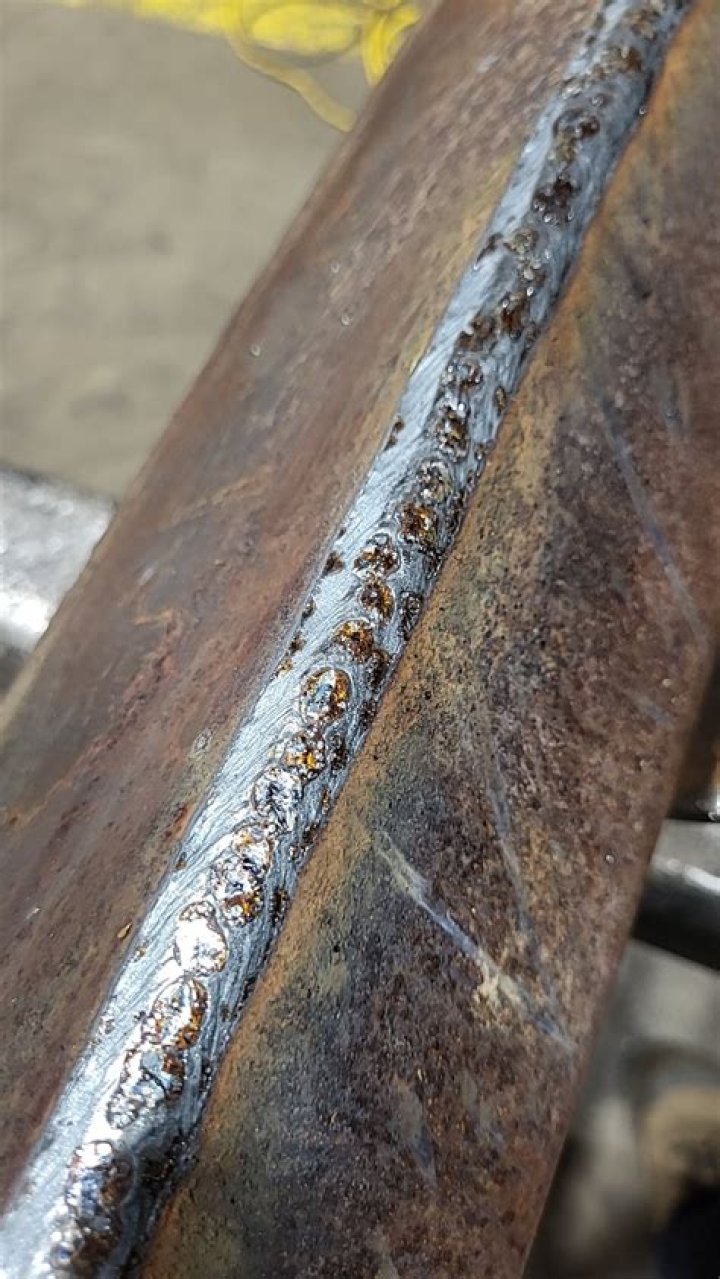

What does porosity look like in a weld?

These impure welds are commonly referred to as cavities. Basically porosity in welding is a weak, bubble-filled weld that does not meet code and more importantly can in some cases, cause part of a project to become weak and collapse. If you find that your weld has this impurity it must be redone immediately.

Can you burn porosity out?

Porosity does not "burn out", it travels from weld pass to weld pass and never leaves the original weld pass. It must be removed by air carbon arc gouging and / or grinding.

What are the three causes of porosity?

The most common causes of porosity are atmosphere contamination, excessively oxidized work piece surfaces, inadequate deoxidizing alloys in the wire and the presence of foreign matter. Atmospheric contamination can be caused by: 1) Inadequate shielding gas flow. 2) Excessive shielding gas flow.

How much porosity is acceptable in a weld?

When it comes to porosity, the American Welding Society dictates that the sum of the diameters of visible porosity should not exceed 3/8 inches, or 9.5 mm, in any linear inch of the weld, or exceed 3.4 inches or 19 mm, in any 12-inch length of a weld.

What is the easiest welding to learn?

MIG Welding (Beginner)

MIG welders are among the best type for beginners, as they're designed with a wire welding electrode on a spool that is fed at a pre-selected speed through a welding gun. As a semi-automatic or automatic process, gas metal arc welding (GMAW or MIG), is the easiest to learn.

Does grinding a weld weaken it?

I've been discussing with a friend of mine whether or not it's ever OK to grind your welds. I understand that grinding down a weld reduces it's strength, and therefore a structural weld should never be ground down.

What angle should you weld at?

In the horizontal welding position, a work angle of 30 to 60 degrees works well, depending on the type and size of the joint. The goal is to prevent the filler metal from sagging or rolling over on the bottom side of the weld joint.

What should you not do when welding?

5 Things Not To Do When Welding

1. #1) Welding In a Poorly Ventilated Area. ...
2. #2) Not Preheating. ...
3. #3) Not Wearing The Appropriate Safety Gear. ...
4. #4) Welding On Unstable Surfaces. ...
5. #5) Not Cleaning or Maintaining The Arc Welder.

How do I know if my weld is too hot?

You will have undercut on the toes of the weld and the weld puddle will be too hot to control and will usually be crowned up in the middle. Another clue is if you burn a rod down to about 3 inches long and your stick welding rod is glowing red, you are too hot.

How many times can you repair a weld?

limited any repair to 3 times. That was for carbon steel, low alloys, and stainless. This was based upon what we considered good metallurgical and welding practice.

Is weld spatter a defect?

Welding spatter is a welding defect. During welding operation due to the force of arc, some of the molten metal particles are jumping from weld pool and falling into other areas of the plate is called as spatter.
