Which is the small instrument used for measuring the magnitude of movement of a crack in Wall Mcq?

1. Crack Width. Crack severity on the surface of concrete is normally measured using a crack width ruler (crack gauge). Depending on the opening of the cracks on the surface, cracks can be described (as tiny as hairline, or severe (few millimetres opening).

How do you measure cracks in concrete?

The widths of cracks on the surface of concrete can be measured using a simple comparator consisting of a plastic strip with fixed width lines. Alternatively a hand-held microscope with a suitable scale can be used.

How are structural cracks measured?

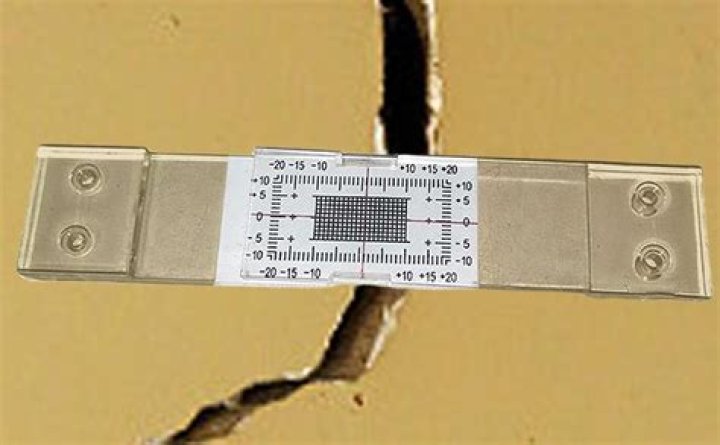

The best method for measuring cracks is by installing a crack monitor or 'tell-tales' (generic name). A crack monitor or tell-tales, is a simple and effective gauge to measure the movement of cracks in brick, concrete, or masonry structures. A crack monitor consists of two overlapping acrylic plates.

What is a crack gauge?

Crack gauges are used to monitor horizontal or vertical crack movement on a flat surface. Crack gauges for corners allow monitoring in corners with 70° to 180° angles.

Gilson Crack Monitors

Why is there a crack in my wall?

Wall cracks are usually a sign of foundation movement but they don't necessarily mean there's structural damage. In other words, a foundation can move slightly and cause a wall crack, but that doesn't mean there's any structural damage requiring a foundation repair.

How is house movement measured?

The best method for measuring crack movements is by use of a crack monitor or 'tell-tale'. There are various types: Crack monitors types. The most popular type is made with two slips of overlapping plastic plates with a red cross on one and a marked grid on the other, see picture above and below.

Which device is used to measure the cracks in the bridges?

Crack Intergrated detector is mainly used for crack width and crack depth measurement of bridges, tunnels, buildings, roads and so on.

What measures are used to control cracking in reinforced concrete?

Measures to Mitigate Cracks in Reinforced Concrete Structures

• Planning the layout of restraining members.
• Structural separation.
• Closure strips, joints, and favorable pouring sequences.
• Released connections; Wall/ slab release, slab-column release, wall joints,
• Addition improved layout of mild reinforcement.

Which sensor is used for the crack detection?

Crack Detection Senser KZCA-A

This sensor is used for easy and accurate detection of cracks developed on the surface of concrete structures due to deterioration. The sensors are previously bonded onto a concrete structure and the wirings are finished.

How can you detect crack?

Other Crack Detection Methods. Several other crack detection methods are in common use, including magnetic particle inspection, dye penetrant inspection and ultrasound. For magnetic particle inspection and dye penetrant inspection many chemical preparations are used. These include solvents, dyes and 'developers'.

Which instrument is used to measure the deformation?

A strainmeter is an instrument used by geophysicists to measure the deformation of the Earth. Linear strainmeters measure the changes in the distance between two points, using either a solid piece of material (over a short distance) or a laser interferometer (over a long distance, up to several hundred meters).

Are small cracks in walls normal?

Problematic wall cracks will typically start at windows, doorways or house corners. Generally, smaller hairline cracks are not cause for concern. These are usually the result of seasonal expansion and contraction of clay soils beneath your house over time, and can be easily patched and re-painted.

What is a shear crack?

There are cracks in concrete beams near the wall or column. The cracks are called shear cracks because they are inclined at 45 degrees with the horizontal. At a distance of d/2 from the support, shear stress is the maximum.

What causes cracks in plaster?

Cracks in the plaster may result due to different reasons: Evaporation if the wall is not protected from sun and wind which can cause map cracking or dry shrinkage cracks. Suction into the walls if the blocks are absorbent and they have not been dampened which might cause drying shrinkage cracks.

Which rays are used for testing cracks of building?

Right Answer is: D

* X Rays are used to determine the cracks in buildings. The wavelength of X Rays ranges from 0.03 to 3 nanometres. They were discovered by W Rontgen.

How ultrasonic sensors are used to find the crack in the pipes?

They work in a pulse-echo mode with a rather high repetition frequency. Straight incidence of the ultrasonic pulses is used to measure the wall thickness and 45º incidence is used for the detection of cracks.

How can ultrasound check for cracks in metal?

The presence of a crack-like defect on the sheet can be detected by either a sudden change in the ultrasonic waveform or by an enhancement in the frequency content of the waveform when the laser beam illuminates directly onto the crack.

What is crack control reinforcement?

Reinforcement is basically dormant until the concrete cracks. After cracking, it becomes active and controls crack widths by restricting crack growth.

What is crack concrete?

Definition: a complete or incomplete separation of either concrete or masonry into two or more parts produced by breaking or fracturing.- ACI Concrete Terminology.
