Where are relays used examples?

Relays were first used in long-distance telegraph circuits as signal repeaters: they refresh the signal coming in from one circuit by transmitting it on another circuit. Relays were used extensively in telephone exchanges and early computers to perform logical operations.

What are the 5 different types of relay?

Types of Relays

• Electromagnetic Relays.
• Latching Relays.
• Electronic Relays.
• Non-Latching Relays.
• Reed Relays.
• High-Voltage Relays.
• Small Signal Relays.
• Time Delay Relays.

What device is a relay?

The term Relay generally refers to a device that provides an electrical connection between two or more points in response to the application of a control signal. The most common and widely used type of electrical relay is the electromechanical relay or EMR.

What is the most common type of relay?

Electromagnetic relay

• Voltage relay. The most common intermediate relay we use is the voltage relay. ...
• Current relay. Current relay is the most commonly used component in power system relay protection. ...
• Magnetic latching relay. Magnetic latching relay is a new type of relay developed in recent years.

What is a Relay? (Interactive!) - Electronics Basics 8

What is relay common?

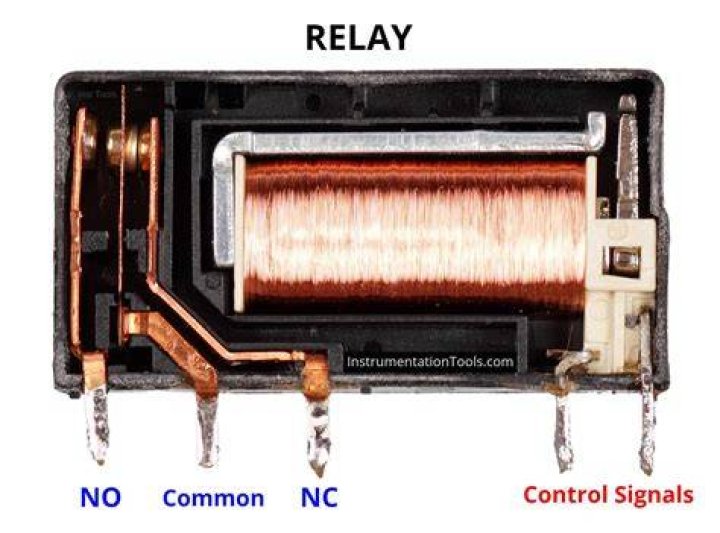

The COM (Common) connection of a relay is the part of the relay that moves. When a relay is off, the COMMON is connected to the NC (Normally Closed). The NO (Normally Open) connection of the relay is not connected until the relay turns on. When the relay turns on, the COMMON move from NC to NO.

What are common use relays?

Relays are normally used in the control panels, manufacturing and building automation to control the power along with switching the smaller current values in a control circuit.

What are the three types of relays?

The three main types of relays are electromechanical, solid-state, and reed.

What is relay Byjus?

So relay is a switch which controls (open and close) circuits electromechanically. The main operation of this device is to make or break contact with the help of a signal without any human involvement in order to switch it ON or OFF. It is mainly used to control a high powered circuit using a low power signal.

What are relays in electronics?

Relays are electrically operated switches that open and close the circuits by receiving electrical signals from outside sources.

Which of the following is not a type of relay?

Explanation: So, The relaxation pole relay is not an example of an induction type relay.

What type of switch relay is?

An electrical relay is an electromagnetically operated electrical switch - an electromechanical switch. A relatively small current is used to create a magnetic field in a coil within a magnetic core and this is used to operate a switch that can control a much larger current.

Which are the two types of relays in sports?

In athletics, the two standard relays are the 4 × 100 metres relay and the 4 × 400 metres relay. 4 × 200, 4 × 800, and 4 × 1500 m relays exist as well, but they are rarer.

Where are relays used in home?

In the home, relays are used in refrigerators, washing machines and dishwashers, heating and air-conditioning controls. Although relays are generally associated with electrical circuitry, there are many other types, such as pneumatic and hydraulic. Input may be electrical and output directly mechanical, or vice versa.

Where are relays found?

A relay is a simple electromechanical switch made up of an electromagnet and a set of contacts. Relays are found hidden in all sorts of devices. In fact, some of the first computers ever built used relays to implement Boolean gates.

What is relay system?

Let's start by talking about what a relay actually is. According to Merriam-Webster, a relay is, “an electromagnetic device for remote or automatic control that is actuated by variation in conditions of an electric circuit and that operates in turn other devices (such as switches) in the same or a different circuit.”

What is relay in physics?

A relay is a special type of switch turned on and off by an electromagnet . The electrical symbol for a relay. Diagram of a simple relay. When a current flows through the coil, an electromagnetic field is set up. The field attracts an iron armature, whose other end pushes the contacts together, completing the circuit.

What is examples for circuit breaker?

Standard Circuit Breakers. Arc Fault Circuit Interrupters, or AFCI Circuit Breakers. Ground Fault Circuit Interrupters, or GFCI Circuit Breakers.

What are the parts of relay?

A relay is nothing but a simple electrical device consisting of eight small parts; a pair of fixed contacts, one movable contact, armature, yoke, electromagnet, control switch, and spring.

What are the types of fuse?

Different Types of Fuses – Constriction, Working & Characteristics

• DC Fuses.
• AC Fuses.
• Cartridge Fuses.
• D – Type Cartridge Fuse.
• HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
• High Voltage Fuses.
• Automotive, Blade Type & Bolted Type Fuses.
• SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.

What are relays in sports?

At the Olympics and other World Athletics-sanctioned tournaments, a relay race is an event where a team of four athletes run equal predetermined distances in a sprint race, each passing a rod-like object called the 'baton' to the next person to continue the race. The last runner in a relay is called the 'anchor'.

What relays are in the Olympics?

Sprint Relays at the Olympics

The 4 x 100m and 4 x 400m for both men and women are the two relay races that are conducted as part of the track and field events during the Olympics. A new addition was the 4x400m mixed relay, first run in 2021.

What are the two types of relay event?

The two most common relay races in track and field are the 4 x 100m and the 4 x 400m races, in which four athletes run 100m and 400m each respectively. A less common relay is the sprint medley relay, usually consisting of four legs run at distances of 400, 200, 200, and 800 meters.

Is relay an inductor?

A relay's coil is just a coil of wire, which is exactly what an inductor is, too. So, a relay coil has some inductance, which means that it is an energy storage device. What happens to all of that energy when the relay is turned off? Well, it goes somewhere.
