Which circuit is used for producing AM signal?
Andrew Walker What circuit produces amplitude modulation?
Amplitude modulation, AM, is one of the most straightforward ways of modulating a radio signal or carrier. It can be achieved in a number of ways, but the simplest uses a single diode rectifier circuit.
What is AM circuit?
Amplitude Modulation, AM Tutorial Includes:
Transmitters that transmit amplitude modulated signals require an AM modulator circuit to produce the required signal. There are many ways in which amplitude modulation can be generated and a variety of circuits that can be used.
How do you make an AM wave?

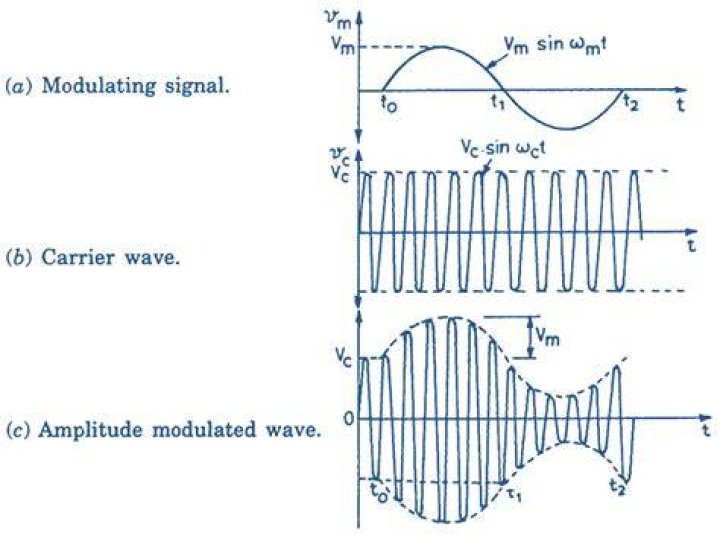

To produce an amplitude modulated wave we need to superimpose this signal with another signal of higher frequency. This signal is the 'Carrier Signal' and differs from one carrier to another.
Which device is used for AM demodulation?
A diode detector is the simplest device used for AM demodulation. A diode detector is built with a diode and a few other components. Modems are used for both modulation and demodulation.
Amplitude Modulation AM Radio Signal Transmission Explained
Why rectifier is used in AM modulation?
Diode / rectifier - serves to pass one half of the received signal over the other. Low pass filter - required to remove the high frequency content that remains in the signal after detection / demodulation.
Which of the following is used for AM detection?
The most common detector used in an AM radio broadcast receiver is: Coherent detector. Envelope detector. Ratio detector.
How AM wave is detected?
The detection of AM radio signals is a diode application. The modulated AM carrier wave is received by the antenna of the radio receiver and is rectified by the action of a detector diode.
What are the frequency components in an AM wave?
Explanation: The frequency components of AM waves are: Carrier frequency (ωc) with amplitude A, Lower sideband (ωc – ωm) having amplitude mA/2 and Upper side band (ωc + ωm) having amplitude mA⁄2 (where m represents modulation index, A is the amplitude of the carrier signal, ωm is the amplitude of the message signal).
How does an AM transmitter work?
The working of AM transmitter can be explained as follows. The audio signal from the output of the microphone is sent to the pre-amplifier, which boosts the level of the modulating signal. The RF oscillator generates the carrier signal. Both the modulating and the carrier signal is sent to AM modulator.
What are the types of AM?
Types of Amplitude Modulation with Advantages and Disadvantages
- Double Sideband Suppressed Carrier(DSB SC) Introduction. ...
- Double side-band full carrier (Traditional Amplitude Modulation) Introduction. ...
- Quadrature Amplitude Modulation (QAM) Block Diagram. ...
- Single sideband (SSB) Bandwidth. ...
- Vestigial sideband (VSB) Bandwidth.
Which of the following can produce an AM signal Mcq?
Which of the following can produce an AM signal? Explanation: Any electronic device with non-linear Vi and Io can be used to produce AM signals. Explanation: AM signal is produced by both balanced and double balanced modulators.
What is a modulation circuit?
A modulator is an electronic circuit that superimposes a low-frequency (information) signal onto a high-frequency (carrier) signal for the purpose of wireless transmission. The reason for this is that higher frequency signals can be received using shorter aerials, which are more practical than longer ones.
What is the AM spectrum?
The AM Spectrum. A spectrum represents the relative amounts of different frequency components in any signal. Its like the display on the graphic-equalizer in your stereo which has leds showing the relative amounts of bass, midrange and treble.
Where is amplitude modulation used?
Amplitude modulation is mostly used in the form of electronic communication. Currently, this technique is used in many areas of communication such as in portable two-way radios; citizens band radio, VHF aircraft radio and in modems for computers.
Which type of diode is used in AM detector?
As the name implies, the main component within the AM diode detector is a semiconductor diode, although in the days of valve / tube technology, diodes using this form of technology were also used.
What is the name of the circuit used to demodulate an SSB signal?
SSB, single sideband is easily demodulated, but requires a little more circuitry than is needed for a basic AM envelope detector. To demodulate SSB transmissions a beat frequency oscillator or carrier insertion oscillator is used along with a mixer or product detector.
Which method is used in amplitude modulation signal demodulation?
The methods considered are the lock-in amplifier, high-bandwidth lock-in amplifier, Lyapunov filter, Kalman filter, RMS-to-DC conversion (moving-average filter and mean absolute deviation computation), peak detector and coherent demodulator.
What is rectifier circuit?
A rectifier is an electronic device that converts an alternating current into a direct current by using one or more P-N junction diodes. A diode behaves as a one-way valve that allows current to flow in a single direction. This process is known as rectification.
What is the use of diode in amplitude modulation?
AM modulation is the process of encoding a information frequency into a carrier frequency. By adding then multiplying the two together, the carrier peak voltage is adjusted by the amplitude of the information signal. This circuit uses a biased diode to provide nonlinear modulation.
What is AM modulator and demodulator?
Demodulation is a key process in the reception of any amplitude modulated signals whether used for broadcast or two way radio communication systems. Demodulation is the process by which the original information bearing signal, i.e. the modulation is extracted from the incoming overall received signal.
Which type of modulation is used in television?
Amplitude and frequency modulation are used in television.
What is used to generate a SSB signal?
One method of producing an SSB signal is to remove one of the sidebands via filtering, leaving only either the upper sideband (USB), the sideband with the higher frequency, or less commonly the lower sideband (LSB), the sideband with the lower frequency.
