What is the maximum efficiency and voltage regulation of transformer?
Andrew Walker What is maximum efficiency of a transformer?
The iron loss (Pi) remains constant at all loads. As the transformer is a static device, hence does not have rotational losses (such as windage and frictional losses). Therefore, a transformer can have efficiency as high as 99 %.
What is maximum voltage regulation?
The regulation is maximum when the load power factor angle is equal to the impedance angle of the transformer. i.e., Equation (1.58) shows the power factor of the load at which voltage regulation is maximum.
What is the condition for maximum efficiency and minimum regulation in transformer?
The transformer will give the maximum efficiency when their copper loss is equal to the iron loss. Copper loss: A loss in a transformer that takes place in the winding resistance of a transformer is known as the copper loss.

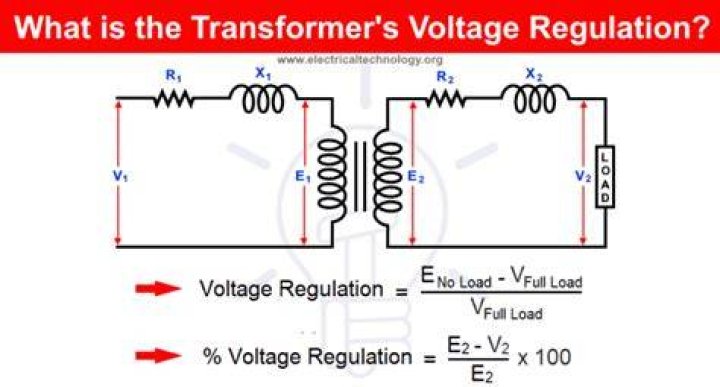

What is the voltage regulation of transformer?
The voltage regulation of the transformer is the percentage change in the output voltage from no-load to full-load. And since power factor is a determining factor in the secondary voltage, power factor influences voltage regulation. This means the voltage regulation of a transformer is a dynamic, load-dependent number.
Voltage Regulation and Efficiency Of Transformer
What is efficiency of a transformer?
The ratio of a transformer's output power to its input power is known as transformer efficiency. The effect of transformer losses is measured by transformer efficiency, which is typically expressed as a percentage. The following formula is used to measure transformer efficiency: η=POUTPIN.
What is regulation and efficiency of a transformer?
The voltage regulation of the transformer is defined as the arithmetical difference in the secondary terminal voltage between no-load (I2=0) and full rated load (I2 = I2fl) at a given power factor with the same value of primary voltage for both rated load and no-load.
What is Max efficiency?
MAX Efficiency™ Transformation Reagent for Algae is a buffer that enhances transformation efficiency for multiple strains of Chlamydomonas species. One of the biggest hurdles in research and development with Chlamydomonas has been the introduction of exogenous DNA into Chlamydomonas strains due to rigid cell walls.
What is regulation of a transformer?
Voltage regulation is the measure of how well a power transformer can maintain constant secondary voltage given a constant primary voltage and wide variance in load current. The lower the percentage (closer to zero), the more stable the secondary voltage and the better the regulation it will provide.
Why efficiency of transformer is less than 100?
While we say that transformers are very efficient, we know that they aren't 100% efficient. There are two main ways that transformers lose power: core losses and copper losses. Core losses are the eddy current losses and hysteresis losses of the core.
What is the condition for maximum regulation of a transformer?
Explanation: In a transformer minimum voltage regulation occurs when the power factor of the load is leading. The voltage regulation of the transformer is zero at a leading power factor load such as a capacitive load.
What is voltage regulation formula?
% Voltage Regulation = (1.06 x P x L x PF) / (LDF x RC x DF) Where: P – Total Power in KVA. L – Total Length of Line from Power Sending to Power Receiving in KM.
What is the condition for maximum efficiency of transformer Mcq?
The maximum efficiency of the transformer occurs when the copper loss is equal to iron loss.
What is efficiency and voltage regulation of a single phase transformer?
So for example, if a single-phase transformer has an open-circuit no-load terminal voltage of 100 volts and the same terminal voltage drops to 95 volts on the application of a connected load, the transformers voltage regulation would therefore be 0.05 or 5%, ((100 – 95)/100)*100%).
What is the ideal value of voltage regulation?
The ideal voltage regulation for any machine should be zero. Zero voltage regulation indicates that there is no difference between its no-load voltage and its full-load voltage.
What is the maximum efficiency of an engine?
Modern gasoline engines have a maximum thermal efficiency of more than 50%, but road legal cars are only about 20% to 35% when used to power a car.
What is the maximum value of efficiency of a heat engine?
Heat engines often operate at around 30% to 50% efficiency, due to practical limitations. It is impossible for heat engines to achieve 100% thermal efficiency () according to the Second law of thermodynamics.
Why efficiency of transformer is high?
Losses in the transformer are very less compared to any other rotating machine, hence efficiency of transformers will be very high. Efficiency will be of the order of 95% to 98%.
What is the condition for zero voltage regulation?
Condition for Zero Voltage Regulation
Zero voltage regulation means, Sending end voltage and Receiving end voltage become equal. This case is also known as the ideal voltage regulation.
What is efficiency in single phase transformer?
The transformer's efficiency, in general, is in the range of 95 – 99 %. For large power transformers with very low losses, the efficiency can be as high as 99.7%. The input and output measurements of a transformer are not done under loaded conditions as the wattmeter readings inevitably suffer errors of 1 – 2%.
What is the maximum efficiency at unity PF load?
It also depends on load power factor and has the maximum value at a power factor of unity. The transformer on which load is variable (like distribution transformer) is designed to give maximum efficiency at about 75% of full load.
What are the losses efficiency and regulation of a single phase transformer?
Just like any other electrical machine, efficiency of a transformer can be defined as the output power divided by the input power. That is efficiency = output / input . Transformers are the most highly efficient electrical devices. Most of the transformers have full load efficiency between 95% to 98.5% .
What is full load in transformer?
By full load is meant the load (obviously, on secondary) which would make transformer transfer it's rated power from primary to secondary. For example when 50 kVA is on full load, it would be transferring 50 kVA from primary to secondary.
Under which condition the voltage regulation of a transformer is negative?
Negative voltage regulation can only occur with leading power factor loads; however, not all leading loads will cause negative voltage regulation. Negative voltage regulation means the voltage increases with the load. This is a very undesirable condition because it can lead to an unstable condition.
