What is the highest voltage you can charge a 12-volt battery?

The peak charging voltage for Gel batteries is 2.3 to 2.36 volts per cell, and for a 12 volt charger this works out to 13.8 to 14.2 volts, which is lower than a wet or AGM type battery needs for a full charge.

What voltage should I charge a 12-volt battery?

Though not fully charged, a car battery is considered charged at 12.4 volts or higher. It is considered discharged at 12.39 volts or less.

Is 15 volts too high for a 12-volt battery?

If it still reads below 12.6, it's wise to head straight for home or seek inspection/repair, as the battery can provide only a few hours of vehicle use without being recharged. Higher than 15 volts indicates a fault in the charging system's voltage regulator or related circuits.

What is the best voltage for charging a 12V lead acid battery?

To obtain maximum battery service life and capacity, along with acceptable recharge time and economy, constant voltage-current limited charging is best. To charge a sealed lead acid battery, a DC voltage between 2.30 volts per cell (float) and 2.45 volts per cell (fast) is applied to the terminals of the battery.

How Many Volts Is A 12 Volt Battery Fully Charged?

Can you overcharge a 12-volt battery?

A 12V lead-acid battery will not be damaged by overcharge if the voltage is kept low enough to avoid electrolysis, and the charging current is kept below 0.2C (5 times less than the Ah capacity). Some types of lead-acid battery can handle higher voltage that others.

Can you overcharge a lead acid battery?

Overcharging a lead acid battery can be just as harmful as undercharging it. If workers leave the battery in a continuously charging state for long periods of time, corrosion of the positive battery plates can occur. Lead acid batteries can also get very hot while charging.

Is 14.7 volts too high?

14.8 would start to be a worry (there might be liquid or corrosion on the battery) and 15 volts would be a real concern, but 14.6 is fine. Less than 14.3 would be a "weak" alternator or regulator. Much less than 14.2 at a fast idle is bad wiring, bad alternator or regulator, or a bad connection or fuse link.

Is 15.5 volts too high?

Normal range should be about 13.8-14.4... 14.8 is a little high and 15.5 is definitely too high.

Is 16 volts too high?

For some alternators, it's normal to see as low as 13 volts. For some, a constant 13.6 volts is an indication of a problem. For others, it's normal to see as high as 16 volts for long stretches. Still, it's perfectly normal for others to see the alternator not charge at all intermittently.

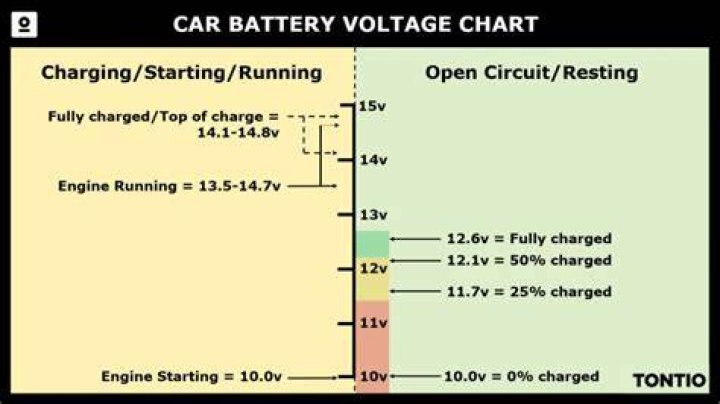

How do you tell if a 12V battery is fully charged?

Check the voltage of your battery using the voltmeter to help determine your next course of action. 12.6V volts or above - Your battery is healthy and fully charged.

What should a 12-volt battery read on a multimeter?

Measure and Analyze

When the probes touch the terminals while the car is off and the battery is resting, the multimeter display should show a reading of 12.2 to 12.6 volts (full charge). This voltage range means the battery is in good condition for starting the vehicle.

Can I charge 12V battery with 24v charger?

No, strictly NO ! Any good charger has both current (for deep discharged condition) and voltage( at the end of charging) limits set inside. Therefore obvious that 24v system can't charge 12 v battery.

What is Max battery voltage?

For example, almost all lithium polymer batteries are 3.7V or 4.2V batteries. What this means is that the maximum voltage of the cell is 4.2v and that the "nominal" (average) voltage is 3.7V. As the battery is used, the voltage will drop lower and lower until the minimum which is around 3.0V.

What voltage is a fully charged 12V AGM battery?

Voltage on a fully charged battery will read 2.12 to 2.15 volts per cell, or 12.7 volts for a 12 volt battery. At 50% the reading will be 2.03 VPC (Volts Per Cell), and at 0% will be 1.75 VPC or less. Specific gravity will be about 1.265 for a fully charged cell, and 1.13 or less for a totally discharged cell.

Is 14.7 volts overcharging?

The reading should be between 14.2 and 14.7 volts as the alternator starts recharging the battery. Turn on the headlights, radio, and hazards. The reading should still be higher than the base battery voltage, ideally above 14 volts.

What causes high charging voltage?

A stuck closed voltage regulator typically causes high charging system voltage. Voltage regulators adjust output voltage according to the demands of the electrical system. In late-model vehicles, this is accomplished through a sensing circuit that informs the PCM of battery temperature and electrical system demands.

What is normal charging voltage?

The "normal" charging voltage on a typical application might be 13.9 to 15.1 volts at 77 degrees F. But at 20 degrees F. below zero, the charging voltage might jump as high as 14.9 to 15.8 volts for a short period of time. On a hot engine on a hot day, the normal charging voltage might drop to 13.5 to 14.3 volts.

Is 14.5 V too high?

Your line of thinking is correct in that a good alternator should be charging in the 14.1-14.5vdc as long as there's no major load on it. If there is, the voltage will be down some from this. When it starts continuously charging higher than this is when you start having issues.

Are 14.4 volts overcharging?

Intermittent 14.4 volts will not overcharge a lead acid battery in cool conditions.

Is 14.4 volts good for a car battery?

The move to settle the top voltage in the 14.4 range was more dictated by the computers and electronics used in the newer cars keeping the voltage in a closer range. So with all this said it would indicate that 14.4 volts is an acceptable voltage for your battery.

How do you know if a battery is overcharged?

When the vehicle is started, without the introduction of a load (the lights or air conditioner), the volts will usually rise to an average of 14 volts. If the multimeter reads at more than 14.8 volts, then this can be considered as overcharging.

Can you put too much distilled water in a battery?

Don't Over Water

While a battery is charging, the density of the electrolyte solution will increase. If too much water was added before charging, the electrolyte levels will expand and cause the battery to overflow and damage the battery.

Can you leave a lead acid battery charging overnight?

It is possible to charge a lead acid battery for an entire night. There is no risk of fire if it is over charged. Leaving these batteries on an overnight charge will not harm them as the charging process will be controlled by the charger. You don't have to worry if you're talking about a mobile battery.

What amp should I charge my 12v battery?

A 12-volt automotive battery, for instance, takes a while to charge. In fact, fast charging for this kind of battery is not recommended. 10 amps are the recommended current.
