What's the difference between toughness and ductility?

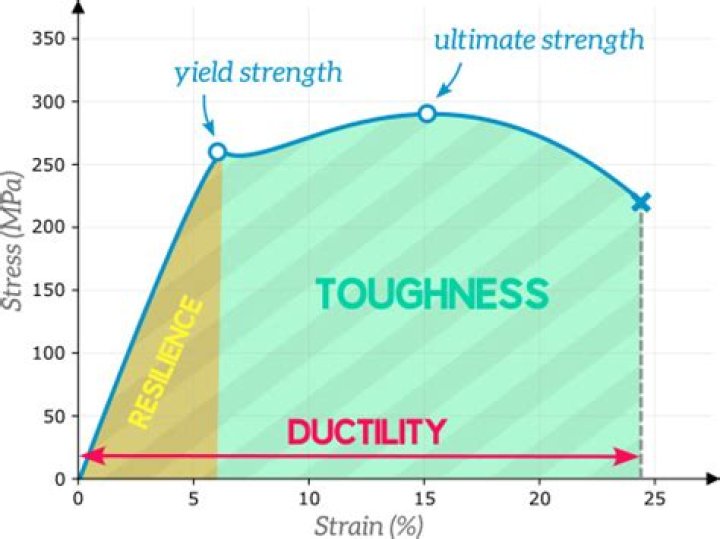

The key to toughness is a good combination of strength and ductility. A material with high strength and high ductility will have more toughness than a material with low strength and high ductility. Therefore, one way to measure toughness is by calculating the area under the stress strain curve from a tensile test.

What is the difference between toughness and malleability?

Toughness is the resistance to breaking. When steel is very hard it is brittle and breaks easily. If the steel is malleable (slightly bendable) it is harder to break because it will yield slightly before breaking.

What is the relationship between hardness and ductility?

However, hardness can be measured much more readily than can tensile strength, there is a very close relationship between hardness and tensile strength, and between hardness and ductility. Usually, the harder the steel, the higher its tensile strength, and the lower its ductility.

What is called toughness?

Toughness is related to the area under the stress–strain curve. In order to be tough, a material must be both strong and ductile. For example, brittle materials (like ceramics) that are strong but with limited ductility are not tough; conversely, very ductile materials with low strengths are also not tough.

Understanding Material Strength, Ductility and Toughness

What is ductility of a material?

Ductility is the ability of a material to sustain a large permanent deformation under a tensile load up to the point of fracture, or the relative ability of a material to be stretched plastically at room temperature without fracturing.

What is difference between toughness and hardness?

Toughness is a bulk property whereas hardness is a surface property. Hardness is related to scratches, abrasion and erosion whereas toughness is related to fracture, compression strength or elongation strength. A tough material can be hard as well but its not true the other way round.

What is toughness of a material?

Toughness is the resistance of a material to being broken in two, by a crack running across it - this is called "fracture" and absorbs energy. The amount of energy absorbed during fracture depends on the size of the component which is broken in two.

What is the relationship between hardness and toughness?

Hardness and toughness are properties related to materials which are generally used in material engineering. Together, they define the strength of a given material. These two properties are inversely proportional to each other. While hardness increases, toughness decreases.

What is difference between ductility and malleability?

The difference between ductility and malleability is that ductility is the result of the application of tensile stress on a metal and the malleability is the compressive stress applied to the metal.

What is ductility with example?

Ductility is the physical property of a material associated with the ability to be hammered thin or stretched into wire without breaking. A ductile substance can be drawn into a wire. Examples: Most metals are good examples of ductile materials, including gold, silver, copper, erbium, terbium, and samarium.

What is ductility in chemistry?

ductility, Capacity of a material to deform permanently (e.g., stretch, bend, or spread) in response to stress. Most common steels, for example, are quite ductile and hence can accommodate local stress concentrations.

What is the difference between ductility and brittleness?

Ductility is the ability of the solid material to deform plastically under loading while Brittleness is when the material has the tendency to not deform plastically under tensile loading, but instead to fracture / break. Brittle solids can present ductile behaviours, and ductile solids can present ductile behaviours…

What is difference between strength and toughness?

Whereas strength (or hardness) is invariably a stress representing a material's resistance to non-recoverable (for example, plastic) deformation (at least in ductile materials), toughness is a material's resistance to fracture and, as such, is measured as the energy needed to cause fracture.

Whats the difference between toughness and strength?

Toughness is the ability of material to resist cracking or breaking under stress. Strength is the ability of material to withstand great tension or compression or other forces.

What is the difference between strength and toughness in metals?

Strength is a measure of the stress that a crack-free metal can bear before deforming or breaking under a single applied load. Fracture toughness is a measure of the amount of energy required to fracture a material that contains a crack.

Is glass hard or tough?

Glass has a hardness of 6.5 on the Mohs scale of mineral hardness.

Why are metals tough?

Metals are tough for the same reason as they are ductile: the positive ions can slide past each other while still remaining together. So, instead of breaking apart, they change shape, resulting in increased toughness.

What material has the highest toughness?

The World's Strongest Stuff

• Diamond. Unmatched in its ability to resist being scratched, this much-loved gemstone ranks the highest in terms of hardness. ...
• Graphene. ...
• Spider silk. ...
• Carbon/carbon composite. ...
• Silicon carbide. ...
• Nickel-based super-alloys.

What is the toughness of metal?

Toughness is a measure of how much energy a metal can absorb before rupturing or fracturing. It also relates to the ability of the metal to bend without breaking.

Why is gold ductile?

Metallic gold has a crystal structure that is a face-centered cubic FCC. This crystal structure is responsible for the very high ductility of gold, as FCC lattices are mainly suited for enabling the movement of dislocations in the lattice. Such a dislocation movement is important to accomplish high ductility.

What is the difference between tensile strength and ductility?

within equations, is the maximum stress that a material can withstand while being stretched or pulled before breaking. In brittle materials the ultimate tensile strength is close to the yield point, whereas in ductile materials the ultimate tensile strength can be higher.

Why is metal ductile?

Metals are described as malleable (can be beaten into sheets) and ductile (can be pulled out into wires). This is because of the ability of the atoms to roll over each other into new positions without breaking the metallic bond.

What are some differences between brittle tough and ductile metals?

The main difference between ductile and brittle is that ductile substances are can be drawn out into thin wires whereas brittle substances are hard but liable to break easily.
