What is scab defect?
Jackson Reed What causes scabs in casting?

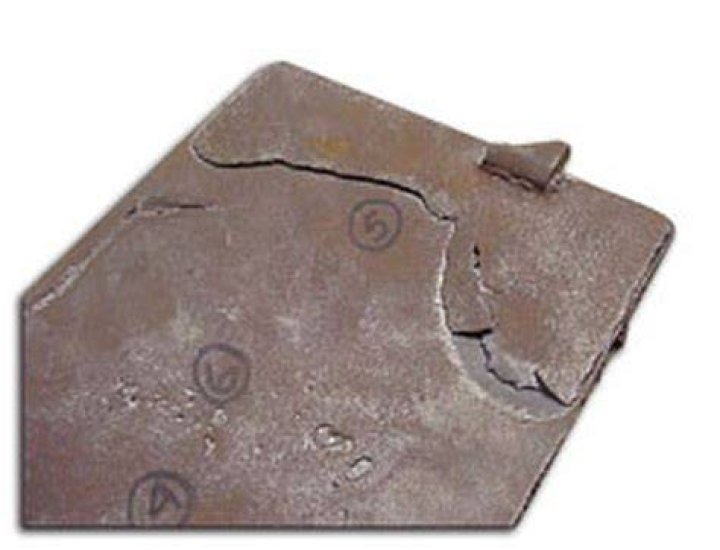

Scab is sand casting defect caused due to improper ramming of moulding sand. Scab refers to the rough, thin layer of a metal, protruding above the casting surface, on top of a thin layer of sand.
How do you prevent scab failure?
Measures for prevention:
- Increasing the wet tensile strength of the mold material mixture by. increased binder content (bentonite) ...
- Reducing occurring compressive stresses by: fast and even mold filling. ...
- Reduction of the casting temperature and shortening of the casting time.
What are the types of casting defects?
21 Casting Defects and How to Prevent Them in Your Products
- Pinholes.
- Subsurface blowhole.
- Open holes.
- Open shrinkage.
- Closed shrinkage.
- Cuts and washes.
- Fusion.
What is cold shut defect?
A cold shut occurs when the molten material has begun to solidify before fully filling the mould. When the molten metal begins solidifying before the mould has been completely filled, it can form a seam that hasn't merged correctly. This results in severe weak spots in the casting.
What's Better for Wounds: Scabs or Bandages?
What is rat tail in casting?
Explanation: Rat tail is caused by the compression failure of the skin of the mould cavity because of the excessive heat in the molten metal, this high heat causes sand to expand and the mould wall moves backwards and when the walls give away the casting surface they have the marked lines.
What is porosity defect?
Porosity. Porosity is the most common casting defect, which can be caused by problems in the running system. To eliminate these problems, we use bespoke running systems that are tailored to each individual customer requirement. Trapped air and gasses can also cause porosity, either on the surface or inside the casting.
What is hot tear defect?
A hot tear is a defect that occurs during solidification of the casting. Hot tears are internal or external ragged discontinuities or crack on the casting surface, caused by rapid contraction occurring immediately after the metal solidified.
What does sprue mean in casting?
A sprue is a large diameter channel through which the material enters the mould. A runner is a smaller diameter channel that directs the molten metal is directed towards the individual part (particularly common when casting multiple parts at once).
What is shrinkage porosity?
Shrinkage porosity defects are cavities inside components which can cause material weakening and, if positioned on surface, can worsen aesthetic quality and corrosion resistance.
How casting defects are identified?
Foundry personnel have a tendency to identify a defect based on cause like slag defect or sand inclusions. While this is an acceptable method, after the diagnosis is done, the International Atlas of Casting Defects recommends that unknown defects be classified based on appearance rather than cause.
What causes hot tears in casting?
A hot tear is a discontinuity that occurs during the solidification stage of a casting operation, when the material being cast is part solid and part liquid. A hot tear can occur because as a material solidifies, it will generally want to contract.
What is Chaplet in Moulding process?
Chaplet A small metal insert or spacer used in molds to provide core support during the casting process. Charge A given weight of metal introduced into the furnace. Chill A metal insert in the sand mold used to produce local chilling and equalize rate of solidification throughout the casting.
What is slag inclusion in casting?
Slag Inclusion: This defect is caused when the molten metal containing slag particles is poured in the mould cavity and it gets solidifies.
What is the use of chills in casting?
A chill is an object used to promote solidification in a specific portion of a metal casting mold. Normally the metal in the mould cools at a certain rate relative to thickness of the casting.
What is undercut in a weld?
In welding, undercutting is when the weld reduces the cross-sectional thickness of the base metal. This type of defect reduces the strength of the weld and workpieces.
What is crack in welding?
Weld cracking refers to a depression left at the termination of a weld where the weld pool is left unfilled. Most forms of weld cracking result from the shrinkage strains that occur as the weld metal cools. If the contraction is restricted, the strains will induce residual stresses that cause cracking.
What is slag in welding process?
Slag by definition, purpose and chemistry
The American Welding Society (AWS) defines slag as “a nonmetallic byproduct of the mutualdissolution of flux with nonmetallic impurities in welding and brazing processes.” In short, it is the hardened layer left on the top of weld made during flux-cored welding (FCAW).
What is shrinkage casting?
Shrinkage is an internal or external change in volume that occurs during a phase change in a metal's transition from a liquid state to a solid state at the exposed surface. This phenomenon occurs in processes like casting and concrete solidification.
What is metallurgical defect?
Metallurgical defects
Hot tears, also known as hot cracking, are failures in the casting that occur as the casting cools. This happens because the metal is weak when it is hot and the residual stresses in the material can cause the casting to fail as it cools. Proper mould design prevents this type of defect.
Why are sharp corners avoided in casting?
Sharp corners are avoided to reduce the stress consideration. Give fillet wherever the sharp corners are present. The cast iron is much stronger in compression than in tension. Hence, design the parts such that stressed areas of the parts are under compression rather than under tension.
What is lamination defect?
Laminations - Metal defects with separation or weakness generally aligned parallel to the worked surface of the metal. May be the result of pipe, blisters, seams, inclusions or segregation elongated and made directional by working. Lamination defects may also occur in metal-powder compacts.
What is Misrun defect in casting?
A misrun occurs when the molten metal freezes before it reaches all parts of the mould cavity – which leaves a completely unfilled part of the mould. Both problems can lead to weak spots in castings, so it is important that we prevent these issues from occurring during production.
What is lap defect in forging?
Lap — A surface irregularity appearing as a fissure or opening, caused by the folding over of hot metal, fins or sharp corners and by subsequent rolling or forging (but not welding) of these into the surface.
