What is meant by loss angle?

[′lȯs ‚aŋ·gəl] (electromagnetism) A measure of the power loss in an inductor or a capacitor, equal to the amount by which the angle between the phasors denoting voltage and current across the inductor or capacitor differs from 90°.

What is loss in capacitor?

Dielectric conduction losses refer to losses that are caused by the actual movement of charge across a dielectric material. These losses tend to be largest at high temperatures and low frequencies. In most capacitors, dielectric conduction losses are strongly dependent on applied voltage.

How do you find a loss angle?

The dissipation factor can be calculated using: D = tan δ = cot θ = 1 / (2π f RpCp) , where δ is the loss angle, θ is the phase angle, f is the frequency, Rp is the equivalent parallel resistance, and Cp is the equivalent parallel capacitance.

What is loss tangent of capacitor?

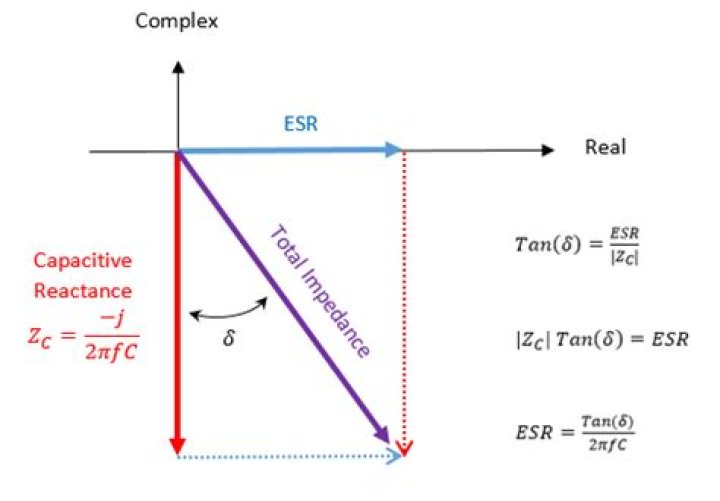

A real capacitor has a lumped element model of a lossless ideal capacitor in series with an equivalent series resistance (ESR). The loss tangent is defined by the angle between the capacitor's impedance vector and the negative reactive axis.

#DielectricLoss#Lossangle#Losstangent#HighVoltageTesting#HighVoltageEngineering#HVE Dielectric Loss

What is loss tangent angle?

Loss tangent

The loss tangent is then defined as the ratio (or angle in a complex plane) of the lossy reaction to the electric field E in the curl equation to the lossless reaction: . For dielectrics with small loss, this angle is ≪ 1 and tan δ ≈ 0.

What is loss tangent and loss angle?

In PCBs, Loss tangent (tan (δ)) is the measure of signal loss due to the inherent dissipation of electromagnetic energy in the substrate of the printed circuit board. It is a dimensionless quantity and is also referred to as Loss Factor, Tan δ, Dissipation factor and Loss angle.

What is loss angle in dielectric material?

the phase difference between the electric field vector and the electric displacement in a dielectric material. This phase difference is caused by energy losses in the dielectric (see).

How do you calculate capacitor loss?

Effective series resistance, or "ESR" is the value of resistance in series with a perfect capacitor that produces the phase angle error. It can be calculated by dividing D by ωC (2 pi F C). In our example, . 0087/(6.28*5000*.

What is dielectric loss in capacitor?

dielectric loss, loss of energy that goes into heating a dielectric material in a varying electric field. For example, a capacitor incorporated in an alternating-current circuit is alternately charged and discharged each half cycle.

What is dielectric loss formula?

Given the tan δ and capacitance of the cable, the dielectric loss is easily calculated: Wd=ωCU02tanδ

What is loss tangent formula?

tanδ≜σωϵ The quantity tanδ is referred to as the loss tangent. Note that loss tangent is zero for a lossless (σ≡0) material, and increases with increasing loss. Thus, loss tangent provides an alternative way to quantify the effect of loss on the electromagnetic field within a material.

What is dissipation factor of capacitor?

Dissipation factor is the tangent of the loss angle of the insulating material. In an ideal capacitor without any dielectric losses, the insulation current is exactly 90° leading according to the applied voltage.

What is meant by loss angle and dielectric loss?

Dielectric Loss refers to the Loss of energy that goes into heating a Dielectric material in a varying, electric field. It tends to depend mainly on the Dielectric material and the frequency. Dielectric Loss is measured using the Loss of tangent which is also commonly referred to as tan delta (tan δ).

What is tan delta of capacitor?

Tan delta is the ratio between the resistive current and capacitive current. Simplified circuit depicting a cable as 2 elements (resistor and capacitor). If we consider the resistance of an ideal cable to be infinite, then the total current will be purely capacitive and 90° phase shifted to the applied voltage.

What causes dielectric loss?

Dielectric loss is especially high around the relaxation or resonance frequencies of the polarisation mechanisms as the polarisation lags behind the applied field, causing an interaction between the field and the dielectric's polarisation that results in heating.

What is capacitor formula?

The governing equation for capacitor design is: C = εA/d, In this equation, C is capacitance; ε is permittivity, a term for how well dielectric material stores an electric field; A is the parallel plate area; and d is the distance between the two conductive plates.

What is the formula to calculate ESR?

Since the current is known, the ESR value is calculated by dividing the measured voltage by the current. The results are then displayed on the meter readout. ESR tests can be performed when the capacitor is in the circuit or out of the circuit.

Why is there no power loss in capacitors?

With an ideal capacitor you can store energy in it by charging it. But you can get that energy back by discharging the capacitor. The energy you put in is equal to the energy you get back. There is no loss of energy.

Why it is called loss tangent?

Loss tangent (tan(δ)) is a measure of signal loss as the signal propagates down the transmission line. Material datasheets and PCB manufacturers commonly refer to this signal loss as the dissipation factor (Df).

How can we reduce dielectric loss?

One method to achieve low-loss dielectric material is through a change in epoxy throughout the glass weave. Hybrid stack-ups are also effective at reducing dielectric losses. Blending FR4 and low-loss dielectrics can produce a hybrid stacking up solution.

What is dielectric constant and dielectric loss?

Dielectric constant (ε_r): The ratio of the absolute permittivity of the medium (ε) and the permittivity of free space (ε₀). Dielectric loss: When a dielectric material is subjected to the A.C voltage, the electric energy is absorbed by the material and is dissipated in the form of heat.

Why is tangent loss important?

In short, the dielectric loss tangent will limit the useful length of a transmission line on a PCB as it causes the signal level to decrease during propagation.

What is DF and DK?

The term "Dk" refers specifically to the real part of the dielectric constant (i.e., the refractive index), while the term "Df" refers to the imaginary part. Note that the imaginary part of the dielectric constant only determines losses, while the real and imaginary parts collectively determine dispersion.

What is loss factor tan delta?

Loss tangent (tan(δ)) (also referred to as dissipation factor (Df) by many PCB manufacturers) is a measure of signal attenuation as the signal propagates down the transmission line. This attenuation is the result of electromagnetic wave absorption in the dielectric material and is commonly known as dielectric loss.
