What is ideal transformer Equation?
Daniel Davis What is the ideal transformer?

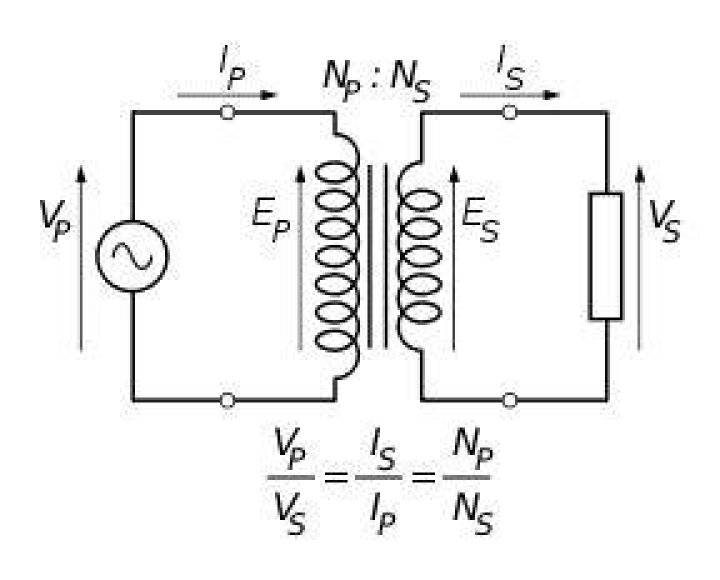

An ideal transformer is an imaginary transformer which has the following characteristics − The primary and secondary windings have negligible (or zero) resistance. No leakage flux, i.e., whole of the flux is confined to the magnetic circuit.
What is ideal transformer ratio?
In an ideal transformer turn ratio is 2 : 3.
Why we use the equation of ideal transformer for calculation?
Transformers normally have high efficiency, so this formula is a reasonable approximation. If the voltage is increased, then the current is decreased by the same factor. The impedance in one circuit is transformed by the square of the turns ratio.
What is the emf equation of a transformer?
Therefore, RMS value of emf per turn = 1.11 x 4f Φm = 4.44f Φm. This is called the emf equation of transformer, which shows, emf / number of turns is same for both primary and secondary winding. For an ideal transformer on no load, E1 = V1 and E2 = V2 .
Transformers Physics Problems - Voltage, Current & Power Calculations - Electromagnetic Induction
Which emf is induced in an ideal transformer?
Due to primary winding being purely inductive, this current lags 90° behind induced emf E1. This current is called magnetizing current of the transformer Iμ. This magnetizing current Iμ produces alternating magnetic flux Φ. This flux Φ gets linked with the secondary winding and emf E2 gets induced by mutual induction.
What are ideal transformer properties?
An ideal transformer a transformer which has no copper losses, no iron loss in core and no leakage flux. In other words, an ideal transformer gives output power exactly equal to the input power.
What is the power factor of ideal transformer?
So power factor of an ideal transformer is exactly that of its load. The power factor of an ideal coil is 0 since phase difference between the current and the applied voltage is - π/2.
What is ideal transformer PDF?
Definition: A transformer that doesn't have any losses like copper and core is known as an ideal transformer. In this transformer, the output power is equivalent to the input power. The efficiency of this transformer is 100%, which means there is no loss of power within the transformer.
What is ideal transformer on no load?
In case of Ideal Transformer, no load primary current (I0) will be equal to magnetizing current (Iµ) of the transformer. We assumed there is no core losses and copper loss, So I0 =Iµ .
What is the hysteresis loss in ideal transformer?
Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.
What are the assumptions for the ideal transformer?
The ideal transformer model is based on two assumptions. result is that all flux is confined to the core. that power in must equal the power out. The sinusoidal currents, i1(t) and i2(t), flow in the primary coil and secondary coils, the coils having N1 and N2 turns, respectively.
What is N in emf equation?
N = rotational speed of armature in revolutions per min. ( rpm) Now, Average emf generated per conductor is given by dΦ/dt (Volts) ... eq.
What is a transformer explain its working principle and derive its EMF equation?
Working Principle of a transformer
The induced emf in the primary winding is nearly equal and opposite to the applied voltage V1. Assuming leakage flux to be negligible, almost the flux produced in primary winding links with the secondary winding. Hence, an emf e2 is induced in the secondary winding. e2 = −N2dφdt.
What is the transformer efficiency?
Transformer Efficiency
The efficiencies of power transformers normally vary from 97 to 99 percent. The power supplied to the load plus resistive, eddy current, hysteresis, and flux losses must equal the input power.
What is the value of inductance in an ideal transformer?
In an ideal transformer the winding inductance is infinite, so it has infinite reactance and any current flowing through it will generate infinite voltage.
What is hysteresis loss formula?
The equation for hysteresis loss is given as: Pb = η * Bmaxn * f * V. Pb = hysteresis loss (W) η = Steinmetz hysteresis coefficient, depending on material (J/m3)
What is eddy current formula?
Next, the eddy current flowing in each ring is obtained by solving a complex matrix equation of the form [X] [I] = [V] where X is the impedance matrix, I is the eddy current matrix, and V is the induced voltage matrix.
What is voltage regulation formula?
% Voltage Regulation = (1.06 x P x L x PF) / (LDF x RC x DF) Where: P – Total Power in KVA. L – Total Length of Line from Power Sending to Power Receiving in KM.
What is no load and full load?
Essentially, a load receives power from a circuit while a source delivers power to a circuit. So a zero load receives zero power while a full load receives full power (whatever that is in a particular context). Since either an open circuit or short circuit receives zero power, neither of these is a full load.
What is full load and no load in transformer?
A transformer is said to be on “no-load” when its secondary side winding is open circuited, in other words, nothing is attached and the transformer loading is zero.
What is iron loss in transformer?
Definition of iron loss
: the loss of available energy by hysteresis and eddy currents in an electromagnetic apparatus (as a transformer) — compare copper loss.
What is eddy current loss in transformer?
Eddy current loss in the transformer is basically I2R loss present in the core due to the production of eddy current in the core. Eddy current losses are directly proportional to the conductivity of core.
