What is Hall effect and Hall potential?
Daniel Hoffman What is Hall effect explain?

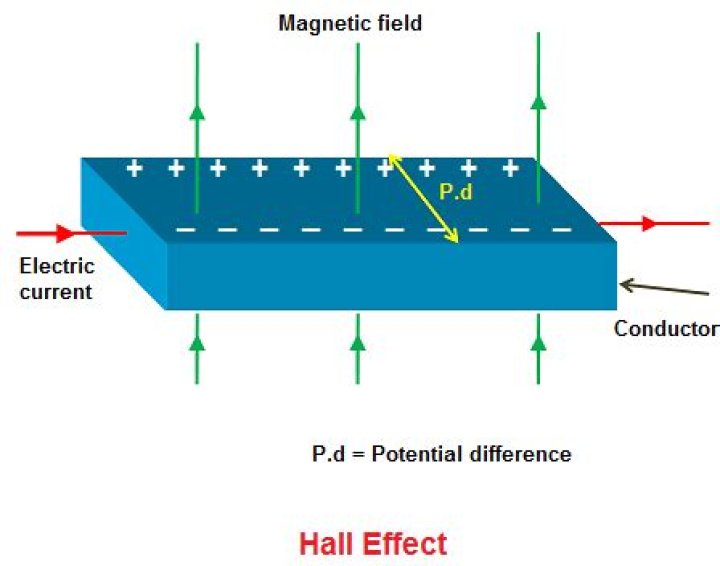

The Hall effect is when a magnetic field is applied at right angles to the current flow in a thin film where an electric field is generated, which is mutually perpendicular to the current and the magnetic field and which is directly proportional to the product of the current density and the magnetic induction.
What is Hall effect and Hall effect?
Hall effect is defined as the production of a voltage difference across an electrical conductor which is transverse to an electric current and with respect to an applied magnetic field it is perpendicular to the current. Edwin Hall discovered this effect in the year 1879.
Is Hall effect and Hall voltage same?
The Hall effect is the production of a voltage difference (the Hall voltage) across an electrical conductor that is transverse to an electric current in the conductor and to an applied magnetic field perpendicular to the current. It was discovered by Edwin Hall in 1879.
What is the formula of Hall potential?
When calculating the Hall voltage, we need to know the current through the material, the magnetic field, the length, the number of charge carriers, and the area. Since all of these are given, the Hall voltage is calculated as: v=IBlneA=(100A)(1.5T)(1.0×10−2m)(5.9×1028/m3)(1.6×10−19C)(2.0×10−5m2)=7.9×10−6V.
The Hall Effect and Hall emf
What is Hall potential?
Hall potential or voltage is the no-load voltage developed across a semiconductor plate due to the Hall Effect, when a specified value of control current flows in the presence of a particular magnetic field.
What does Hall effect measure?
The Hall effect can be used to measure the average drift velocity of the charge carriers by mechanically moving the Hall probe at different speeds until the Hall voltage disappears, showing that the charge carriers are now not moving with respect to the magnetic field.
Is Hall voltage positive or negative?
These charges are also deflected upward by the magnetic field. Thus, the upper edge of the ribbon becomes negatively charged, whilst the lower edge becomes positively charged. It follows that the Hall voltage (i.e., the potential difference between the upper and lower edges of the ribbon) is negative in this case.
What do you mean by Hall voltage?
The potential difference produced across an electrical conductor when an external magnetic field is applied perpendicular to the current through the conductor.
Can Hall coefficient zero?
Hall coefficient depends on the hole and electron concentration, and also on the mobility of carriers. In an insulator, the gap between the conduction band and the valence band is very high. As conductivity zero in insulator then mobility also almost zero. So, the hall coefficient will be zero almost for the insulator.
Why Hall effect is used?
The Hall effect can be used also to measure the density of current carriers, their freedom of movement, or mobility, as well as to detect the presence of a current on a magnetic field.
What is Meissner effect?
Meissner effect, the expulsion of a magnetic field from the interior of a material that is in the process of becoming a superconductor, that is, losing its resistance to the flow of electrical currents when cooled below a certain temperature, called the transition temperature, usually close to absolute zero.
What is Hall effect PDF?
HALL EFFECT: When a current carrying conductor is placed in a magnetic field perpendicular to the flow of current then it is observed an electric field is created perpendicular to both flow of charge carriers and magnetic field, this field is know as Hall field and corresponding effect is called Hall effect.
What is Hall effect experiment?
The Hall Effect experiment (conducted by Edwin Hall in 1879) determines the sign of the charge carriers in current flow. A current can be thought of as a negative charge moving in one direction (Figure 1) or as a positive charge moving in the opposite direction (Figure 2).
Why is Hall voltage developed?
When magnetic field is applied perpendicular to a current-carrying conductor, then a voltage is developed in the material perpendicular to both magnetic field and current in the conductor. This effect is known as Hall effect and the voltage developed is known as Hall voltage (V H).
What is the unit of Hall voltage?
Abstract. The two most widely used units for the Hall coefficients are SI units, m3/A-sec = m3/C, and the hybrid unit Ohm-cm/G (which combines the practical quantities volt and amp with the cgs quantities centimeter and Gauss).
What is magnetic field formula?
Magnetic field magnitude = \frac{(permeability of free space) (current magnitude)}{2\pi (distance)} B = \frac{\mu_{0}}{2\pi r}
Why do we use semiconductor in Hall effect?
When a magnetic field is applied perpendicular to the direction of flow of charge carriers, in a semiconductor material, charge carriers experience a force in transverse to the direction of applied magnetic field and carriers flow. This effect is known as Hall effect.
What is a gauss meter?
A Gauss Meter can measure the direction and the intensity of small (relatively) magnetic fields. For larger magnetic fields, a Tesla Meter, is used, which is similar, but it measures in larger Tesla units. A Gauss Meter comprises a gauss probe/sensor, the meter and a cable connecting both.
Is Hall effect true for metals?
In most conductors, such as metals, the Hall effect is very small because the density of conduction in electrons is very large and the drift speed (charged particle erraticism) is extremely small, even for the highest obtainable current densities.
What is Hall effect find Hall voltage?
Hall effect. Hall voltage (VH) is developed along y-axis with electric field intensity EH. v = Drift velocity. This is the required expression for Hall voltage.
What is Hall effect PPT?
DISCOVERY Edwin H Hall. When a current-carrying conductor is placed into a magnetic field, a voltage will be generated perpendicular to both the current and the field. When a perpendicular magnetic field is present. A Lorentz force is exerted on the electron.
What is the SI unit of mobility?
The SI unit of velocity is m/s, and the SI unit of electric field is V/m. Therefore the SI unit of mobility is (m/s)/(V/m) = m2/(V⋅s).
What is drift current and diffusion current?
Drift current. Diffusion current = the movement caused by variation in the carrier concentration. Drift current = the movement caused by electric fields. Direction of the diffusion current depends on the slope of the carrier concentration. Direction of the drift current is always in the direction of the electric field.
What is Mason effect?
The Meissner effect (or Meissner–Ochsenfeld effect) is the expulsion of a magnetic field from a superconductor during its transition to the superconducting state when it is cooled below the critical temperature. This expulsion will repel a nearby magnet.
