What is eddy current loss formula?
Daniel Hoffman What is the formula of hysteresis loss?
The hysteresis loss per second is given by the equation[20]: Hysteresis loss, Ph= (Bmax)1.6f V joules per second (or) watts. Where, f: supply frequency in Hz, V: volume of core in cubic meters, η‟: hysteresis coefficient, Bmax: peak value of flux density in the core.
What is eddy current and its losses?
The current circulates within the material. And, the circulating current caused by induced EMF is called Eddy Currents. The heat loss caused by eddy currents in the magnetic material is called eddy current loss. The circulating current caused by induced EMF is Eddy Currents.
How do you calculate hysteresis loss and eddy current loss?
Hysteresis Loss and Eddy Current Loss
- Areaofhysteresisloop∝B1.6max.
- ⟹Hysteresisenergyloss=ηB1.6max.
- Hysteresispowerloss,Ph=ηB1.6maxfVWatts.
- Hysteresispowerloss,Ph=ηB1.6maxfV.

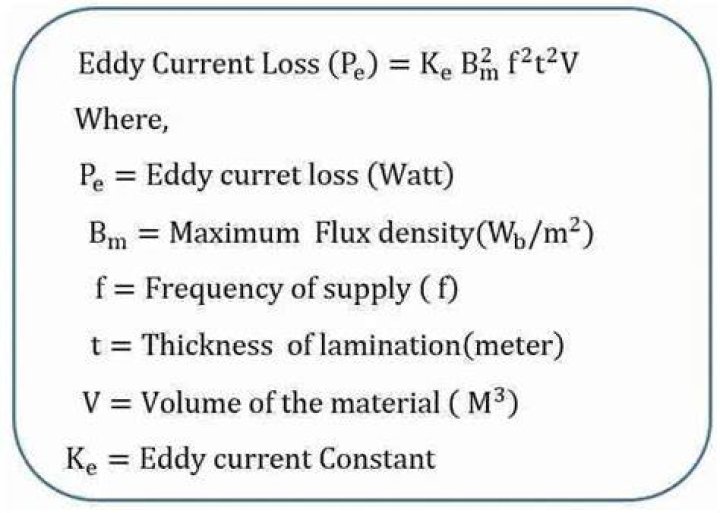

- Eddycurrentpowerloss,Pe=KeB2maxf2t2VWatts.
- ∵Eddycurrentloss,Pe∝B2maxf2.
What is eddy current loss how this loss can be reduced?
Eddy current magnitude can be reduced by designing the core as a set of thin sheets or laminations, in parallel to the magnetic field. Each sheet must be insulated from its neighbours with a thin coating of varnish or oxide film. By laminating the core, the area of each section and hence the induced EMF is reduced.
What is Eddy Current and Eddy current loss?
What is eddy current?
Eddy currents are loops of electrical current induced within conductors by a changing magnetic field in the conductor according to Faraday's law of induction. Eddy currents flow in closed loops within conductors, in planes perpendicular to the magnetic field.
What is the difference between eddy current loss and hysteresis loss?
Difference between hysteresis loss and eddy current loss
Hysteresis loss is caused due to molecular friction in a ferromagnetic material, under alternating magnetic field. Eddy current loss us caused due to the induction of eddy current in the core and conductors held in magnetic field.
What is hysteresis current loss?
Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.
What is core loss in transformer formula?
Iron loss or core loss (Pi)
Iron loss in transformers is the combination of hysteresis loss (Ph) and eddy current loss (Pe). This type of loss mainly occurs in the magnetic core of the transformer, and depends on magnetic properties of core material.
How do you calculate eddy current losses in transformer?
Thus the eddy current loss per unit volume is ;
- Proportional to the square of the frequency.
- Proportional to the square of the flux density.
- Proportional to the square of the thickness of the laminated sheet.
- Inversely proportional to the resistivity of the material.
What are the 3 types of losses in transformer?
Types of Losses in a Transformer
- Iron Losses in a Transformer. Iron losses mainly occur through the alternating flux within the transformer's core. ...
- Copper Loss. Copper losses occur because of the Ohmic resistance in the windings of the transformer. ...
- Stray Loss. ...
- Dielectric Loss. ...
- Efficiency of Transformer.
Where does eddy current loss occur?
Eddy current loss in the transformer is basically I2R loss present in the core due to the production of eddy current in the core. Eddy current losses are directly proportional to the conductivity of core.
What is meant by hysteresis and hysteresis loss?
Definition: The work done by the magnetising force against the internal friction of the molecules of the magnet, produces heat. This energy which is wasted in the form of heat due to hysteresis is called Hysteresis Loss.
What is BH curve?
The B-H curve or magnetisation curve is the graph plotted between magnetic flux density (B) and magnetising force (H). The B-H curve indicates the manner in which the magnetic flux density varies with the change in magnetising force.
What is magnetic loss?
The term magnetic losses generically refers to the various energy dissipation mechanisms taking place when a magnetic material is subject to a time-varying external field H(t).
What are coil losses?
Definition: Power loss in a transformer due to the flow of current. These losses are present only when the transformer is serving a load. Load losses vary by the square of the current magnitude.
Is hysteresis same as BH curve?
A hysteresis loop (also known as a hysteresis curve) is a four-quadrant graph that shows the relationship between the induced magnetic flux density B and the magnetizing force H. It is often referred to as the B-H loop. From hysteresis loops, we can determine a number of magnetic properties about a material.
What is B and H in hysteresis loop?
Hysteresis is characterized as a lag of magnetic flux density (B) behind the magnetic field strength (H).
Is eddy current loss depends on frequency?
Detailed Solution. Thus, we can say that eddy current loss depends on frequency, flux density and thickness of the core.
What is core and copper loss?
Copper losses are an undesirable transfer of energy, as are core losses, which result from induced currents in adjacent components. The term is applied regardless of whether the windings are made of copper or another conductor, such as aluminium. Hence the term winding loss is often preferred.
How do you calculate iron loss?
To calculate total iron losses, we need to add up all element losses. Where W h i is hysteresis loss of element i; W e i is eddy current loss of element i; W a i is anomalous current loss of element i; and ne is number of elements.
Why do eddy current losses occur?
Eddy current losses are the result of Farady's law, which states that, “Any change in the environment of a coil of wire will cause a voltage to be induced in the coil, regardless of how the magnetic change is produced.” Thus, when a motor core is rotated in a magnetic field, a voltage, or EMF, is induced in the coils.
What is eddy current PDF?
Abstract. Eddy currents (also called Foucault's currents) are loops of electrical current induced within conductors by a changing magnetic field in the conductor according to Faraday's law of induction. Also, circulating currents (eddy currents) are induced in bulk pieces of metal moving through a magnetic field.
