What causes a crater in welding?

A crater pipe forms during the final solidified weld pool and is often associated with some gas porosity. This imperfection results from shrinkage on weld pool solidification. Consequently, conditions which exaggerate the liquid to solid volume change will promote its formation.

How do welders prevent crater cracks?

Finally, to prevent crater cracks – cracking that occurs if you stop welding prior to completing a pass on a weld joint – use a backfill technique to provide greater thickness to the crater. This technique entails backing up slightly to fill in the area at the end of the weld prior to extinguishing the arc.

What is Crater filling in welding?

A definition of a crater in welding is an inadequate amount of molten metal used to fill the cavity, leaving a thin section. The inadequate amount of molten metal gives a crater the appearance of a circular excavated hole. Stopping the welding process prematurely is the usual cause of a crater.

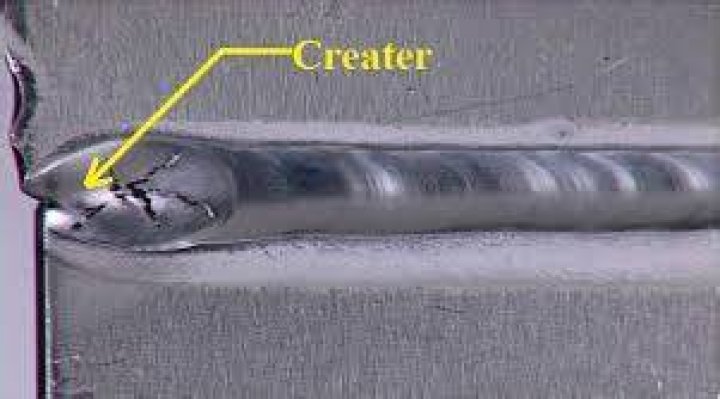

What are the cracks in craters called?

Crater crack

Crater cracks occur when a welding arc is broken, a crater will form if adequate molten metal is available to fill the arc cavity.

What Is A Weld Crater?

What is arc crater?

ARC CRATER - Depression formed when the arc melts the base metal. 4. ARC LENGTH - Distance between the electrode and the base metal. In SMAW, this distance should be approximately equal to the electrode diameter.

How many types of welding cracks are there?

We can divide weld metal cracks into three types: Transverse, longitudinal and crater cracks. Transverse weld metal cracks are perpendicular to the direction of the weld. This type of crack is more common in welds that have a high degree of restraint.

What is ripple in welding?

The weld ripples are formed after the molten pool is solidified, which are often observed in the pulsed laser welding. The surface rippling is not just a surface phenomenon and is generally associated with the melting, recoil pressure induced by the vaporization, the phase interactions and the resolidification process.

What is undercut in a weld?

In welding, undercutting is when the weld reduces the cross-sectional thickness of the base metal. This type of defect reduces the strength of the weld and workpieces.

What causes cracks in steel?

Cracking usually occurs at temperatures at or near normal ambient. It is caused by the diffusion of hydrogen to the highly stressed, hardened part of the weldment.

Can you weld over a cracked weld?

It is important that the cracked material is gouged or machined away sufficiently to permit a full penetration repair weld to be made, with no traces of crack left behind and no new significant defects introduced. In theory, a good welded repair should last as long as the original joint under the same loading spectrum.

What are 5 welding defects?

Following are the types of welding defects:

• Porosity and Blowholes.
• Undercut.
• Weld crack.
• Incomplete fusion.
• Slag inclusion.
• Incomplete penetration.
• Spatter.
• Distortion.

What are the two types of welding defects?

Welding defects are broadly classified into two categories, and those are: External welding defects (Defects occur on the upper surface of the welded work). Internal welding defects (Defects occur under the surface of the welded work).

What is longitudinal crack in welding?

Centerline Crack

Also know as longitudinal crack, a centerline crack will typically extend the length of the weld. This type of crack is most often caused by an improper width-to-depth ratio, low melting point of tramp elements in the base material, and a concave weld surface.

What is solidification cracking?

Hot cracking (also known as solidification cracking) is the formation process of shrinkage cracks during the solidification period of a weld metal.

What are the 7 common welding defects?

How to Identify the 7 Most Dangerous Welding Defects

• Types of Welding Defects.
• Slag Inclusions.
• Porosity.
• Undercut.
• Weld Crack.
• Incomplete Fusion.
• Incomplete Penetration.
• Spatter.

What is weld porosity?

Porosity is the presence of cavities in the weld metal caused by the freezing in of gas released from the weld pool as it solidifies. The porosity can take several forms: distributed. surface breaking pores.

What is bead in welding?

What Is A Weld Bead? A weld bead is created by depositing a filler material into a joint between two pieces of metal. As you melt a filler material into the workpiece, how you move the torch will impact how you advance the puddle and the type of bead you leave in the joint.

How many times can a weld be repaired?

limited any repair to 3 times. That was for carbon steel, low alloys, and stainless. This was based upon what we considered good metallurgical and welding practice.

Can I Reweld a weld?

yes you can weld over an existing weld... but lots of factors come in play if you want it to be successful.

What are the types of cracks?

Six Common Types of Cracks in your Concrete

• Plastic shrinkage concrete cracks. ...
• Expansion concrete cracks.
• Heaving concrete cracks.
• Settling concrete cracks. ...
• Concrete cracks caused by overloading the slab. ...
• Concrete cracks caused by premature drying.

What is cause of crack?

Cracking is a common damage caused by stress in a material that can easily be exaggerated by other factors, including corrosion, fatigue, high pressure, and material of construction.
