What is core loss of transformer?
Jackson Reed What is core loss in transformer formula?
Iron loss or core loss (Pi)
Iron loss in transformers is the combination of hysteresis loss (Ph) and eddy current loss (Pe). This type of loss mainly occurs in the magnetic core of the transformer, and depends on magnetic properties of core material.
What causes core loss in transformer?
What is the core loss in Transformer? Core loss, also known as Iron Loss, is ultimately caused by the alternating magnetic flux in the core. Furthermore, iron loss is split into hysteresis and eddy current losses.
What is core loss and copper loss in transformer?
Copper loss is the term often given to heat produced by electrical currents in the conductors of transformer windings, or other electrical devices. Copper losses are an undesirable transfer of energy, as are core losses, which result from induced currents in adjacent components.
What is core or iron losses in transformer?
Iron loss: This is defined as the loss that is caused due to the alternating flux in the core of the transformer. As the loss occurs in the core, therefore the iron loss is also known as core loss. There are two types of iron losses, and they are eddy current loss and hysteresis loss.
Losses in Transformer(Easy Understanding with Animation)
What is copper and iron loss?
The copper loss and iron loss in the transformer are types of electrical losses that take place in the core and winding of the transformer. The iron loss occurs due to variation of flux density in the transformer core and copper loss occurs due to I2R in the transformer winding.
What is eddy current loss?
If an eddy current of magnitude I flows through a core path of resistance r, it will dissipate energy in the form of heat according to the power equation power = I2R. Since this represents energy being expended for no useful purpose, it is considered as an eddy current loss, sometimes called iron loss.
What is meant by copper loss?
Copper loss is the term used to describe the energy dissipated by resistance in the wire used to wind a coil. In 99.9% of cases this wire will be made of copper, whose resistivity at 20°C is about 1.73 × 10–8 Ω m.
What are the hysteresis and core losses?
Total core loss is actually the combination of two types of loss. Here's the difference between hysteresis loss and eddy current loss: Hysteresis loss in a magnetic material depends upon the reversal of the magnetism. Eddy current loss occurs because of interaction between the conductor and the magnetic field.
Does core loss depend on voltage?
Where Kh = Constant which depends on the volume and quality of core material. x = Steinmetz's constant whose value varies from 1.5 to 2.5. Thus we see that Core Loss depend on Voltage as well as Frequency of Supply.
How do you reduce core loss in a transformer?
Due to the constantly changing magnetic fields, there is a loss of current in the core. One easy solution for how to reduce eddy current losses in the transformer is to make the core by stacking thin sheets together. This will decrease the eddy current and hence the losses made by it too.
How do you measure core loss?
To measure core loss, use the MR8847A's powerful waveform calculation function to calculate the magnetic flux density B and the magnetic field H. * In addition, you can use the waveform calculation function to calculate core loss from the primary-side current and secondary-side voltage.
What are the two components of the core loss?
They are sometimes described as 'core losses'. The two loss mechanisms are hysteresis and eddy current losses.
What is core loss component?
The two main components of the core loss are hysteresis loss and eddy-current loss.
Is core loss constant in a transformer?
Core loss, which is also referred as iron loss, consists of hysteresis loss and eddy current loss. These two losses are constant when the transformer is charged. That means the amount of these losses does not depend upon the condition of secondary load of the transformer.
What are the types of losses?
The four main types of loss are resistive loss, eddy currents, hysteresis, and flux loss.
- Resistive Loss. ...
- Eddy Current Loss. ...
- Hysteresis Loss. ...
- Flux Loss. ...
- Transformer Efficiency.

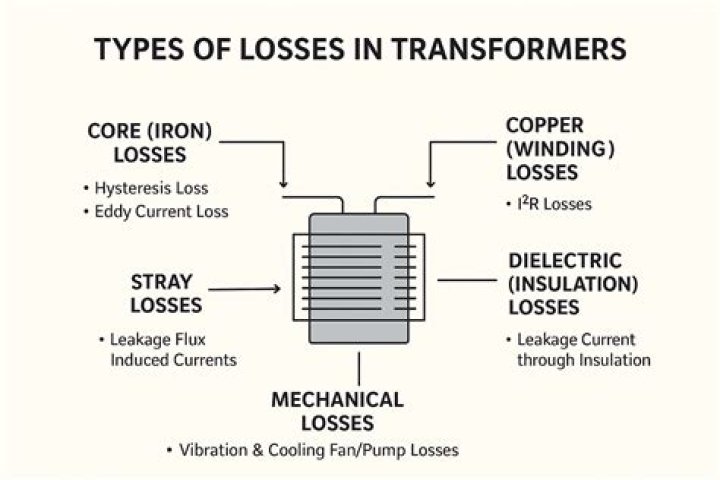

What are the 3 types of losses in transformer?
Types of Losses in a Transformer
- Iron Losses in a Transformer. Iron losses mainly occur through the alternating flux within the transformer's core. ...
- Copper Loss. Copper losses occur because of the Ohmic resistance in the windings of the transformer. ...
- Stray Loss. ...
- Dielectric Loss. ...
- Efficiency of Transformer.
What is hysteresis loss?
The hysteresis loss instead is the energy entrapped in magnetic materials exposed to a magnetic field in the form of residual magnetization—a typical behavior of FM materials—which is then lost as heat during the demagnetization step.
What is hysteresis loss in transformer?
Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.
What is dielectric loss in transformer?
Dielectric Loss. Dielectric losses are caused by the insulating material and insulation such as transformer oil. It rarely occurs as compared to the core and copper losses. If the transformer oil or insulation capacity gets deteriorated, the dielectric loss increases.
What is stray loss in transformer?
The stray losses / circulating current losses are the source of heat generation in the transformer and ultimately paper insulation aged or loses its insulation property or strength & failed during course of its service rendering the short of life expectancy.
What causes copper loss in a transformer?
The copper loss in the transformer is proportional to the square of the current flowing through the winding. When the load on the transformer is increased the copper loss varies because of the increased current and increased resistance caused by temperature rise.
What is hysteresis law?
Hysteresis occurs in a system that involves a magnetic field. Hysteresis is the common property of ferromagnetic substances. Generally, when the magnetization of ferromagnetic materials lags behind the magnetic field this effect can be described as the hysteresis effect.
What is magnetic loss?
The term magnetic losses generically refers to the various energy dissipation mechanisms taking place when a magnetic material is subject to a time-varying external field H(t).
What is hysteresis loop and hysteresis loss?
The area of the hysteresis loop shows the energy required to complete a full cycle of magnetizing and de-magnetizing, and the area of the loop represents the energy lost during this process. A hysteresis loop shows the relationship between the induced magnetic flux density (B) and the magnetizing force (H).
