What is copper loss in a transformer?
Daniel Hoffman What is iron loss and copper loss in transformer?
The copper loss and iron loss in the transformer are types of electrical losses that take place in the core and winding of the transformer. The iron loss occurs due to variation of flux density in the transformer core and copper loss occurs due to I2R in the transformer winding.
What causes copper loss in a transformer?
The copper loss in the transformer is proportional to the square of the current flowing through the winding. When the load on the transformer is increased the copper loss varies because of the increased current and increased resistance caused by temperature rise.
What are the core and copper losses of a transformer?
There are two main ways that transformers lose power: core losses and copper losses. Core losses are the eddy current losses and hysteresis losses of the core. They are measured using the open-circuit test. Copper losses are the I 2R losses of the primary and secondary windings.

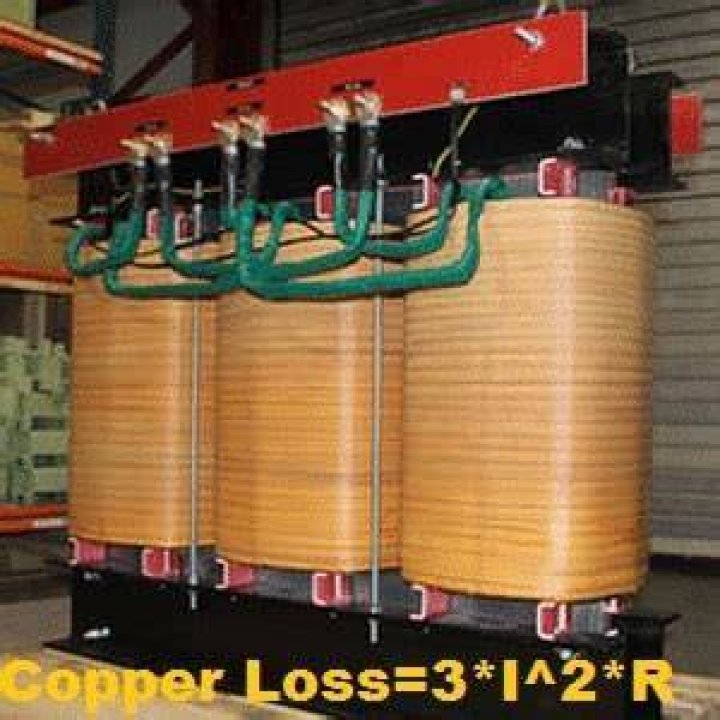

What is the formula of copper loss in transformer?
Copper Loss = IP2 RP + IS2 R
Hysteresis loss is that energy lost by reversing the magnetic field in the core as the magnetizing AC rises and falls and reverses direction. Eddy current loss is a result of induced currents circulating in the core. The efficiency of a transformer can be calculated using below Equations.
TRANSFORMER LOSSES! TYPES OF TRANSFORMER LOSSES! HYSTERISIS LOSS! EDDY CURRENT LOSS! COPPER LOSS
What are copper losses?
Copper loss: This is defined as the heat that is produced by the electrical currents in the conductors of transformer windings. It is an undesirable transfer of energy resulting from the induced currents in the adjacent components.
What is the use of copper losses?
Copper loss is the term often given to heat produced by electrical currents in the conductors of transformer windings, or other electrical devices. Copper losses are an undesirable transfer of energy, as are core losses, which result from induced currents in adjacent components.
What is a transformer loss?
Transformer losses are produced by the electrical current flowing in the coils and the magnetic field alternating in the core. The losses associated with the coils are called the load losses, while the losses produced in the core are called no-load losses.
What is the core loss?
Definition of core loss
: energy wasted by hysteresis and eddy currents in a magnetic core (as of an armature or transformer)
What are transformer losses and types?
A transformer's output power is always slightly less than the transformer's input power. These power losses end up as heat that must be removed from the transformer. The four main types of loss are resistive loss, eddy currents, hysteresis, and flux loss.
Why do transformers lose?
There are different kinds of losses that will be occurred in the transformer such as copper, hysteresis, eddy, iron, stray & dielectric. The copper loss commonly occurs due to the resistance in the transformer winding whereas hysteresis losses will be occurred due to the magnetization change within the core.
How is copper loss reduced?
Copper losses are due to the resistance of the wire in the primary and secondary windings and the current flowing through them. These losses can be reduced by using wire with large cross-sectional area in the manufacturing of the coils.
What is meant by iron losses?
Definition of iron loss
: the loss of available energy by hysteresis and eddy currents in an electromagnetic apparatus (as a transformer) — compare copper loss.
What is eddy current loss?
If an eddy current of magnitude I flows through a core path of resistance r, it will dissipate energy in the form of heat according to the power equation power = I2R. Since this represents energy being expended for no useful purpose, it is considered as an eddy current loss, sometimes called iron loss.
What causes core loss?
There are two main causes for the core losses: ohmic or Joule heating generated by the eddy currents, induced in the conductive media by the alternating magnetic field, and the losses caused in the ferromagnetic materials by the cyclic reversal of the magnetization and proportional to the area of the hysteresis loop.
How do you reduce core loss?
Core losses majorly include Hysteresis loss and eddy current loss. Eddy Current loss can be reduced by increasing the number of laminations. The laminations provide small gaps between the plates. As it is easier for magnetic flux to flow through iron than air or oil, stray flux that can cause core losses is minimized.
Why core loss is constant in a transformer?
The reason behind core loss being constant is that hysteresis loss and eddy currentloss both are dependent on the magnetic properties of the material used in the construction and design of the core of the transformer.
What are the 3 types of losses in transformer?
Types of Losses in a Transformer
- Iron Losses in a Transformer. Iron losses mainly occur through the alternating flux within the transformer's core. ...
- Copper Loss. Copper losses occur because of the Ohmic resistance in the windings of the transformer. ...
- Stray Loss. ...
- Dielectric Loss. ...
- Efficiency of Transformer.
What cause the dielectric losses and copper losses?
Dielectric losses are caused by the insulating material and insulation such as transformer oil. It rarely occurs as compared to the core and copper losses. If the transformer oil or insulation capacity gets deteriorated, the dielectric loss increases.
What are the different types of losses?
Different kinds of loss
- Loss of a close friend.
- Death of a partner.
- Death of a classmate or colleague.
- Serious illness of a loved one.
- Relationship breakup.
- Death of a family member.
How do you find copper losses?
Copper loss calculation formula:
Copper loss Pc in Watts is equal to the resistance R(Ω) in ohms times of the square of the current I(A) in Amps.
What is hysteresis loss in transformer?
Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.
How are transformer losses removed?
Methods to reduce the energy loss in transformer:
- Use of low resistance wire for the winding of the coil.
- Heat loss due to eddy current can be reduced by the lamination of the iron core.
- The heat generated can be kept to a minimum by using a magnetic material which has a low hysteresis loss.
Is copper loss affected by power factor?
Copper loss is not affected by power factor.
How can transformer losses be improved?
- Use a better grade of core material, one with lower hysteresis and eddy current losses.
- If using an iron core, further reduce eddy current loss by using thinner laminations.
- Use larger cross section copper wire for the windings. ...
- Keep the transformer as cool as possible.
