What is coercivity and retentivity?

Retentivity: The property of the magnetic material to retain magnetism even in the absence of the magnetizing field is known as retentivity or remanence. Coercivity: The magnetizing field (H) needed to demagnetize the magnetic material completely is known as its coercivity.

What is coercivity Class 12?

In the case of a ferromagnetic substance, when the applied magnetic field is increased in the reverse direction, then at some point H_c the substance completely loses its magnetization. This point is known as coercivity.

What is coercivity in magnetism Class 12?

The value of H at B=0 is called retentivity or remanence. Next reverse the current and slowly increase the same. This is represented by bc. The value of H at c(B=0) is called coercivity.

What is a coercivity in physics?

Coercivity, also called the magnetic coercivity, coercive field or coercive force, is a measure of the ability of a ferromagnetic material to withstand an external magnetic field without becoming demagnetized. Coercivity is usually measured in oersted or ampere/meter units and is denoted H_C.

Coercivity & retentivity (Permanent & electromagnets) | Magnetism & matter | Physics | Khan Academy

What is retentivity property?

Solution : The property of a material to retain the magnetism even after the removal of the magnetising field is known as retentivity.

What is retentivity unit?

Retentivity is the ability of a material to resist or to retain magnetic field and it's measured by the total strength of a magnetic field that is left in a material when an inducing field is removed from the material. The units in which retentivity of a material is measured is weber per square meter or Weberm−2.

What is retentivity and coercivity of a permanent magnet?

Retentivity(R): It is a measure of the remaining magnetization when the driving field(H)is dropped to zero. Coercivity(C): It is a measure of the reverse field needed to drive the magnetization into zero after being saturated.

What is retentivity and coercivity of soft iron?

Steel has more coercivity and less retentivity compared to soft iron. Coercivity is the intensity of the applied magnetic field required to reduce the magnetization of a given material to zero. Retentivity is the capacity of an object to retain magnetism after the action of the magnetizing force has ceased.

What is retentivity formula?

Solution : According to equation `(B)/( mu_0) - M = i_(f) = H`, in curve ` B-H` when H=0`, the value of B obtain is known as retentivity.

What is retentivity of a magnetic material?

Retentivity - A measure of the residual flux density corresponding to the saturation induction of a magnetic material. In other words, it is a material's ability to retain a certain amount of residual magnetic field when the magnetizing force is removed after achieving saturation.

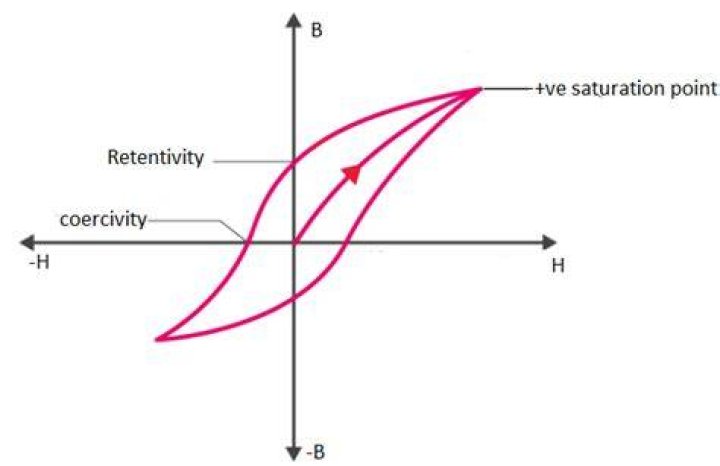

What is retentivity in magnetic hysteresis?

Retentivity. The amount of magnetization present when the external magnetizing field is removed is known as retentivity. It is a material's ability to retain a certain amount of magnetic property while an external magnetizing field is removed. The value of B at point b in the hysteresis loop.

What is the unit of coercivity?

Units of coercivity are A/m (or kA/m, SI) and oersted, Oe (or kOe, cgs), where 1 Oe = 4•π•kA/m = 12.566•kA/m. • Hci = iHc = mHc = Hcj = HcJ = intrinsic coercivity, a measure of a magnet's resistance to demagnetization.

What is meant by hysteresis Class 12?

Hysteresis - The condition in which the magnetic induction 'B' lags behind the magnetizing field H is called hysteresis. This happens when an external magnetic field is applied to a ferromagnet such as iron and the atomic dipoles are aligned with it.

What is susceptibility and retentivity?

Magnetic retentivity determines the magnetism left in the material after the magnetizing field has been switched off. Electromagnets are operated in conditions requiring fast reversal of polarity, so high retentivity is undesirable. Susceptibility determines to what extent the material responds to the applied field.

How do you find coercivity?

We can measure Coercivity by measuring the external magnetic field required to reduce the material's magnetic field to zero. This is the amount of negative (H) required to reduce (B) to zero, so it is the crossing of the horizontal axis to the left of the vertical axis.

What is coercivity of soft iron?

2285 65 JIPMERJIPMER 2019Magnetism and Matter Report Error.

What is low retentivity?

The retentivity of a material is its capacity to remain magnetized after the external magnetizing field has ceased to exist.A material with high retentivity (i.e. iron) will keep some magnetic properties, it will become a permanent magnet, whereas a material with low or no retentivity will not keep the magnetic ...

Why coercivity of steel is greater than iron?

The coercivity of soft iron is less than that of the coercivity of the steel. Energy loss in soft iron is less than energy loss in steel because of the small area of soft iron ( B - H ) curve.

Which magnetic material has high retentivity?

Ferromagnets with high retentivity and coercivity are used as permanent magnets (hard magnets), while the ones with low retentivity & coercivity (soft magnets) are used as cores in electromagnets. But all ferromagnets have high permeability.

What is BH curve?

The B-H curve or magnetisation curve is the graph plotted between magnetic flux density (B) and magnetising force (H). The B-H curve indicates the manner in which the magnetic flux density varies with the change in magnetising force.

Does permanent magnets have high coercivity?

Permanent magnets have high values of retentivity and coercivity.

What is coercivity force in magnetic materials?

Definition of coercive force

: the opposing magnetic intensity that must be applied to a magnetized material to remove the residual magnetism.

Which has high retentivity?

The steel retains the magnetic field effect longer than the aluminum, steel, nickel and soft iron and therefore steel has the highest retentivity of the substance among the following given substances. The correct option for this problem is option B.

What is Lenz law in physics?

Lenz's law, in electromagnetism, statement that an induced electric current flows in a direction such that the current opposes the change that induced it. This law was deduced in 1834 by the Russian physicist Heinrich Friedrich Emil Lenz (1804–65).
