What is cavitation and what are its causes How will you prevent the cavitation in hydraulic machines?
Andrew Walker Hydraulic Turbine
Large modern water turbines operate at mechanical efficiencies greater than 90%.
› wiki › Water_turbine
What is cavitation and what causes cavitation?
Cavitation happens when bubbles, or voids, form within a fluid because the pressure quickly drops below the vapor pressure. When the bubbles experience higher pressures they collapse, creating small shockwaves that, over time, damage parts. When these pressure waves punch tiny holes into parts, it's called pitting.
What causes cavitation in hydraulics?
High vacuum creates vapor bubbles within the oil, which are carried to the discharge (pressure) side. These bubbles then collapse, thus cavitation. This type of hydraulic pump failure is caused by poor plumbing, flow restrictions, or high oil viscosity; however, the leading cause of cavitation is poor plumbing.
What is cavitation in hydraulic machines?
Cavitation is a common flow phenomenon observed in hydraulic turbines that can cause significant implications in the life cycle of the machine. Associated noise, vibration, and material erosion can degrade the performance of the turbine and hinder its reliable operation.
What are the causes and effects of cavitation in a hydraulic turbines?
Cavitation is formation of vapor bubbles in the liquid flowing through any Hydraulic Turbine. Cavitation occurs when the static pressure of the liquid falls below its vapor pressure. Cavitation is most likely to occur near the fast moving blades of the turbines and in the exit region of the turbines.
Cavitation - Easily explained!
What is cavitation its effects and its prevention?
Cavitation is the phenomenon of formation of a vapour bubble in flowing liquid where the pressure falls below vapour pressure and sudden collapsing of this bubble at high-pressure region. Cavitation usually the result of rapid changes of pressure of the liquid.
How is cavitation prevented?
The best way to prevent cavitation is to select the right pump for the application. Cavitation increases as pump head falls or as capacity increases, so selecting the correct pump to maintain a positive margin of NPSHa above NPSHr is the best first move.
How can we prevent cavitation in hydraulic system?
How to Prevent Hydraulic Pump Cavitation by Supercharging the Pump Inlet
- Loud noise often described as a grinding or “marbles” in the pump.
- Loss of flow capacity (bubbles are now taking up space where liquid should be)

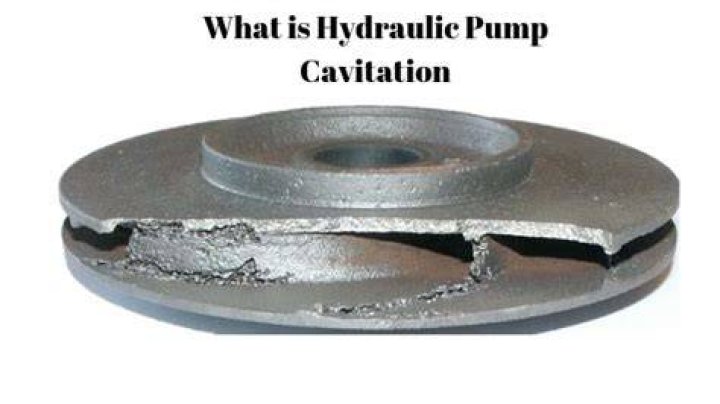

- Pitting damage to parts as material is removed by the collapsing bubbles (see image below)
What is meant by cavitation?
cavitation, formation of vapour bubbles within a liquid at low-pressure regions that occur in places where the liquid has been accelerated to high velocities, as in the operation of centrifugal pumps, water turbines, and marine propellers.
What are the two causes of cavitation?
Common causes of discharge cavitation include: Clogged filters. Pipe blockage on the discharge side.
What causes cavitation bubbles?
The occurrence of inertial cavitation is triggered by the decrease of the local pressure below the liquid saturation pressure, which causes bubbles to form, owing to an abrupt flow acceleration or recirculating motion.
What is cavitation and aeration?
Aeration simply refers to a presence of air in a liquid. Vaporous cavitation is not related to aeration. Again, the bubbles created by this process are simply a liquid-to-vapor phase change—they do not contain any air. Gaseous cavitation bubbles, however, may contain air.
What is cavitation how can it be avoided in reaction turbines?
The cavitation in reaction turbines can be avoided to a great extent by using the following methods: (a) By installing the turbine below the tail race level. (b) By using stainless steel runner of the turbine. (c) By providing highly polished blades to the runner.
How does cavitation cause damage?
Cavitation is a potentially damaging effect that occurs when the pressure of a liquid drops below its saturated vapour pressure. Under these conditions it forms bubbles of vapour within the fluid. If the pressure is increased again, the bubbles implode, releasing damaging shockwaves.
What is cavitation in mechanical engineering?
Cavitation is the formation of vapor phase cavities, or bubbles, within a liquid, usually due to rapid changes in localized pressure. Various mechanical parts such as pumps, control valves and propellers can cause cavitation to occur.
What can you do prevent or reduce pump cavitation?
How to prevent cavitation due to vaporization
- Lower the temperature.
- Raise the liquid level in the suction vessel.
- Change the pump.
- Reduce motor RPM if possible.
- Increase the diameter of the eye of the impeller.
- Use an impeller inducer.
- Use two lower capacity pumps in parallel.
What causes hydraulic pump aeration?
Aeration is often caused by an air leak in the suction line. Pressure in the suction line is below that of atmospheric pressure, so if there's a leak in the suction line, oil won't leak out, but air will leak in. If you suspect an air leak, put oil on all the fittings and connections in the suction line.
What is cavitation & harmful effects of cavitation?
Effects of cavitation :
1] The metallic surfaces are damaged and cavities are formed. 2] Due to sudden collapse of vapor bubble, considerable noise and vibrations are produced. 3] The efficiency of turbines decreases due to cavitation.
What are the causes effects and remedies of cavitation in turbines and pumps?
Cavitation occurs when the liquid in a pump creates air bubbles because of the partial pressure drop of the flowing liquid. Insufficient net positive suction head available is the main cause of generating air bubbles. Changes in the liquid pressure in the pump turn the liquid into vapor.
What is cavitation in pump?
Pumps are designed to pump liquids but, when the combined flow rate and pressure are inadequate or not conducive to the type of liquid being pumped, pockets or cavities can form, resulting in cavitation. Some describe pump cavitation as the creation and collapse of the air bubbles in a fluid.
How do you fix cavitation in a hydraulic pump?
Pop the Cavitation Bubble in Hydraulic Systems
- Correctly design the hydraulic reservoir.
- Use a breather filter on the reservoir.
- Install properly sized and configured suction lines.
- Remove any suction-line filtration.
- Use a properly sized pump.
- Maintain proper fluid temperature.
- Use a flooded suction for the pump.
What causes hydraulic pump whine?
Whilst the noise may not seem like anything more than an annoyance, it can indicate a serious system problem which requires attention immediately. There are typically two main causes behind hydraulic pump whine: cavitation and aeration.
Which of the following may cause cavitation Mcq?
In centrifugal pumps, the cavitation may occur at the inlet of the impeller of the pump or at the suction side of the pumps, where the pressure is considerably reduced. Hence if the pressure at the suction side of the pump drops below the vapour pressure of the liquid then the cavitation may occur.
What causes cavitation erosion Mcq?
Explanation: Cavitation damage occurs in hydraulic turbines, ship propellers, pump impellers, and other surfaces where high-velocity liquid flow and pressure changes are encountered.
Where does cavitation in hydraulic machines occur Mcq?
Explanation: At high pressure, the voids can generate shock waves. Cavitation usually occurs due to the changes in pressure. The pressure change is so rapid that it leads to formation of liquid free layers or cavities that start to affect the overall performance. 9.
