What is an ideal transformer?

An ideal transformer is an imaginary transformer which has the following characteristics − The primary and secondary windings have negligible (or zero) resistance. No leakage flux, i.e., whole of the flux is confined to the magnetic circuit.

What is the ideal transformer equation?

These values are determined by the power factor of the load and are equal for the ideal transformer. Hence V₁I₁ = V₂I₂ and this can be expressed as a ratio. This shows that if a transformer steps up the voltage to a higher value, the current flowing will be correspondingly reduced.

What is ideal and practical transformer?

An ideal transformer is regarded as a conceptual model which possesses all the fundamental features of a practical transformer excluding the energy losses. Ideal transformer cannot be achieved in practical world.

What is the difference between ideal transformer and real transformer?

In an ideal transformer, there is no loss, but in real transformer, there is a loss. There is three major loss in a real transformer they are core loss, copper loss, and leakage flux. Core loss is the loss by the hysteresis and eddy current loss, it is also known as iron loss.

Transformers Physics Problems - Voltage, Current & Power Calculations - Electromagnetic Induction

What is the difference between ideal transformer and a power transformer?

Ideal transformer is an imaginary transformer devised for sake of analysis of a practical/real transformer. The main difference between an ideal and practical transformer is that former is having an efficiency of 100% while the latter have efficiency close to 100% (around 99%).

What is ideal transformer and its characteristics?

An ideal transformer is an imaginary transformer which has. - no copper losses (no winding resistance) - no iron loss in core. - no leakage flux. In other words, an ideal transformer gives output power exactly equal to the input power.

What are the properties of an ideal transformer?

Characteristics of an ideal transformer:

• The resistances of the primary and secondary winding are zero.
• The core of the ideal transformer has infinite permeability.
• The leakage flux in the transformer core is zero.
• The ideal transformer has 100 per cent efficiency.

What is ideal transformer and practical transformer with phasor diagram?

Phasor Diagram of Ideal Transformer

The E₁ and E₂ are the emf induced in the primary and secondary winding of the transformer. The direction of the induced emf inversely proportional to the applied voltage. The input energy of the transformer is equal to its output energy.

What is a non ideal transformer?

Many simulators support non-ideal transformers (e.g. mutual inductor in SPICE). An often used model consists of finite inductances and an imperfect coupling (straw inductance). This model has three parameters: Inductance of the primary coil , inductance of the secondary coil and the coupling factor .

What is the power factor of ideal transformer?

So power factor of an ideal transformer is exactly that of its load. The power factor of an ideal coil is 0 since phase difference between the current and the applied voltage is - π/2.

What is the inductance of an ideal transformer?

In an ideal transformer the winding inductance is infinite, so it has infinite reactance and any current flowing through it will generate infinite voltage. Therefore the phrase 'infinite primary and secondary inductances will draw current' is nonsensical.

What are the assumptions for an ideal transformer?

The ideal transformer model is based on two assumptions. result is that all flux is confined to the core. that power in must equal the power out. The sinusoidal currents, i1(t) and i2(t), flow in the primary coil and secondary coils, the coils having N1 and N2 turns, respectively.

What is the ideal transformer why the ideal transformer is being studied?

Ideal Transformer is a hypothetical transformer having infinite permeability core and zero core loss and ohmic loss. An ideal Transformer does not exist in reality. This is just a hypothetical transformer for sake understanding the actual transformer.

How efficient is an ideal transformer?

An ideal transformer is an imaginary transformer which does not have any loss in it, means no core losses, copper losses and any other losses in transformer. Efficiency of this transformer is considered as 100%.

Which of the following is NOT feature of an ideal transformer?

An ideal transformer has infinite primary and secondary inductances. Explanation: The primary and secondary windings have zero resistance. It means that there is no ohmic power loss and no resistive voltage drop in the ideal transformer.

What is the hysteresis loss in ideal transformer?

Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.

What is the value of the transformer ratio for ideal transformer?

=1150=150:1.

What is ideal transformer on no load?

In case of Ideal Transformer, no load primary current (I₀) will be equal to magnetizing current (I_µ) of the transformer. We assumed there is no core losses and copper loss, So I₀ =I_µ .

What is ideal transformer PDF?

Definition: A transformer that doesn't have any losses like copper and core is known as an ideal transformer. In this transformer, the output power is equivalent to the input power. The efficiency of this transformer is 100%, which means there is no loss of power within the transformer.

Which loss component is present in an ideal transformer?

Losses in transformer

A transformer only consists of electrical losses (iron losses and copper losses). Transformer losses are similar to losses in a DC machine, except that transformers do not have mechanical losses.

What is NP and NS in transformer?

• Hence: Np/Ns = Vp/Vs (where V is voltage, N is number of turns and p and s are primary. and secondary respectively) • When a load is connected to the secondary winding of a transformer a current flows.

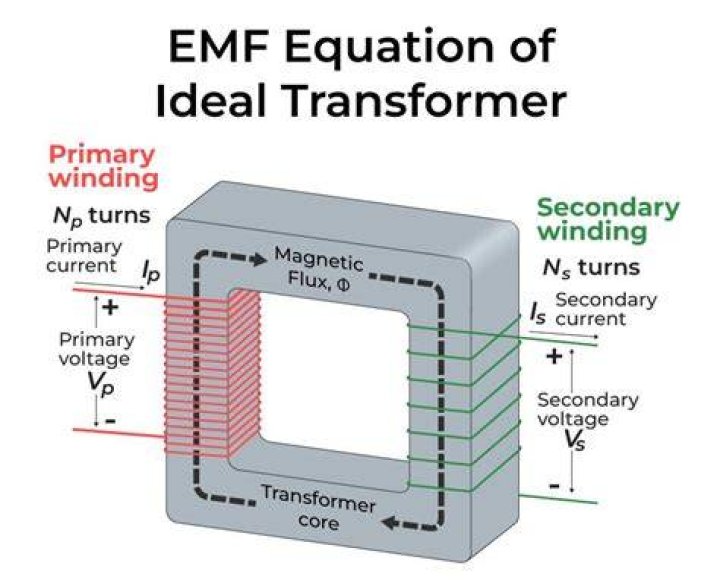

What is the EMF equation of a transformer?

Therefore, RMS value of emf per turn = 1.11 x 4f Φ_m = 4.44f Φ_m. This is called the emf equation of transformer, which shows, emf / number of turns is same for both primary and secondary winding. For an ideal transformer on no load, E₁ = V₁ and E₂ = V₂ .
