What does head lift at 0 flow mean?

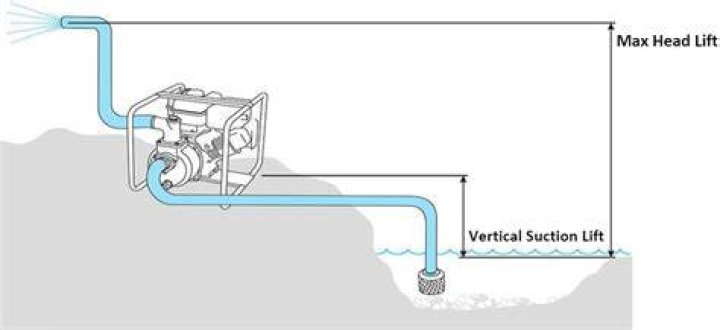

Michael Hansen "Head" Or maximum pumping height (Zero flow height)
Head is also known as the "No flow or zero flow height", "Lift" "shut off" etc, The point at which nothing comes out of a tube. It does not matter what size tube* is used, this height is the same.What does discharge head lift mean?
Discharge head
Vertical distance in which a pump can move a liquid - the highest point the liquid can be pumped.
What is head flow rate?
In a system where there is flow, the total head is the difference between the discharge head and the suction head plus the friction head and this sum will be less than the shut-off head. The plot of head versus flow rate is known as the pump's performance curve (see Figure 7 for an example of a pump performance curve).
What does head height mean for a pump?
Simply stated, a pump's head is the maximum height that the pump can achieve pumping against gravity. Intuitively, if a pump can produce more pressure, it can pump water higher and produce a higher head. The purest example of this is if you have a vertical pipe extending straight up from the discharge outlet.
How do you calculate head flow?
Hw is the head loss, including the Darcy formula or Xie Cai formula for calculating the head loss hf and the local head loss hw hf along the path. Hw=&*v^2/2g, & is called the local head loss coefficient. To check the relevant literature, v is the flow velocity in the tube.
Pump Head: Simple Explanation
What is head and flow in pump?
Head is the height above the suction inlet that a pump can lift a fluid. It is a shortcut measurement of system resistance (pressure) which is independent of the fluid's specific gravity. It is defined as the mechanical energy of the flow per unit weight.
Why does head decrease with flow rate?
A lower volumetric flow rate of the fluid will cause the diameter of the pipe to remain the same. The lower the velocity, the lower the pipe pressure drop. The head of the pump decreases as well.
What does head mean in fluid mechanics?
Head is the height given by the pump to the fluid and it is measured in meters of liquid column [m.l.c.] or simply indicated in meters [m]. The given head is fluid independent: different fluids. with different specific gravities are all lifted at the same height.
How high can a 0.5 HP pump lift water?
Pump: Their pumps are 10 stage pumps with their 0.5HP water pump capacity of water-lifting is up to 215 feet. Suitability: They are suitable for a minimum of 4-inch borewells to 300 feet deep ones.
What size of pump do I need to lift water 300 feet?
No matter which type of pump should be there,you shoud design for 300 m head and for proper flow rate and find out the require HP and take that HP pump.
How do you calculate pump lift?
On a suction lift, the total dynamic suction lift is calculated by adding the static suction lift plus the friction loss at flow rate. On a system with the water higher than the pump, the total dynamic suction lift is calculated by subtracting the friction loss from the positive inlet pressure or static head.
What is head lift on sump pump?
Vertical Lift, also known as Static Head, is the height that water has to travel as it moves through your discharge pipe. To estimate this, measure the vertical distance from where water enters your sump pump to where the discharge pipe turns from vertical to horizontal.
How high can a pool pump lift water?
In-ground pool pumps are commonly 'self-priming', which means that they can create enough suction to lift water vertically, as much as ten (10) feet in most cases. However, when pumps are more than a few feet above the pool water level, it can become easy to develop pool priming issues.
Can you have pressure without flow?
Flow rates are often referred to in gallons per minute or GPM. There are some smaller pumps that rate flow at gallons per hour or even gallons per day, outputting extremely small amounts of fluid over a given time. Pump pressure, however, is a measure of resistance to flow. Without flow, there is no pressure.
Does head loss affect flow rate?
A rule of thumb for pipeline head loss is doubling the flow rate increases the head loss by a factor of four. This is because the flow rate is raised to the second power. As Table 1 shows, doubling the flow rate doubles the fluid velocity and Reynolds number.
What is the relationship between pump head and flow rate?
The flow rate or capacity is directly proportional to the pump speed: double the speed / double the flow. The pump head is directly proportional to the square of the pump speed: double the speed/multiply the pressure by four.
What is pump head loss?
Pump fundamentals
Head loss is potential energy that is converted to kinetic energy. Head losses are due to the frictional resistance of the piping system (pipe, valves, fittings, entrance, and exit losses). Unlike velocity head, friction head cannot be ignored in system calculations.
Is head the same as pressure?
By definition, 'Head' is a measure of energy. The units of energy are feet (or meters). 'Pressure' is a force applied against a unit of area such as a pound of force applied to a square inch of area (psi). The liquid's density determines the force.
How does head relate to pressure?
In simple terms, the mathematical constant 2.31 converts a unit of energy against gravity into a unit of force against any other area. This constant converts a foot of head of water into pressure: Head in feet of water divided by 2.31 equals pressure in psi, and pressure in psi times 2.31 equals head in feet.
What is head in pipe flow?
Water (like any viscous fluid) flowing through a pipe experiences a loss in pressure due to friction. We can express this pressure loss in terms of a loss of head, where head is the vertical drop through which the fluid flows.
What causes head loss in pipe flow?
The head, pressure, or energy (they are the same) lost by water flowing in a pipe or channel as a result of turbulence caused by the velocity of the flowing water and the roughness of the pipe, channel walls, or fittings. Water flowing in a pipe loses head as a result of friction losses.
How do you reduce head loss in a pipe?
Tips for Reducing Head Loss
- Keep flow velocity around the optimum value of 1 m/s. ...
- Consider changing old pipes into new. ...
- Keep the pipe length short. ...
- The pipe diameter is decisive for system head loss.
