What color is Freon when it leaks from air conditioner?

A bright yellow-green color will come out from the dye if there is a leak. The system needs to be scanned with a blue light or UV lamp.

What does liquid Freon look like?

Freon gas is colorless, non-flammable and relatively odorless. Some Freons have an ether-like odor.

What color is a C coolant?

Actually these are two separate systems. Coolant, or Antifreeze, is the colored fluid (usually green, orange/red, or blue) found in your radiator. In the summer months it keeps the water in your radiator and engine from boiling over.

What color is r22 refrigerant?

Originally, Guideline N stipulated different paint colors for refrigerant cylinders for quick and easy recognition, such as light green for R-22, orange for R-404A, light blue (sky) for R-134a, and rose for R-410A.

What Color is Freon in an Air Conditioner?

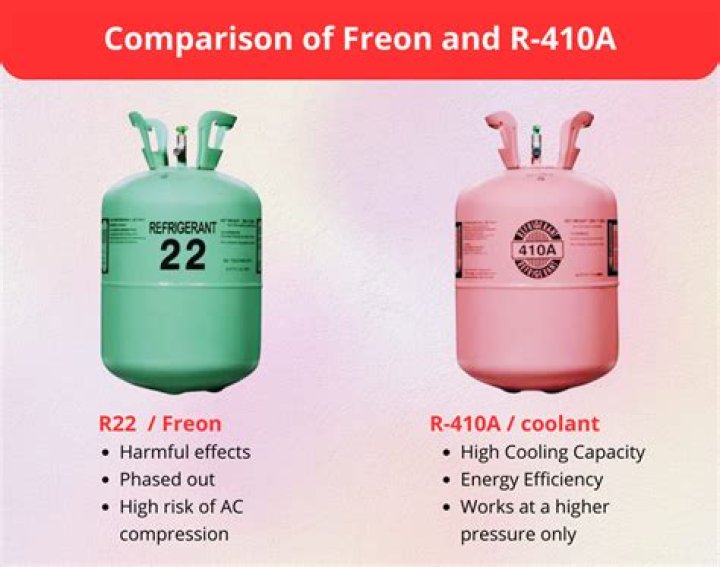

What color is R-410A refrigerant?

“Right now, I deal with four different kinds of refrigerants — R-410A, which is pink; R-22, which is green; R-407C, which is brownish orange; and MO-99, which is blue,” O'Neill said. “It's a very simple system, and it works.”

Why is my Freon green?

If you are seeing the green oil dye coming out of the A/C evaporator drain tube then you most likely have a leaking evaporator or expansion valve on the evaporator. The green dye can be seen using yellow glasses and a black light. You can have the refrigerant reclaimed and remove evaporator.

Is Freon and coolant the same?

Key Differences Between Coolant and Freon

Instead, coolant is designed to keep your engine cool and will remain in a liquid state within its system. On the other hand, Freon is a gas that is converted into a liquid and then back into a gas before creating the cool air you feel in the cabin when your car's A/C is on.

Are refrigerant cylinders color coded?

Beginning January 2020 per Air-Conditioning, Heating, and Refrigeration Institute's (AHRI) Guideline N, Assignment of Refrigerant Container Colors, all refrigerant cylinders should be painted a gray-green color, specifically RAL 7044.

What color is AC compressor oil?

Refrigerant or PAG (synthetic compressor) oil is clear, he explains. Over time, it picks up moisture and turns acidic, eating away at the condenser, thermal expansion valve, evaporator, fittings, compressor and other metal components. Gradually, the oil turns yellow and darkens as it picks up particles and sludge.

Is my AC leaking Freon?

Symptoms of a freon leak can vary, but a common symptom is when your air conditioner doesn't seem to be keeping up the set temperature. Typically a freon leak happens slowly so if the air conditioner is slowly getting worse about keeping the desired temperature you may have a freon leak.

What does leaking Freon smell like?

Freon usually travels through closed copper coils in an AC unit, but these coils can crack and result in an AC coolant leak. A freon leak will produce a smell between sweet and chloroform. Freon leaks can be toxic.

How do I know if my AC compressor is leaking?

The first signs of a leaking air conditioning compressor can be recognized by the following:

1. A/C takes more time than usual to cool the building.
2. Electric bill is higher than usual.
3. Warm air is coming from the supply vent.
4. Noticeable buildup of ice on the copper refrigerant lines.

Can Freon leak make you sick?

While tasteless and odorless, Freon does make a large impact on your air and health. Refrigerant poisoning is a serious condition that can lead to difficulty breathing, headaches, nausea and vomiting, skin and eye irritation, and coughing.

What does leaking AC fluid look like?

If you notice a leak, you will know it's Freon if it appears as a 'thin' greasy substance. These leaks often appear under the hood around the compressor, inside the cabin, or leaking under your vehicle.

How much does AC Freon cost?

Residential Air Conditioner Freon Refill Cost

As mentioned earlier, Freon costs about $125 – $150 per pound. Most homeowners will pay in the range of $200 to $400 for a refill, depending on the type and size of their HVAC unit. If you own a larger r22 unit, you may have to spend $600 or more.

How much does a can of Freon cost?

Freon costs an average of $150 for a Freon refill. Most people pay between $100 and $350 for a refill, depending on the size and type of your HVAC unit. Older large r22 units can reach $600 or more.

Can you smell Freon leak in car?

What does a Freon leak smell like? Freon typically passes through copper coils in the air conditioning unit; over time, these coils can damage and cause air conditioner antifreeze leaks. Freon leak smells somehow like sweet and chloroform.

What is the green stuff in my AC compressor?

The green is a flourescent dye used to find leaks. An electronic sniffer should scream at you if used.

Is r134 green?

Yes, the factory oil has a green dye - it is for leak detection.

What car fluid is lime green?

Green fluid leaking almost always means antifreeze. Antifreeze leaks are one of the most common leaks when it comes to vehicles. Usually, the leak has come from a hose or clamp not attached properly. Antifreeze, or coolant, regulates the temperature in the engine, keeping it from overheating.
