What are normal pressures for 134a?
Emma Valentine air-conditioning
Air conditioning, often abbreviated as A/C or AC, is the process of removing heat and controlling the humidity of air in an enclosed space to achieve a more comfortable interior environment by use of powered "air conditioners" or a variety of other methods, including passive cooling and ventilative cooling.
› wiki › Air_conditioning

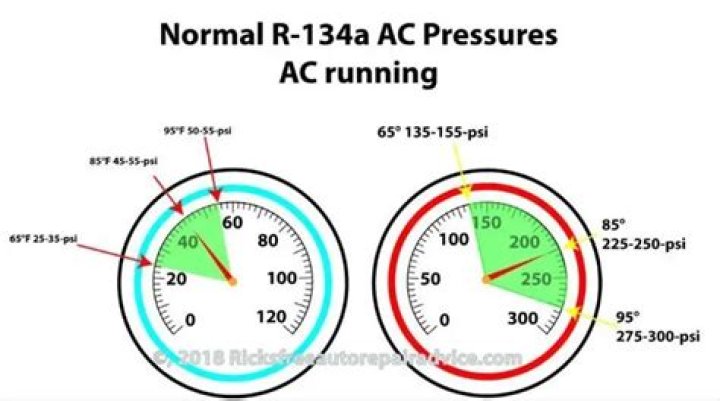

What should the high and low side pressures be?
The system should be about 25 to 30 psi on the low side and 200 to 250 psi on the high side. If the ambient temperature is higher or lower than normal (70 to 80°F) the pressures will go up or down accordingly.
What is normal AC pressure readings?
If you think that you have an issue with your A/C system but you are not sure which component is causing the malfunction it is a good idea to hook your compressor up to a pressure gauge. An A/C System that is working properly should have 150 PSI on the high side and 30 PSI on the low side.
How do you know if your car AC is overcharged?
The likely symptoms of an overcharged AC are poor cooling, no air coming out of the wents, weird noises from the engine bay, and check engine light turning on. Because the AC coolant is toxic, fixing an overcharged AC is a job for a professional AC mechanic.
What happens if car AC pressure is too high?
If your condenser has blockage or restriction of air flow, the high pressure side reading would be high while the low side readings would drop over time. To rectify this problem, you should remove and blockage and clear any debris. After removing the debris, check the readings again.
R134A AC System Pressure - How to Spot the Issues!
Do you check AC pressure with car running?
Just make sure you're reading the pressure during the times when the compressor is running. If the pressure is low, all you need to do is add A/C Pro until the needle on the gauge is within the recommended range, making sure to check the temperature of your interior center vent frequently.
Why is my AC blowing hot air after recharge?
If the A/C works okay then gradually blows hot air after recharging, you might be dealing with refrigerant leaks. The safest and effective way to find leaks is to vacuum the system. Take your car to a qualified technician to have the system diagnosed.
How long should you vacuum AC system?
With a vacuum pump connected to both, low and high air conditioning system sides pull a deep vacuum for at least 5-45 minutes. A vacuum of about 500 microns or 29.92 hg gauge pressure is needed for removing any moisture that may have entered the system along with the non-condensable gases while it was open.
Do you have to vacuum AC system after compressor replacement?
So, if you were wondering whether it's that important to vacuum your AC system, the answer is, yes! Vacuuming allows you to remove any moisture and air from the system, guaranteeing optimal performance.
Do you charge AC on high or low side?
Every auto air conditioning system has two service ports: one on the high pressure and one on the low pressure side. When recharging with AC Avalanche refrigerant, for safety, you will charge through the low side service port. Never charge through the high side port.
What happens if you add too much R134A?
Having too much refrigerant in your AC can damage the compressor. This can happen because the excess refrigerant will likely collect inside the compressor and cause subcooling, wherein temperatures are below normal. Furthermore, the extra refrigerant can flood the compressor and damage its mechanical parts.
How long does it take for freon to settle in a car air conditioner?
What is the Time it Takes for Freon to Settle in a Car Air Conditioner? Freon settles in an air conditioner in a matter of minutes. Though, it depends on the type of air conditioner too. If the air conditioner is portable, it takes about 5-30 minutes for the Freon to settle.
What happens if refrigerant is too low?
Frozen Refrigerant Lines: When the system is too low on refrigerant, the evaporator coil can get too cold. This causes ice to build up on the coil itself, but also on the surrounding components of your air conditioner. If you notice an ice build ups on your air conditioner, this is most probably the reason.
Will low Freon damage a compressor?
Low refrigerant also damages the compressor, the “heart” of the air conditioner where the liquid refrigerant is squeezed into a high pressure gas. The compressor is designed to match the refrigerant charge, and if it drops, the compressor will start to overwork and will soon break.
How do I find a Freon leak in my AC?
A technician can detect a refrigerant leak by using ultraviolet (UV) dye. An HVAC technician will send a fluorescent dye through your system to find the source of the leak. Once it circulates throughout your HVAC system, a detection lamp is used to find the leak's exact location.
Why is my AC not cold but has freon?
Blocked or Broken Condenser
The condenser's job is to turn the freon gases back into liquid. If the condenser is blocked by debris or is damaged, the refrigerant will not flow. When this happens, you won't get cold or even cool air blowing from our air conditioner.
How long does it take for AC to work after recharge?
Your Ac should start blowing cold soon after the recharging is done. Some systems might take longer to kick in, but that shouldn't be over two hours after the recharge process. If the Ac doesn't get cold after recharging, any of the below reasons could be the problem.
How do you know if your car AC compressor is bad?
Four Signs Your Car's AC Compressor Is Going Bad
- Odd Sounds. You might hear some strange noises when you flip on your vehicle's air conditioner and if you do, it's probably the compressor. ...
- Hot Air. The whole point of turning on your vehicle's AC is to get cold air to come through the vents. ...
- Fluid Leaks. ...
- Stuck Clutch.
What temp should my suction line be?
The suction temperature should be above 35°F and below 65°F entering the compressor and the discharge line temperature should be below 220°F and above 150°F (typically) on a properly functioning package unit. 20.
