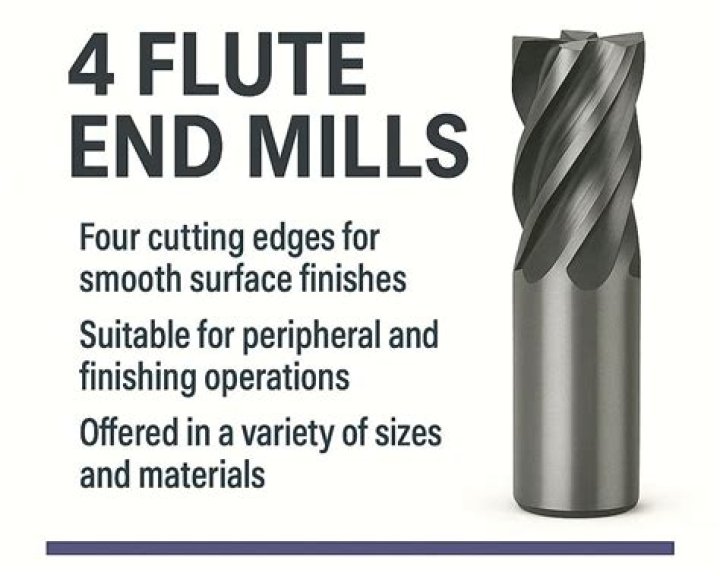

Can you drill with a 4 flute end mill?

They can mill, and they can drill. (They have cutting edges on the end face and the sides) These are usually the 2 flutes or 3 flute endmills, and occasionally you can find some 4 flutes that are centre cutting as well. Non-centre cutting end mills refers to those that mill, they do not drill.

What is a 5 flute end mill used for?

End mills with higher counts of 5, 6, and 7 flutes are increasingly being used to cut harder materials, as a higher flute count allows for a tool with more strength and less wear, resulting in a longer tool life.

What are end mills used for?

While a drill can only cut in the axial direction, an endmill can cut in all directions. Endmills are used in milling applications such as profile milling, tracer milling, face milling, plunging, contouring, slotting, drilling, and reaming.

What are 3 flute end mills good for?

Three flute end mills are used for higher feed rates than two flute end mills, and are often used in aluminum machining. They are commonly used in grooving operations where the chip is crowded. They are also used in non-ferrous milling applications where high feed rates are used.

4. 2 Flute, 4 Flute & Why You Should Use 3 Flute!

What gives a better surface finish 2 flute or 4 flute end mills?

Material Considerations

Traditionally, end mills came in either a 2 flute or 4 flute option. The widely accepted rule of thumb was to use 2 flutes for machining aluminum and non-ferrous materials, and 4 flutes for machining steel and harder alloys.

What are 6 flute end mills used for?

Six flute end mills are used for finishing operations that demand good surface finshes and higher feed rates. The flute volume is much less on 6 flute mills, so they cannot be used to rough mill.

What is flute end mill?

Flutes are the easiest part of the end mill to recognize. These are the deep spiraled grooves in the tool that allow for chip formation and evacuation. Simply put, flutes are the part of the anatomy that allows the end mill to cut on its edge.

What is a 2 flute end mill?

Two flute end mills are used for all end mill operations. The flute volume is more with 2 flute mills, but the feed rates are lower. The fewer number of flutes allows for better chip evacuation in grooving operations. These mills come in flute lengths from stub to extra extra long.

What size end mill should I use?

The length of cut needed for any end mill should be dictated by the longest contact length during an operation. This should be only as long as needed, and no longer. Selecting the shortest tool possible will result in minimized overhang, a more rigid setup, and reduced chatter.

How many flutes does it take to mill wood?

Flutes are the cutting edges you see along the sides of CNC mills and router bits. In the case of the spiral router bits meant for wood cutting, two flutes are most common. CNC mills can have from one to six flutes, though two or four are prevalent.

How many flutes are on a tap?

Number of flutes for taps or machine taps

However, it has become generally accepted that hand taps M8 and larger are designed with four flutes. The advantages are obvious: the friction is lower, the chip removal is better and you get a smoother cutting behaviour and thus longer tool life.

Can I use an end mill in a router?

The disadvantage of an end mill is that the cutting diameter equals the shank diameter. Therefore, I usually mortise with a 1/4″ or 3/8″ end mill using a router collet of the same size for each. A 5/16″ end mill can be used with a shank adapter though I prefer to avoid these adapters.

How many flutes does it take to mill plastic?

Three Flute Plastic Cutting End Mills can reduce or eliminate the need to hand-deburr a part. These tools employ an improved cutting action and rigidity due to the higher flute count.

Why are there milling cutters with flutes?

Flutes: More flutes allows a higher feed rate, because there is less material removed per flute. But because the core diameter increases, there is less room for swarf, so a balance must be chosen. Coating: Coatings, such as titanium nitride, also increase initial cost but reduce wear and increase tool life.

What is a square end mill?

Square end milling cutters are also known as a "flat end mills". The corners of these mills are sharp and generate a 90° angle. They can be single end or double end and they can be made from solid carbide or various compositions of high speed steel.

What are single flute end mills used for?

For applications requiring fast, high-volume material removal, the single flute design is ideal. Our single flute tools are highly versatile – excelling at roughing. These tools are perfect for aluminum, brass, plastics, exotic composites and any soft metals.

Why do single flutes have end mills?

The answer is to use a single flute endmill because it halves the neccessary feedrates without rubbing. So there is one case where it helps, when the machine just can't feed fast enough to keep up with what the spindle is putting out and maintain adequate chip loads.

How deep can an end mill cut?

With a cut equal to the full width of the cutter, the maximum recommended depth of cut (a_p) is 0.6 D. If, however, the cutting action is the cleaning up of the edge of a component, with the cut only 10 per cent of the diameter, the depth can be increased to 1.5 D. Figure 11.37.

What is a carbide end mill?

A carbide endmill (end mill) is a type of milling cutter, a cutting tool used in industrial milling applications. Endmills can cut in all directions, although some cannot cut axially. Endmills are used in milling applications such as side milling, profiling, face milling, and plunging.
