What anchors to use in brick?
Andrew Walker How do you anchor into brick?
Install the masonry screw in brick by selecting a carbide bit with the correct diameter for that screw. Drill a pilot hole with a hammer drill with the carbide bit. Insert the masonry screw anchor into the hole in the brick and turned clockwise. This will tap threads into the brick and hold the screw securely.
Do you need special anchors for brick?
To screw into brick there are only two things you need. Screw anchors for concrete ( Walldog, Tapcon, concrete screw, or screw anchors are all types of masonry screws) and a masonry drill bit. Those are the absolute basics.
Can you use screw anchors in brick?
Anchors can be used for placing bolts or masonry screws inside without damaging or cracking the brick surface. With the appropriate tools, you can mount a wall anchor into brick with little difficulty.
Can drop in anchors be used in brick?
For this reason, sleeve anchors are recommended by their manufacturers for use in brick masonry more often than wedge anchors. Drop-in and self-drilling anchors (see Fig. 8) are two other types of expansion anchors available, but are typi- cally not recommended by their manufacturers for use in masonry.

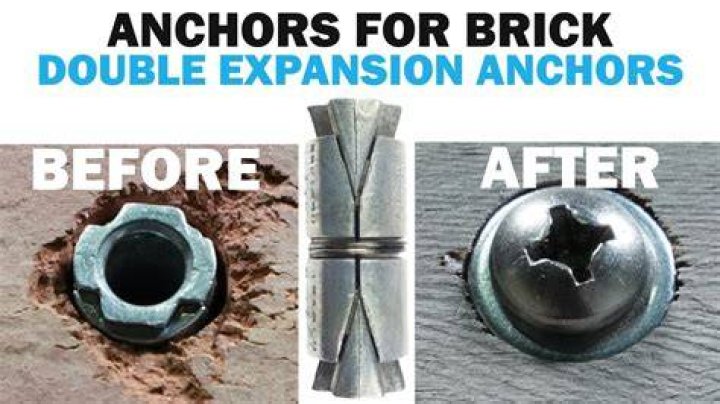

Anchors For Brick - Double Expansion Anchors | Fasteners 101
Are Tapcon screws better than anchors?
Tapcon and wedge anchors are pre-installed mechanical anchors that attach structural objects to concrete structures. However, the wedge anchor suits heavier-duty applications, vs the Tapcon anchor that typically serve lighter deployments. Another difference between them is in their fastening method.
Can Tapcon screws be used in brick?
The Tapcon concrete screw is suitable for use in a variety of base material, including brick and the mortar joints between the brick.
Is it better to anchor in brick or mortar?
Brick often holds more weight and provides better support compared to mortar. However, if you're working with aged and fragile brick, it may not be the best option for deep holes, heavy objects or expansion-style anchors. Deeper holes and expansion anchors can weaken an already feeble brick.
How do you get screws to stay in brick?
How to Put Screws Into Brick
- Insert a 5/32-inch carbide drill bit into a power drill for 3/16-inch masonry screws. Use a 3/16-inch carbide drill bit for 1/4-inch masonry screws.
- Drill pilot holes in the brick for each screw. ...
- Remove the drill bit from the drill. ...
- Drive the masonry screws into the brick at each pilot hole.
Why can't I drill into brick?
However, if you have old, fragile brick and you're mounting a heavy object that requires deep holes and expansion-style anchors, drilling into the brick may not be the best choice. Deep holes weaken the brick and expansion anchors can create enough circular stress to crack the brick.
How do you hang something heavy on brick?
If you need to hang heavy objects or ensure the object is secure on the wall, use screw-in anchor hooks. All you have to do is pre-drill holes into the mortar or brick, then screw in the anchor hook. You can also use anchors that stick to or clamp to the wall, but these are best for light objects only.
Can wedge anchors be used in brick?
In the case of what would appear to be solid brick, the wedge anchor should not be used because although the brick may look solid, it may be too porous to meet the requirements needed for installing a wedge anchor.
How much weight can brick anchors hold?
Masonry and concrete anchor types are considered light-duty, medium-duty or heavy-duty, based on how much weight they can support. Light-duty anchors are good for wall hangings that weigh up to 50 pounds. Medium-duty anchors are good for wall hangings that weigh up to 200 pounds.
Can I use drywall anchors in brick?
Wall anchors can be used in drywall, concrete, brick, metal or wood, and installation takes just a few steps.
Do masonry screws need plugs?
A normal screw will not securely stay in plasterboard or masonry without a wall plug. They expand to securely grip the sides of the hole you have drilled, and will help to hold the screw in place without damaging your walls.
Do I need a hammer drill for Tapcon screws?
The hole must be drilled using a hammer drill with a carbide tipped bit meeting ANSI standards. A bit that meets ANSI standards will ensure that the hole diameter will meet the requirements of the Tapcon®.
What is the strongest masonry anchor?
Wedge anchors are typically the strongest anchors, but not every application requires a heavy-duty anchor. Some will do just fine with a plastic wall anchor or a nail-in version.
What is special about a Tapcon?
Tapcon anchors are less prone to head snapping, providing greater dependability on the job and saving hours of labor. The induction hardened tip easily drives through concrete while the patented Advanced Threadform Technology delivers 20% more holding power than other concrete screw anchors.
What size concrete anchor should I use?
As a rule of thumb, the space for the nut and washer is equal to the diameter of the wedge anchor being used. For example, if a 2x4 is being fastened to concrete with a 1/2” wedge anchor then the minimum length of wedge anchor would be 1-1/2”(2x4) + 2-1/4”(minimum embedment) + 1/2”(space for nut and washer) = 4-1/4”.
Which is better wedge anchor or sleeve anchor?
Sleeve anchors are fairly simple to use and are primarily used in brick or block. They can be used in concrete but are not considered as strong as a wedge anchor. So, for light to medium holding applications, a sleeve anchor is a good choice.
