What is jointing and pointing in for brickwork?

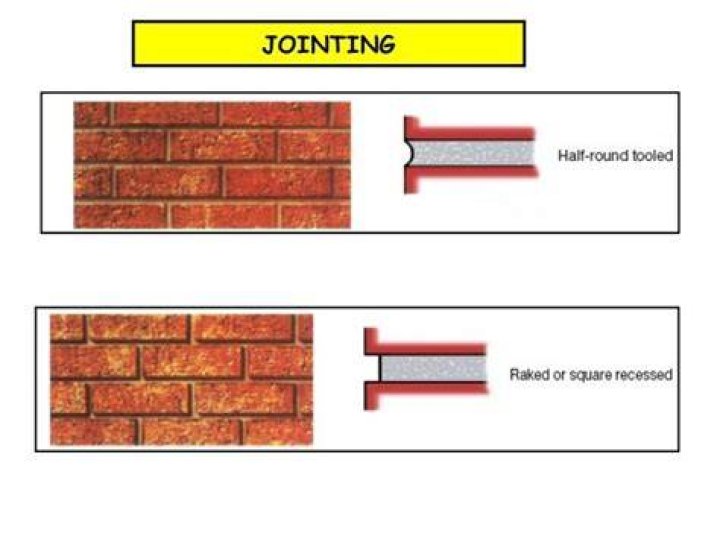

JOINTING. The finished profile of the original mortar joint may be formed either immediately, as the bricks are laid, or later in a separate exercise known as pointing. Jointing is the bricklayer's term for the action of finishing the joint faces of the bedding mortar as work proceeds.

What is the difference between pointing and repointing?

The Difference

Repointing refers to the process of removing old mortar and replacing it with new mortar. Tuckpointing, on the other hand, refers to a similar process where the damaged mortar is removed then replaced with new mortar with a color similar to the bricks.

What is jointing in walls?

Jointing is finishing the mortar joints between newly laid bricks. Pointing is applying a small amount of mortar into the face joint between bricks (either newly laid or in old brickwork).

What is jointing in masonry?

In masonry, mortar joints are the spaces between bricks, concrete blocks, or glass blocks, that are filled with mortar or grout. If the surface of the masonry remains unplastered, the joints contribute significantly to the appearance of the masonry.

Pointing and Jointing

Is brickwork easy to repoint?

Repointing is a straightforward job and the materials required are not expensive — but the cost of the labour involved in brickwork repointing can be quite high. It can also be hard to find a builder willing to take on small repointing jobs, which is why many people choose to carry out repointing on a DIY basis.

What happens if you don't repoint brickwork?

Failed or unsuitable pointing

The more modern mortar could trap moisture and so prevent it escaping via the mortar joints. This, in turn, would force the moisture to emerge on the brick faces, where it could be frozen and then lead the brick surfaces to crumble.

What depth should repointing be?

As a general rule, the pointing to be repaired must be dug out to a minimum depth of about two-and-a-half times its thickness, in other words ¾ inch to one inch for regular 3/8-inch pointing. You need to dig at least ¾ inch deep for thinner pointing.

What is the correct mix for repointing?

A typical mortar mix for Repointing purposes, for use in an area subject to normal weather conditions, would comprise 1 part Portland Cement, 1 part Lime and 5½ parts Sand.

How much does it cost to repoint a brick wall?

Repointing brick costs $3 to $20 per square foot for walls up to 8' and $5 to $25 per square foot for walls above 8' that require scaffolding. Repointing an 8' x 10' brick wall costs $240 to $1,600. Repointing prices depend on the brick or stone condition, mortar damage, materials, and accessibility.

Should I Tuckpoint or Repoint?

While tuckpointing is more of a preventative and aesthetic fix, repointing is the process of sealing mortar joints that are exposed to the elements. This particular job keeps water out to prevent further cracking or much larger repairs from taking place.

What does it cost to Tuckpoint a house?

With most homeowners paying between $500 and $2,500 for 100 square feet of tuckpointing with labor and materials included, the average cost is $1,500. Brick and masonry experts typically charge between $5 and $25 per square foot for tuckpointing.

What is the purpose of pointing?

Pointing is a technique to apply cement or lime mortar to brick masonry at joints to prevent the entry of dampness in the building and make it waterproof. It is also provided for aesthetic purposes. Finish properly-> apply brush till it gardens.

How do you prepare a surface before pointing?

Basics in Building Construction

Pointing is carried out in the following steps : The mortar of the masonry joints to be covered by pointing is raked out at least to a depth of 20 mm. The dust from the masonry joints is removed by brushes. The surface is then washed with clean water and it is kept wet for a few hours.

What are the advantages of pointing?

Advantages of Brick Pointing

• Improves the overall looks of the structure.
• Reduces the need for other repair or rehabilitation work.
• Keeps the walls of the structure safe from adverse effects of weather.
• Improves the structural strength of the building.

How much does it cost to repoint a wall UK?

Repointing a single wall – such as at the front or side of a house – costs £1,500 – £2,200. Repointing a semi-detached modern house costs around £4,000 – £5,000. Repointing a Victorian terraced property costs around £3,000 – £4,400.

Can I repoint my house myself?

Repointing is a job that you can do yourself if you have the skills, but it is best to get a professional bricklayer to at least check it first and give advice.

Does repointing strengthen walls?

Repointing only restores joints; any other damage will continue to worsen, eventually causing the entire wall to split in places.

Can you repoint over old mortar?

Can You Mortar Over Old Mortar? If your brick is 50 years old or less, you can probably repoint it safely with modern, portland cement–based mortar (although the guy doing the next repointing, who'll have to grind it out, may curse your decision).

Will repointing stop damp?

You can do this yourself, or have a professional complete the work for you if it looks like it might take too much time. Repointing is one of the crucial steps in removing penetrating damp from your property.

How long should repointing last?

When it is done properly, repointing can restore the beauty and functionality of a masonry structure. If the repointing job is done the right way, it can last for quite a long time, namely somewhere between 50 and 100 years.

Can you repoint in winter?

One thing is very important to note, however – repointing should never be tackled during the winter, as wind and rain will damage the freshly-applied mortar.

Can you render instead of repointing?

Rendering will give you a more waterproof solution but not always the best. If it has been converted properly it will be a double skin wall and insulated in which case repointing will as good a remedy. Personally i would always rather retain the natural brickwork unless beyond pointing due to spalling of the bricks.
