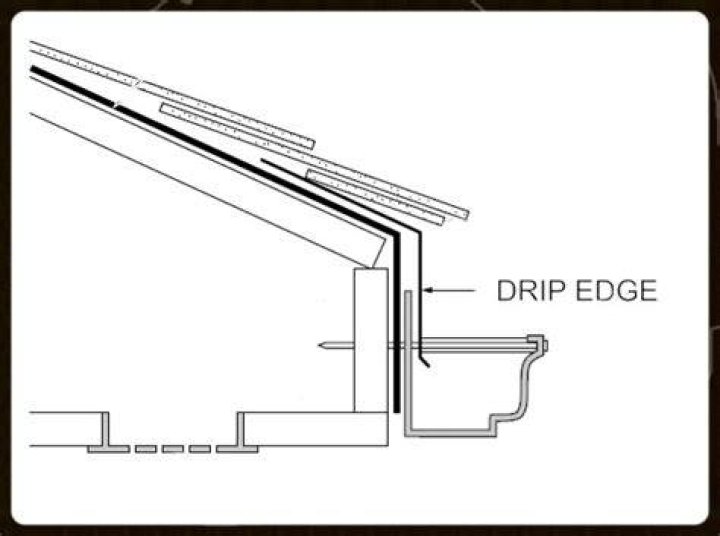

How far below drip edge should gutter be?

The gutter should be installed as close to the shingles as possible; no more than 2 or 3 inches. If the gutter distance is more than 3 inches, the rain will run off the roof and won't drain properly.

Should gutters be flush with fascia?

Should Gutters Be Flush With Fascia Boards? Gutters are installed on the face of the fascia boards. It is recommended to lay down a protective piece of furrier strip rather than leaving them flush. This is because fascia will be exposed to a lot of dark and dampness.

Should there be a gap between fascia and drip edge?

The best installation method is to leave a gap between the drip edge and the fascia board, about the width of a finger. The shingles should also overhang the drip edge 3⁄8 to 1/2 an inch.

How much overhang should gutters have?

The gutter should extend slightly past your roof's shingles. 3/4 of your gutter's width should stick beyond the shingles to catch all the water and lead it properly down the downspouts. The gutter should be between 2 and 3 inches away from the roof's edge.

Gutter Installation tip "Drip Edge"#4

What is the purpose of a gutter apron?

A gutter apron is a specially designed drip edge folded at 120 degrees that helps direct water away into your gutter. We all know just how dangerous water seeping underneath your shingles can be, right? A gutter system that doesn't collect rainwater can be just as detrimental to your roof.

Does drip edge go around entire roof?

Drip edge is installed around the whole perimeter of the roof. It is used to hold the underlayments down and create a watertight seal around the edge of the roof. Only the face of the metal is seen and is usually just white one to one and half inch stripe located right under the shingles and above the fascia.

What is the difference between drip edge and rake edge?

So, the drip edge attracts the rain droplets, snow, all types of precipitation into the eavestroughs, and away from the rest of the roof. Rake edges, on the other hand, are placed along the ends of the gables of a house's roof.

Why does water leak behind my gutters?

If water is dripping behind your gutter, it's probably because it was installed without any flashing over the back of the gutter. The gutter apron will prevent the dripping. A gutter apron is a bent piece of flashing that tucks up under the shingles and over the gutter. Home centers sell a gutter apron in 10-ft.

What is the difference between drip edge and gutter apron?

The most obvious attribute that distinguishes a gutter apron from a drip edge is the fact that a gutter apron is more of an L-shaped metal rather than a T. A gutter apron also comes in metal strips with aluminum and steel sheets. Like drip edge, a gutter apron may be available in many different colors.

Should gutters extend past roof?

Your gutters should extend beyond your roof shingles, not align with them. Water naturally runs across shingles, down the shingle edge, and even underneath it. When gutter sections are installed directly in line with your roof shingles, the shingles impair the natural flow of water.

Does underlayment go under drip edge?

Does Drip Edge Go Over or Under Felt? According to most building codes and manufacturer recommendations, the drip edge should be installed beneath the underlayment along the eaves of the roof. But over the underlayment along the rake edges of the roof.

Should shingles hang over the drip edge?

Shingles should be installed over the drip edge a minimum of 3/8” (9 mm) at both the eave edge and the rake edge. If the drip edge extends… out from the rakes and eaves (typically called DL Style or D Type), the shingles may be installed flush with the drip edge.

Does ice and water Shield go over or under drip edge?

Ice and water protector needs to be installed directly onto the roof deck after you have placed the drip edge at the eave. (The drip edge will be installed over the ice and water protector and other underlayments at roof rake edges.)

Does drip edge go on rakes and eaves?

A drip edge should be installed on the eaves and rakes of the roof, flush with the decking and fascia. On eaves, the drip edge is installed directly to the deck with underlayment installed over it for proper water shedding. On rakes, the underlayment is installed over the drip edge.

What does drip edge flashing do?

Drip edge flashing helps prevent ice dams from forming. They protect your basement: When drip edges redirect water off your roof, they also redirect it away from the part of the ground directly beneath your roof, which often leads to your basement.

What is a fascia apron?

Yost's Fascia Apron is used when you are installing a floating system. This fascia apron hooks into gutters with a "hook back." Recommended Products: Use with the F.S. 5" Internal Hanger (B-Bar) Length: 10'

What goes on first roof or gutters?

While it is usually best to have a new gutter system installed after your roof, sometimes this is not possible. If your gutters are damaged or ineffective, you may have no other choice but to have them installed before your new roofing system.

What is the difference between 5 inch and 6 inch gutters?

6-inch gutters can handle almost 50% more water than 5-inch gutters. They are installed with bigger 3”x4” downspouts for better water management. 6-inch gutters are less likely to get clogged up because they can handle more water flow, and they come with a bigger outlet.

What is an alternative to gutters?

A great (and better looking) substitute for the traditional gutter-downspout system, rain chains work by collecting rainwater from the roof and directing it to underground reservoirs, generally barrels.

What goes on first fascia or drip edge?

The correct placement of a roof drip edge is on top of the roof's exterior cover directly between the sheathing and the fascia board, which forms a drainage gap between the drip edge and the fascia board. As a result, the drainage improves water flow and protects the roof from potential water damage.
