Is single phase same as split phase?
Isabella Bartlett What is the difference between split phase and single-phase?

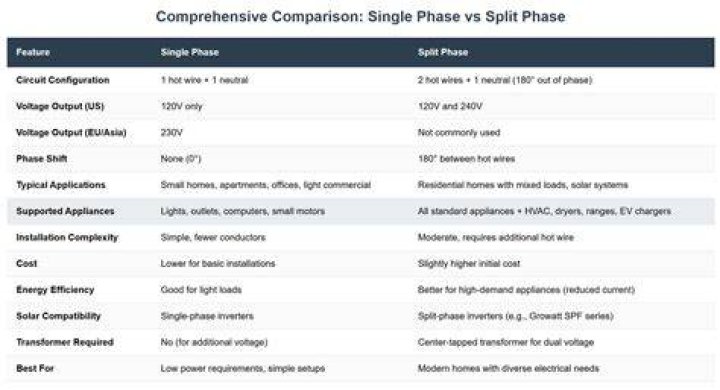

Single phase power systems are defined by having an AC source with only one voltage waveform. A split-phase power system is one with multiple (in-phase) AC voltage sources connected in series, delivering power to loads at more than one voltage, with more than two wires.
Is Split Phase 240v?
High-demand applications, such as air conditioners, are often powered using 240 V AC circuits - these are connected between the two 120 V AC lines. These 240 V loads are either hard-wired or use NEMA 10 or NEMA 14 outlets which are deliberately incompatible with the 120 V outlets.
Is residential power single-phase or 2 phase?
Residential homes are usually served by a single-phase power supply, while commercial and industrial facilities usually use a three-phase supply.
Is 240V single-phase or 2 phase?
Residential electric service in the United States (120/240 Vac) is sometimes called two-phase service but this is NOT correct. It is only single-phase, since both line voltages are derived from a single phase of a distribution transformer with a center tapped neutral and are 180° out of phase with each other.
How Motors Work For Beginners: (Episode 4) Single Phase Induction and Shaded Pole Motors: 035
How do I know if my house has single phase power?
How can I tell what phase power I have?
- Simply locate the switchboard, normally located close to the front of the house or internally in a linen cupboard.
- In the switchboard there will be multiple circuit breakers. ...
- If there is a single circuit breaker (as per image below) this is single (1) phase power.
What is the meaning of split-phase?
Definition of split phase
(Entry 1 of 2) : the phase difference of two or more currents into which a single-phase alternating current has been divided.
Is 240V single-phase or 3 phase?
240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.
What is 120V 240V split-phase?
120V/240V Split Phase
120/240 Vac split phase is a type of single-phase three-wire mid-point neutral power distribution system commonly found in America with a standard phase-neutral voltage of 120 Vac for residential and light commercial applications.
What is the single-phase?
What is a Single-Phase Power? Single-phase power simultaneously changes the supply voltage of an AC power by a system. More often, single-phase power is known as “residential voltage,” since it is that most homes use. In the distribution of power, a single-phase uses the phase and neutral wires.
Why is 240v considered single-phase?
So, unlike a three-phase service that uses all three power phases from the power supply, the single-phase service only uses one. The second leg is “created” in the secondary of the distribution transformer itself and is the same “phase” but is split due to the center tap. Pretty cool.
Why is single-phase used in homes?
Advantages. Single-phase connections are intended for domestic supplies and residential homes. That's because, most of the appliances require a small amount of electricity to perform such as television, lights, fans, refrigerator, etc. The functioning of a single-phase connection is simple and ordinary.
Why does single-phase have 2 wires?
Two hot wires and one neutral wire provide the power. Each hot wire provides 120 volts of electricity. The neutral is tapped off from the transformer. A two-phase circuit probably exists because most water heaters, stoves and clothes dryers require 240 volts to operate.
Why is it called a split-phase motor?
In a split-phase induction motor, the starting and main current get split from each other by some angle, so this motor got its name as a split-phase induction motor.
How do you know if its single-phase or three-phase?
The best way to tell if a property has a three phase supply is by looking at the electrical fuse (sometimes called electricity supply, service head, cut out). Typically a single phase will have one fuse and a three phase will have three 100amp fuses.
Can I plug single phase into 3-phase?
Although single-phase power can be derived from a three-phase power source, a transformer cannot convert single-phase power to three-phase power. Converting single-phase power to three-phase power requires either a phase converter or a variable frequency drive.
Is 240V AC single phase?
Because we only measure across two wires, both 120V and 240V are referred to as single-phase power. (It's rare to find three-phase AC power in residential situations). Neutral and ground are related but serve different roles. The neutral wire is the current return path for 120V circuits.
How many phases does my house have?
Generally, most residential homes use a single-phase circuit and commercial properties that use high-powered machinery and equipment will have a 3-phase circuit.
What is a single-phase split-phase motor?
A split-phase induction motor is a type of single-phase induction motor in which the stator is provided with a starting or auxiliary winding (S) and a main or running winding (M). The starting winding is displaced by 90° from the main winding as shown in the figure.
How does a single-phase split-phase motor work?
A split-phase motor has no capacitance in the auxiliary circuit. A phase shift to the main current is achieved by using narrow conductors to achieve high resistance to reactance ratio. Increasing the resistance means that the auxiliary winding can only be used during starting, otherwise, it would overheat.
What is a single-phase transformer?
A single-phase transformer is a type of power transformer that utilizes single-phase alternating current, meaning the transformer relies on a voltage cycle that operates in a unified time phase.
Can 2 AC run on single phase?
You can, yes. The main MCB has a current rating of at least 25 ampere. If you use 1.5 ac, it has max load current of 7 to 8 amperes for a single ac, and the MCB size is to be selected. The current for 2 nos of ac is 16 amperes, so the MCB size is to be the next rating.
Are homes wired single phase?
Throughout North America, homes are powered by 120-volt single-phase electricity. A typical residential circuit breaker box reveals four wires coming into our homes: two “hot” wires, a neutral wire and ground. The two "hot" wires carry 240 VAC, which is used for heavy appliances like electric ranges and dryers.
Can you have 2 phase electricity?
It has replaced two-phase power for commercial distribution of electrical energy, but two-phase circuits are still found in certain control systems. Two-phase circuits typically use two separate pairs of current-carrying conductors.
