Is plastic a dielectric or conductor?

Most plastics are poor conductors of electricity and resist a current flow, thus called dielectrics or insulators.

Is plastic a dielectric medium?

Dielectric properties of the plastic depend on their structure. Depending on the structure they are called polar or nonpolar. Polar plastics absorb moisture from the atmosphere. Presence of the moisture in the polymer increases the dielectric constant and decreases the resistivity.

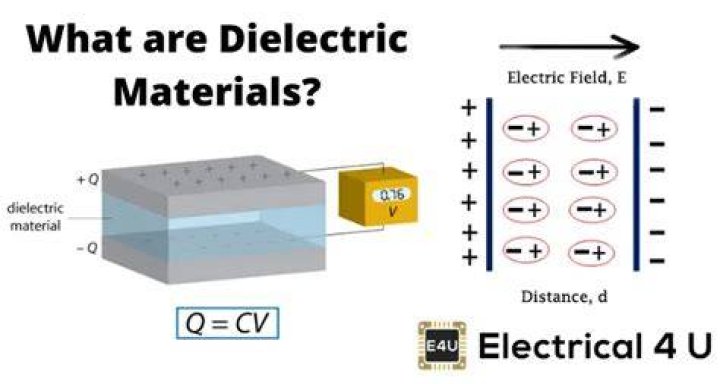

What are examples of dielectric material?

Some examples of dielectric materials are:

• Solid Dielectrics – Ceramic, Plastic, Mica, and Glass.
• Dielectric Liquid – Distilled Water.
• Dielectric Gas – Dry Air, vacuum, nitrogen and helium.

Does plastic have dielectric constant?

Most (pure) plastics have a dielectric strength in the range of 100 to 300 kV/cm with an average around 200 kV/cm and some chlorinated polymers show values up to 500 kV/cm and Teflon up to 700 kV/cm.

What are Dielectric Materials? | Skill-Lync

What is the dielectric strength of plastic?

Dielectric strength is calculated by dividing the breakdown voltage by the thickness of the sample. Most plastics have good dielectric strengths (in the order of 100 to 300 kV/cm).

Is rubber a dielectric material?

The higher the dielectric constant, the better a material functions as an insulator---for example, rubber has a very high dielectric constant, and so it is often used a protective coating around high voltage wires because its high k makes it a very poor conductor.

Which of the following is not dielectric material?

Solution : Paper is not a dielectric material because it has no free electrons to allow the current pass through it.

Is plastic an electrical insulator?

Plastics are good electrical insulators (such as phenolic, Ultem®, PEEK). There are dozens of polymers to choose from that offer high dielectric strength and excellent fire resistance.

Why plastic is an electrical insulator?

Explanation: They don't have free electrons moving around (delocalised electrons) so they can't conduct heat and electricity which gives them a property of good insulators.

Why is plastic used for electrical insulation?

Electrically insulating plastics

Unmodified plastics have inherent electrical insulating properties. These electrically insulating plastics have a high resistance or are completely resistant to the flow of electrical current.

Is plastic electrically conductive?

Most plastics are inherently electrically insulating materials, they do not conduct electricity. In some applications, imparting electrical conductivity adds significant value and utility.

Is plastic conductor or non conductor?

D. They do not have free electron. Hint: Plastics are poor electrical conductors, which is why they are used as insulators on wires and in other places.

Why is plastic not conductive?

The chains of macromolecules are tightly bound and in turn extremely flexible. This is why you can form plastic into various shapes and sizes. Because the molecules are extremely tightly bound together this makes it very difficult for any electricity to flow through.

Is glass a dielectric?

Solid dielectrics are perhaps the most commonly used dielectrics in electrical engineering, and many solids are very good insulators. Some examples include porcelain, glass, and most plastics.

Is paper a dielectric material?

Materials with moderate dielectric constants include ceramics, distilled water, paper, mica, polyethylene and glass. Metal oxides, in general, have high dielectric constants.

Is glass a good dielectric?

It is demonstrated that glass is attractive as dielectric for a wide frequency range up to 200°C. It argues that the dielectric losses are currently too great for thin glass to be used within a commercial power capacitor.

Is water a dielectric material?

A dielectric material is defined as a material that is an electrical insulator. An electrical insulator is a material that does not allow the flow of charge. Charge can flow as electrons or ionic chemical species. By this definition liquid water is not an electrical insulator and hence liquid water is not a dielectric.

Is ceramic a dielectric material?

A ceramic capacitor is a fixed-value capacitor where the ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes. The composition of the ceramic material defines the electrical behavior and therefore applications.

Which material has highest dielectric constant?

Calcium Copper Titanate has the highest dielectric constant.

Is plastic polar or non polar?

The fluorocarbon plastics family is generally non-polar and as such these plastics have very low dielectric constants (less than 3) and also the power factor is both frequency independent and low (less than 0.0003 across a wide range of frequencies).

What are dielectric polymers?

Polymers have long been known as insulating materials and are often used to insulate cables and electrical devices. They are also called dielectrics. Traditionally, dielectric materials are made from inorganic materials such as porcelain, mica, and quartz. However, polymers are also used as dielectric materials.

Is polyethylene electrically conductive?

Among them, polypropylene (PP) and polyethylene (PE) are known for their excellent chemical resistance and mechanical properties. Polymers are electrically insulating materials with conductivity values as low as 10⁻⁷−10⁻¹⁴ S cm⁻¹.
