Is MQTT an application layer protocol in IoT?

Message Queue Telemetry Transport (MQTT) protocol is an application layer protocol. The application layer provides an interface between the end nodes (IOT devices) and the network. In case of computers, laptops and mobile devices, the application layer is usually implemented by the browser.

What type of protocol is MQTT?

MQTT is an OASIS standard messaging protocol for the Internet of Things (IoT). It is designed as an extremely lightweight publish/subscribe messaging transport that is ideal for connecting remote devices with a small code footprint and minimal network bandwidth.

What is application layer protocol in IoT?

The application layer is the interface between the IoT device and the network with which it will communicate. It handles data formatting and presentation and serves as the bridge between what the IoT device is doing and the network handoff of the data it produces.

Which is not a application layer protocol?

Which is not a application layer protocol? Explanation: TCP is transport layer protocol. Explanation: For Application, Presentation and Session layers there is no data format for message.

Ass56 Part 1 Introduction to application layer protocol MQTT assignment

What are application layer protocols?

An application layer protocol defines how application processes (clients and servers), running on different end systems, pass messages to each other. In particular, an application layer protocol defines: The types of messages, e.g., request messages and response messages.

Is MQTT is a data and communication protocol?

MQTT is a bi-directional communication protocol where each client can both produce and consume data by publishing messages and subscribing to topics.

Is MQTT full duplex?

Fundamentally, MQTT is an asynchronous protocol and thus enables duplex communication with a lightweight burden on systems. It allows systems to run on low bandwidth and low power.

What MQTT means?

MQTT (MQ Telemetry Transport) is a lightweight open messaging protocol that provides resource-constrained network clients with a simple way to distribute telemetry information in low-bandwidth environments.

Which are the application of MQTT protocol?

MQTT is a standard messaging protocol for the IoT business. It is designed as a very lightweight publish/subscribe messaging protocol, which is very suitable for connecting remote devices with a small code usage and network bandwidth.

Is MQTT a software?

x MQTT Broker is an open-source implementation of MQTT server. It implements protocol versions 3.1. 1 and 3.1, supports QoS 2, and uses OAuth2 for authentication.

Why MQTT protocol is used in IoT?

The MQTT protocol is thus energy-efficient and easy to deploy for millions of devices. Connecting devices during unreliable networks: MQTT in IoT uses QoS levels to ensure guaranteed delivery of messages to receivers, even when connections between devices are unreliable.

What are three application layer IoT protocols?

Application layer protocols founded on TCP and UDP solve the communication challenges faced in an IoT project. The TCP protocol enables the XMPP, MQTT and REST/HTTP communication protocols. The UDP protocol enables DDSI and there are DDSI implementations on TCP/IP.

Which best describes MQTT protocol?

MQTT is a binary protocol with strength in simplicity to be ideal for mobile IoT app and M2M. It provides the pub/sub messaging pattern and is designed for resource-constrained devices, low bandwidth and high latency networks. MQTT is specified by the official OASIS Standard.

Which of the following is not an application of IoT?

Which of the following is not a fundamental component of an IoT system? Explanation: Sensors are required to collect data, network connectivity is required for data processing and to interface with the user. Transformers are not required as they are used for voltage transformation.

Is MQTT bidirectional?

MQTT is bidirectional, and maintains stateful session awareness.

Is MQTT a WebSocket?

MQTT over Websockets allows you to receive MQTT data directly into a web browser. This is important as the web browser may become the DE-facto interface for displaying MQTT data. MQTT websocket support for web browsers is provided by the JavaScript client.

What is MQTT architecture?

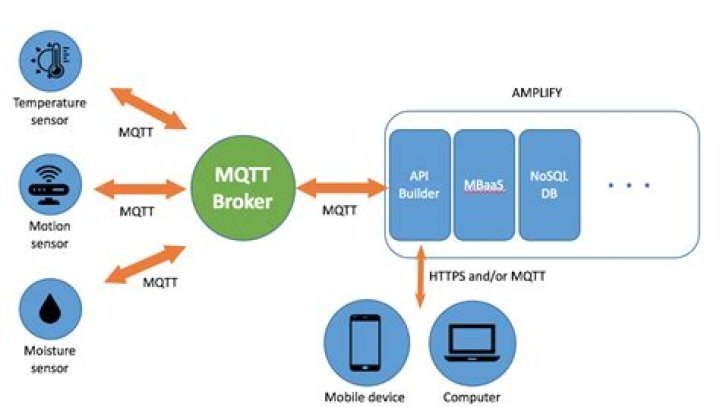

Architecture. MQTT has a client/server model, where every sensor is a client and connects to a server, known as a broker, over TCP. MQTT is message oriented. Every message is a discrete chunk of data, opaque to the broker. Every message is published to an address, known as a topic.

Is MQTT open source?

MQTT goes open source

As the Internet of Things took off, so did MQTT. The first open source MQTT broker, Mosquitto, was created in 2008, which in 2014, became the Eclipse Mosquitto project.

What is the difference between MQTT and HTTP?

MQTT is data centric whereas HTTP is document-centric. HTTP is request-response protocol for client-server computing and not always optimized for mobile devices.

How many application layer protocols are there?

Few of Application layer protocols are described below:

• Domain Name System. The Domain Name System (DNS) works on Client Server model. ...
• Simple Mail Transfer Protocol. ...
• File Transfer Protocol. ...
• Post Office Protocol (POP) ...
• Hyper Text Transfer Protocol (HTTP)

Is http an application layer protocol?

Designed in the early 1990s, HTTP is an extensible protocol which has evolved over time. It is an application layer protocol that is sent over TCP, or over a TLS-encrypted TCP connection, though any reliable transport protocol could theoretically be used.

Is DNS an application layer protocol?

DNS is an Application-layer protocol. The Application layer is the top-most layer on the TCP/IP Model. Just like every application layer protocol, DNS uses the User Datagram Protocol (UDP) on the Transport layer of the TCP/IP model to transport data.

Which one of the following protocol belongs to application layer?

1 Answer. A . The Hypertext Transfer Protocol (HTTP) is an application protocol for distributed, information systems.
