What is a typical U-value?

Typical values

Solid brick wall: 2 W/(m²K) Cavity wall with no insulation: 1.5 W/(m²K). Insulated wall: 0.18 W/(m²K). Single glazing: 4.8 to 5.8 W/(m²K).

What is the best U-value for double glazing?

Modern double glazed units use Low Emissivity Glass (Low-E) and argon or krypton gas in the cavity and the best double glazed windows can achieve a U-value in the region of 1.2 W/(m²K).

What is a good U-value of glass?

Building Regulations U Values for Glass

When renovating or extending a home the glazing elements must have a Uw value of 1.6 W/m2K or better.

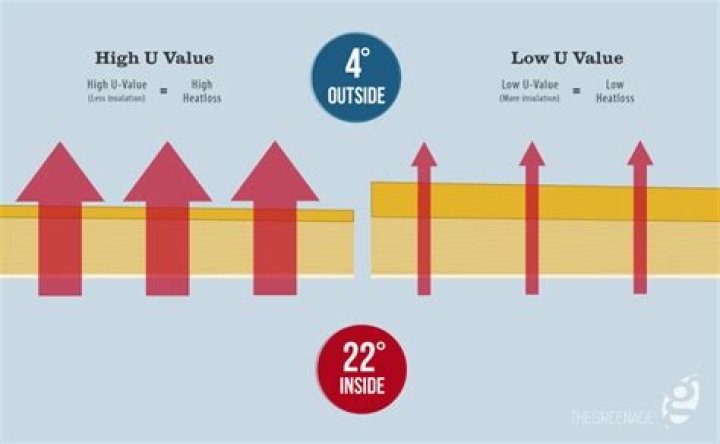

Do you want a low or high U-value?

The lower the number, the better the insulating performance. U-values generally range from 0.1 (very little heat loss) to 1.0 (high heat loss).

10 Reasons Why CS 1.6 Was Better Than CS:GO

Is 1.2 A good U-value for windows?

', according to Part L1A of current Building Regulations a domestic window installation should achieve a U-value no higher than 1.4 W/m²K*. Typical u values for windows that are double glazed record a U-value of between 1.2 W/m²K and 3.7 W/m²K, while triple glazed windows are usually rated below 1 W/m²K.

What is a good U-factor?

In a cold climate a good U-factor for a window is between 0.17 and 0.39. (That's between R-6 and R-2.5). Lower is better with U-factor--the opposite of R-value, when higher is better.

What insulation has the best U-value?

Obviously, the insulation material will improve the U value. The best currently available is the Val-U-Therm system (available from Scotframe) with a U value of 0.09W/m2K from a wall thickness of 235mm, plus the outer skin.

What is the U-value of a single glazed window?

The single-glazed window achieves a U-value of 4.8, but it is interesting to note that significant improvements can be made by benign measures such as closing internal shutters, which brings the U-value down to 3.0. Adding secondary glazing can bring it down to 2.9, depending on its design and quality.

What U-value should new windows be?

Generally, the lower the U-Value of a window the better. Low U-Values indicate that a window will perform well in maintaining the indoor temperature of a customer's home. Recently building regulations have changed, meaning that new windows must have a u-Value below 1.6 W/m2k.

How do I increase the U-value of a window?

In order to achieve a further improvement of the U-values of the window frame, a larger insulating zone could be utilized, for example, by wider distances between the aluminum frame shells of the window profile.

Which windows have the best U-value?

Put simply, double- and triple-glazing have become the standard of energy-efficient windows. Moreover, the Efficient Windows Collaborative says glazing makes for better insulation performance: double-pane windows can have U-values of 0.3 or even lower, while some triple-pane windows can be as low as 0.15.

How do you get the 0.18 U-value wall?

To meet 0.18 W/m²K, cavity walls will need either a full-fill cavity, additional internal insulation or have a cavity greater than 100 mm.

What is the U-value of Low-E glass?

This type of glass is called low-emissivity, or low-e, glass. A double-pane window with a low-e coating has a U-value of about 0.36, which translates to 35 percent less heat gain or loss than conventional double-pane windows.

How do you reduce U-value?

By adding insulation to the walls of your home, you reduce the U-value and in turn you will save money on your heating energy bills.

Do you lose heat through double glazing?

Double glazing works by trapped air between the two panes of glass acting as an insulator, reducing hear loss from condition from the inner glass to the outer glass. Using efficient double glazing can reduce the heat loss from windows by over 50%.

Is triple glazing worth it UK?

Triple glazing can help reduce condensation on your windows. Triple glazing offers a significant reduction in noise pollution – so it is ideal for those living in noisy areas. Double glazing can create cold patches in the house, due to the higher u value of windows compared to walls and doors.

Why are double glazed windows better than single glazed?

Energy efficiency – not only does double glazing 'double up' on the glass which in itself helps to create efficiencies, but the gap between the two panes creates even more effective insulation. This prevents the transfer of hot and cold energy alike, providing a far superior thermal insulation for the home.

What is a good U-value for a house?

In 2018, Part L building regulations for standard replacement doors and windows specified that a product should have a U-Value no higher than 1.6 for windows, and 1.8 for doors.

What is the current U-values for walls?

The best insulating materials have a U-value of close to zero – the lower the better. Building regulations currently stipulate that for a new building, the elements must have maximum U-values as follows: Wall – 0.3 W/m²k.

What does a low U-value mean?

U-values measure how effective a material is an insulator. The lower the U-value is, the better the material is as a heat insulator.

What is the best thickness for double glazing?

double glazing grew from an overall thickness of 20mm to 24mm and finally settled on 28mm even though thermally, with either air or argon cavities, 24mm is the optimum size.

How can you reduce the U-value of glass?

Improving the U-value of windows

Radiated heat transfer can be reduced by using glass with a low-emissivity or low-E coating. Heat loss by conduction and convection can be reduced by replacing the air in the unit cavity with a gas with lower thermal conductivity (generally argon).

Is double or triple glazing better?

1) Triple glazing is approximately 40% more thermally efficient than “A” rated PVCu double glazing so energy savings are far higher. 2) Triple glazed windows and doors will further reduce draughts and cold spots in a room that currently has less thermally efficient windows and doors.
