How Big Should brick mortar joints be?

Mortar joints are typically 3/8", but can vary from 1/4" to 1/2" — we cover this more in our brick sizes article. Bed joints are the horizontal mortar joints, or the bed of mortar that the next brick sits on. Full mortar bedding joints cover the entire top of the masonry unit and are the most common bedding type.

How thick should mortar be between brick?

Mortar Thickness

The building code for weight-bearing brick walls calls for mortar to be no more than 3/8 inch thick. The thickness of the mortar can vary in other types of structures from 1/8 inch to ¾ inch, according to the MC2 Estimator's Reference website.

How thin can a mortar joint be?

Thus, width of bed joints should be at least 1/4 inch to permit proper tooling and no more than 1/2 inch to provide adequate strength. ASCE 6-88, Specification for Masonry Structures, provides for head joint widths from 1/8 to 1/4 inch and bed joints from 1/4 to 1/2 inch thick.

How thick should a mortar joint be on block wall?

Mortar joints

All finished joints should be 8–10mm thick.

Tooling Mortar Joints

How thick should my mortar bed be?

With a standard thinset the maximum bonding thickness should never exceed 3/8 inch. If something is classified a medium bed mortar it is typically good for a maximum bonding thickness of ¾ inch.

How thick should mortar mix be?

The mortar should be fairly thick, like thick peanut butter. The thickness and consistency of the initial mix should be the same consistency of the final mix. Slaking is necessary! Do not add more water or mortar mix after the mortar slakes.

How thick should brick grout be?

4. Minimum thickness of mortar or grout between brick and reinforcement: 1/4 in. (6.4 mm), except: a. 1/4 - in.

How thick should mortar be under slabs?

The depth of the mortar bed should be approximately 35-40mm deep. Ideally starting from a right angle or straight edge, place the slab down. Gently tap with a rubber mallet or press down with your hands and use a spirit level to ensure to make sure the slab is level and in line with your proposed design.

What is the gap between bricks?

Those gaps are called “weep holes” — a building code requirement that drains water out of brick exterior walls. Typically, behind the brick is a 1.5-inch cavity or air space and then the wood structure.

What is the thickness of mortar between the two layers?

The thickness of cement-sand mortar between layers of bricks should not be more than 0.5-inch.

How thick can you pour mortar?

Mortars cannot be used to level or patch a floor – ever! The materials used in mortars render the product unstable once the thickness exceeds the manufacturers' recommended maximum thickness. Most thin-set mortars have a maximum thickness of 1/4" (6 mm) and medium-bed mortars have a maximum of 1/2" (12 mm).

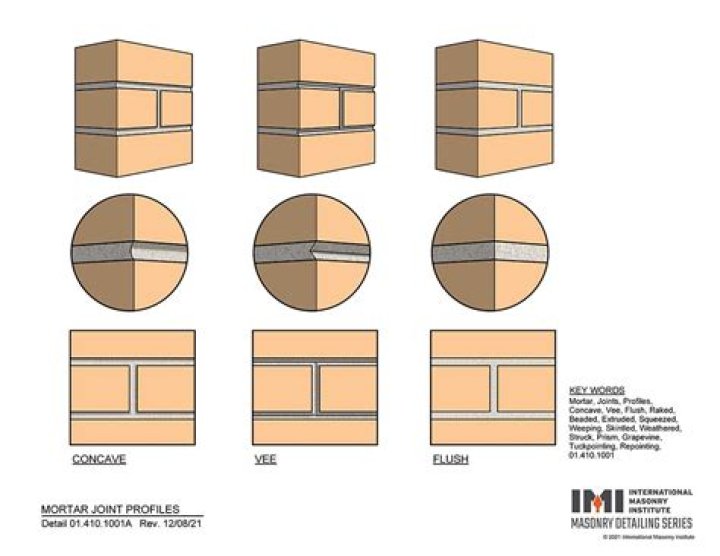

What is the most ideal shape for a mortar joint in a brick wall?

CONCAVE JOINT- This is the most common joint used in masonry construction. The tooling works the mortar tight into the joint to produce a more consistent weather joint. The pattern is emphasized and small irregularities in lay-ing are concealed.

What is the nominal minimum width of mortar Perpend & bedding joints?

PERPEND, MORTAR & BEDDING JOINTS

As a general rule, all Mortar, Bed and perpend joints should not be less than 5mm or greater than 20mm.

What is the most common mortar joint?

Concave Joint: The concave joint is the most common joint that is used, as it is also known as the best joint for preventing water penetration. Tooling works the mortar tight into the joints, which produces better weather resistance.

Is it best to lay slabs on sand or cement?

We'd always, always recommend bedding slabs down. Whilst you may get away with it in some instances, the vast majority of slabs won't stay put when laid straight onto sand. We'd recommend bedding the slabs down with a simple mortar mix each and every time.

How much space should be between patio slabs?

Ideally it wants to sit 15mm in the mortar. Repeat this process, leaving a 10-15mm gap between each paving slab, until your patio is covered. Once you've laid your patio, spray the whole area with water until it's completely saturated, and leave it to set for at least 24 hours.

How thick should cement be for patio?

Four inches is the minimum thickness for a concrete patio. You'll want to make it six to eight inches thick if the patio will support a structure such as a gazebo or hot tub.

How much mortar is too much?

Too much thinset creates a mess and inhibits proper bonding between the tile and the substrate. For most tiles, apply a layer of thinset 3/16–1/8-inch thick. Do not attempt to use more thinset in order to level a surface.

How do you make mortar stick better?

1. Moisten the application area using a garden hose outside or plastic spray bottle indoors. ...
2. Use a good quality tile mortar with latex to set your tiles or stones. ...
3. Mix in powdered latex bonding agent, an additive commonly used to turn any type of mortar into a stickier, flexible finished product.

What is the best mix for pointing brickwork?

A typical mortar mix for Repointing purposes, for use in an area subject to normal weather conditions, would comprise 1 part Portland Cement, 1 part Lime and 5½ parts Sand.

Why are mortar joints tooled?

Proper tooling increases resistance to water penetration along the wall. The “jointer” tool compresses the mortar against the unit, helping seal any separation cracks that might form at the interface. The action of the jointer on the unset mortar brings the concrete fines in the mortar to the surface.

When should mortar joints be tooled?

Ridges form as the wet mortar sticks to the tool. Joints are not properly compacted if tooled when they are too stiff. These joints must be aggressively worked and often have a darker appearance in the completed wall. Joints should be tooled when they are just stiff enough to support a thumbprint for best compaction.
