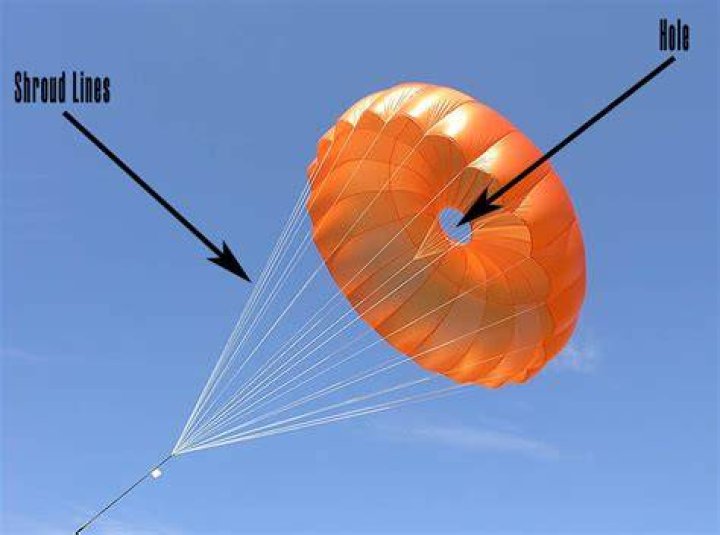

How many shroud lines should a parachute have?
Daniel Hoffman How long should shroud lines be on a parachute?
Standard shroud length is 115% of the canopy diameter. The shroud connection pattern we use is called a "hand bag" closure. Rather than each shroud line connecting as a simple loop to the seam next to it, the lines connect from one side of the parachute to the other.
How many lines should a parachute have?
Most modern parachutes have five sets of lines called the A-lines, B-lines, C-lines, D-lines and brake lines. There is the AAD, also known as the automatic activation device.
How many ropes are on a parachute?
The braided sheath is usually made up of 32 interwoven strands, giving it a relatively smooth texture. The all-nylon construction makes paracord somewhat elastic. Current technical standards for the manufacture of cord for use in parachutes are published by the Parachute Industry Association.
How long should parachute cords be?
The stitching length, which is the length of cord sewn to the canopy, should be between 5% and 10% of the basic parachute diameter. Less percentage length is required for smaller parachutes, more for larger.
How to pack a Competition Parachute
How big should the hole in a parachute be?
Spill holes keep the pressure from getting so high that the parachute has to rock from side to side to release it. The spill hole needs to be about 20% the diameter of the parachute.
What is the most effective parachute design?
The circle parachute should demonstrate the slowest average descent rate because its natural symmetrical shape would be the most efficient design to maximize wind resistance and create drag.
How many strings is best for a parachute?
Use 12 to 16 lines, each 1.5 times the parachute canopy diameter in length.
Why do military parachutes have holes?
In short, the hole is there for stability reasons, to stop the parachute from flapping erratically and collapsing. Allowing air through doesn't technically make you fall more slowly, but it makes the parachute work as intended and even lets the jumper decide the direction rather than the wind.
How do you make a parachute fall slower?
The larger the surface area, the more air resistance and the slower the parachute will drop. Cutting a small hole in the middle of the parachute will allow air to slowly pass through it rather than spilling out over one side, this should help the parachute fall straighter. Take it Further!
What is a cruciform parachute?
A third general type of parachute is the cruciform or cross parachute in which the canopy includes a crown or center section of generally square shape with four wings or arms attached to each of the four sides of the square center section and extending laterally therefrom.
Does the size of a parachute affect how fast it falls?
4. The size of the parachute affects the speed of falling because a larger parachute allows it to displace more air, causing it to fall more slowly.
Why are there holes in the top of a parachute?
Some parachutes have a hole in the center to release air in a controlled way. It makes the chute more stable, with only a minimal change in drag.
How long should bottle rocket parachute strings be?
3 feet of heavier nylon string or cord.
How much fabric do I need to make a parachute?
One parachute manufacturing plant lists its monthly materials use as exceeding 400,000 sq yd (330,000 m 2 ) of fabric, 500,000 yd (455 km) of tape and webbing, 2.3 million yd (2,000 km) of cord, and 3,000 lb (1,400 kg) of thread.
How fast does a paratrooper hit the ground?
Paratroopers usually land at a speed around 13 mph, resulting in a landing force that is comparable to jumping off of a 9-12 foot wall. 4 The PLF is used to spread the forces of impact across various parts of the body instead of a single part (such as ankles). This greatly reduces your risk of injury.
How does the number of strings affect a parachute?
We observed that the longer the strings,, the bigger the surface area of the parachute. Since the surface area was larger for the 45cm strings this causes more air resistance which means a longer hangtime.
What height do paratroopers jump from?
In typical HALO/HAHO insertions the troops jump from altitudes between 15,000 feet (4,572 m) and 35,000 feet (10,668 m). Military parachutists will often reach a terminal velocity of 126 mph (202.78 km/h), allowing for a jump time under two minutes.
How do you make a parachute more efficient?
Activity
- Cut your paper into a square.
- Punch a hole in each corner of the square.
- Tie a piece of string to each corner.
- Tie the free ends of the strings to your washer or other weight.
- Test your parachute! Stand up tall and let it drop.
Can a parachute be too big?
The risk is with too big a parachute, it may get carried off by the wind, so you want the smallest chute that's still effective at preventing damage to the rocket.
What material is best for a parachute?
Nylon has since become a popular choice, as it has excellent wind resistance, good elasticity, mildew resistance, and is comparatively cheaper. The material is also lightweight and dries quickly. It is resistant to abrasion and chemicals.
Why are round parachutes better?
In the past, all parachutes were round, which seems best for collecting air, staying inflated and settling slowly to the ground. So why do almost all skydivers now use rectangular chutes? Round parachutes were great, mainly for their reliability—a prized attribute in a parachute!
Why do bigger parachutes fall slower?
How large a parachute is (in other words, the parachute's surface area) affects its air resistance, or drag force. The larger the parachute, the greater the drag force. In the case of these parachutes, the drag force is opposite to the force of gravity, so the drag force slows the parachutes down as they fall.
How long does it take for a parachute to slow you down?
Parachutes are designed to reduce your terminal velocity by about 90 percent so you hit the ground at a relatively low speed of maybe 5–6 meters per second (roughly 20 km/h or 12 mph)—ideally, so you can land on your feet and walk away unharmed.
