How many mesh points do I need?

We recommend a maximum of five Wifi points in a single network. Adding more may be detrimental to Wi-Fi performance. The Google Home app supports only one Wi-Fi network per home, but you can create up to 5 homes, with a single Wi-Fi network in each.

How far apart can mesh nodes be?

A good rule of thumb is to place the second node halfway between the router and the dead zone as you would with a range extender, but limit the distance to no more than two rooms, or about 30 feet. If you're using more than one satellite, follow the two-room rule.

Can you have too many mesh nodes?

Joel cautioned, however, that you shouldn't overdo it: There's such a thing as adding too many nodes/beacons, which can start to cause wireless problems. Two nodes should be sufficient for anyone living in an average-size home (about 2,300 square feet, according to the U.S. Census Bureau).

How many Wi-Fi mesh units do I need?

You need at least two hardware units to form a mesh — many canned systems are available as a 2-pack. One acts as the router and connects to the Internet, and the other links to the first one — wirelessly or via a network cable — to extend the Wi-Fi coverage.

What is Mesh Wifi (& Why You Should Absolutely Get One)

What are the disadvantages of a mesh network?

Disadvantages of Mesh Topology :

• It's costly as compared to the opposite network topologies i.e. star, bus, point to point topology.
• Installation is extremely difficult in the mesh.
• Power requirement is higher as all the nodes will need to remain active all the time and share the load.
• Complex process.

Can mesh WiFi go through walls?

Yes, the WiFi signal may pass through walls and through floors or ceilings, but the details make the difference. If the router is located central in the space with the mesh points in opposite directions or covering different floors, it might do just fine to cover a larger home.

How many Velop nodes do I need?

We typically recommend one to two Velop nodes per floor. You can always start there and test out various ways of placing your Velop to maximize your coverage. Since every home is different, you can always add an additional Velop where needed.

How far apart should Velop nodes be?

*Extensions placed every 50 feet between router and endpoint.

Can I add a 4th node to Linksys Velop?

You can't connect more than three nodes to a Velop mesh, so if you buy more than three know that you'll be creating more than one network. You'll also need an available ethernet port in your modem, router, or switch. Finally, you'll need the Linksys app from either the Google Play Store or the Apple App Store.

Can WiFi mesh nodes be too close?

If they are placed too closely together, devices may not smoothly switch (roam) from node to node due to too much overlap between mesh nodes. Too-close placement also means coverage may suffer because APs are not getting close enough to the areas they need to cover.

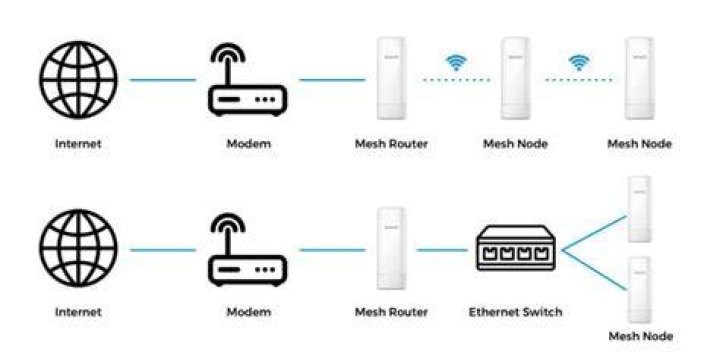

Do mesh nodes connect to each other?

WiFi mesh networks use multiple nodes that communicate with each other to share a wireless connection within a larger area. One node acts as your main mesh WiFi router. It connects to your internet modem or wireless gateway (a combination of a wireless router and a modem).

Can you have too many Wi-Fi access points?

Although common sense may suggest "more is better," too many wireless access points (APs) quickly leads to excessive radio frequency (RF) broadcasting as well as wasted resources on unused APs. Consider the requirements of the space and expected number of connected devices.

How many devices can be on a mesh network?

Note that mesh Wi-Fi systems still have the same theoretical device limit because they all operate on the same network with the same IP address range. But where a single router might be able to cope with 32 devices, three routers (nodes) in a mesh system can each handle 32, bringing the total to almost 100.

Do mesh routers slow down Internet speed?

In a mesh network, every link, or “hop,” between routers will decrease the bandwidth by half. This happens because wireless links can only do one thing at a time - transmit or receive. In a long “chain” of mesh links, this results in a very slow connection from end to end.

Can Linksys Velop nodes be too close?

It works brilliantly too, provided the nodes aren't placed too close together (more on that later). If a node loses connection, the remaining nodes self-heal and re-establish an Internet connection through other nodes in the network.

Can you mix and match Velop nodes?

This has the advantage that you can mix-n-match units and buy more if your home or office expands. Velop is an 802.11ac system with dual band operation and Mu-MIMO and as its model name suggests, it can deliver a data speed of 1300Mb/s.

How do I make my Linksys Velop faster?

Use the Channel Finder feature in the Linksys Smart Wi-Fi app to optimize the performance of the Velop system. You can find it in the Menu > Wi-Fi Settings > Advanced Wi-Fi Settings > Channel Finder. If the light is still yellow, try placing the node closer to the primary node.

Is Linksys Velop true mesh?

Linksys Velop: Function and performance. The Linksys Velop is a true mesh system. If you purchase a three-pack of nodes (opens in new tab), any one of them can serve as the link to the outside internet using your modem.

How many devices can Velop handle?

The Velop system can support up to 245 devices, both wired and wireless.

What is the difference between Linksys Velop AC2200 and AC6600?

Linksys Velop ideal usage

The tri-band Velop is classed as an AC6600 device, but that's if you add up all three nodes. The theoretical speed per node is AC2200, thanks to two 5GHz bands at 867Mbps each and one 2.4GHz band at 400Mbps.

What is the best mesh WiFi setup for large homes?

• Google Nest Wifi. Google Wifi and Home together at long last. ...
• Asus ZenWiFi AX (XT8) Wi-Fi 6 meets mesh routers. ...
• Netgear Orbi Quad-Band WiFi 6E. High-end Wi-Fi 6E performance. ...
• Netgear Orbi Pro WiFi 6. ...
• Linksys Velop WiFi 6 AX4200. ...
• Netgear Orbi 5G WiFi 6. ...
• Netgear Nighthawk MK83. ...
• Netgear Orbi Whole Home Mesh WiFi System.

How do I extend my WiFi signal to another building 400 feet away?

With proper line of sight, you can extend your WiFi signal outside of your building to another using a wireless bridge . A wireless bridge uses a microwave or infrared transmission to span a single Internet connection across two or more buildings.

Is mesh WiFi good for concrete walls?

Netgear Orbi Mesh Wifi 6 System

One of the most powerful whole-home wireless network systems is this mesh product. It's expensive, but if you have good internet and want a signal that can penetrate through thick concrete walls then it might be what you're looking for!
