What is dissipation factor test?

Dielectric dissipation factor testing, also known as tangent delta or power factor testing, is a measure of the dielectric losses in an insulation system. In the field of rotating machines, this technique is widely used as an appropriate means of assessing the quality of new and also aged stator winding insulation.

How is the dissipating factor of a capacitor is measured?

The dissipation/power factor measurement is a high-voltage AC test. The value is measured by comparing the test object to a known standard reference capacitor (C). The test voltage and frequency as well the main insulation capacitance determine the required test current.

What is dissipation factor and quality factor?

In physics, the dissipation factor (DF) is a measure of loss-rate of energy of a mode of oscillation (mechanical, electrical, or electromechanical) in a dissipative system. It is the reciprocal of quality factor, which represents the "quality" or durability of oscillation.

What is dissipation factor in PCB?

Dissipation factor, also known as loss tangent, is a printed-circuit-board (PCB) material parameter probably often overlooked when engineers size up their possible choices for PCB materials. But it is a parameter that can tell a great deal about how a material will perform in different applications and environments.

Power Transformer Testing - Measuring capacitance and power factor or dissipation factor

What is the difference between Dk and Df?

The term "Dk" refers specifically to the real part of the dielectric constant (i.e., the refractive index), while the term "Df" refers to the imaginary part. Note that the imaginary part of the dielectric constant only determines losses, while the real and imaginary parts collectively determine dispersion.

What is dissipation factor in dielectric analysis?

Dissipation factor is defined as the reciprocal of the ratio between the insulating materials capacitive reactance to its resistance at a specified frequency. It measures the inefficiency of an insulating material.

What is the unit of dissipation factor?

Dissipation Factor is a dimensionless measure and hence no units.

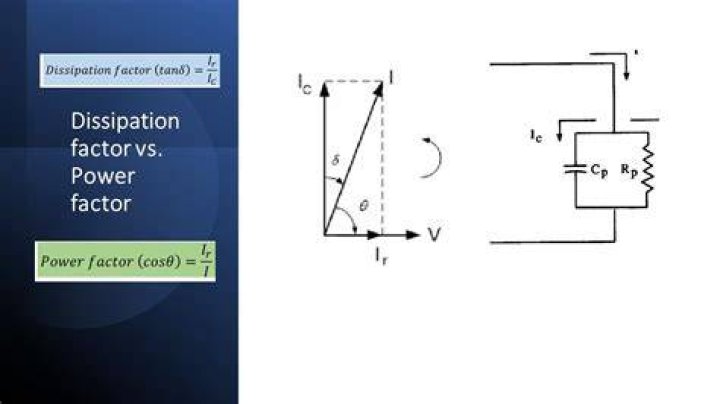

What is dissipation factor in tan delta?

In another way, the healthiness of an electrical insulator can be determined by the ratio of the resistive component to the capacitive component. For good insulator, this ratio would be quite low. This ratio is commonly known as tanδ or tan delta. Sometimes it is also referred to as dissipation factor.

What is a good dissipation factor for a capacitor?

1 ( 10%) or less, a ratio figure known as the "dissipation factor" (DF) is more commonly used.

Is dissipation factor same as loss tangent?

Loss tangent (tan(δ)) (also referred to as dissipation factor (Df) by many PCB manufacturers) is a measure of signal attenuation as the signal propagates down the transmission line. This attenuation is the result of electromagnetic wave absorption in the dielectric material and is commonly known as dielectric loss.

What is D in capacitance measurement?

D, the dissipation factor, is a value that represents the tendency of an insulating or dielectric material to absorb some of the energy in an AC signal. Q, the quality factor, is the inverse of D. G is the equivalent parallel conductance measured with the parallel equivalent circuit model.

What is DF power?

Dissipation Factor

With the exception of electrolytic and large power capacitors, most wound dielectric type units utilize a ratio figure known as the "dissipation factor" (OF) instead of the Power Factor (PF). By definition, this DF is the ratio of the equivalent series resistance to the reactance.

What does tan delta measure?

Tan delta (Tan δ, TD) testing, also called dissipation factor or loss angle, is used for measuring the degree of deterioration of shielded MV/HV cable insulation. The results reveal how contaminated, damaged, or water tree strewn the insulation has become.

What is tan delta testing and how is it measured?

A Tan Delta test is performed by applying an ac voltage to a test cell of known gap, measuring the total current flow through the oil, and separating and comparing the reactive and resistance portions of the current passing through the oil.

What does high dissipation factor mean?

Dissipation factor indicates the inefficiency of material to hold energy or behave as an insulating material. The lower the dissipation factor, the more efficient is the insulator system. Most plastics have relatively lower dissipation factor at room temperature.

What is dissipation factor of transformer?

The dielectric dissipation factor tan δ measured with a Baur DTL-C provides information on the extent of dielectric losses in the transformer oil occurring during operation. It is defined as the ratio between the active and reactive currents flowing in a measurement circuit.

Why is dissipation factor negative?

THE NEGATIVE DISSIPATON FACTOR

As the dissipation factor indicates the quality of insulation materials by the tangent of the ratio of resistive current IR to capacitive current IC, a negative dissipation factor would imply a negative resistive current, which is physically impossible.

What is dielectric constant and dissipation factor?

Dielectric Constant and Dissipation Factor – The relative dielectric constant; for practical purposes, the ratio of the capacitance of an assembly of two electrodes separated solely by a plastic's insulating material to its capacitance when the electrodes are separated by air (ASTM D150-59T).

What is PCB Dk and Df?

Abstract: Substrate effective dielectric constant (DK) and dissipation factor (DF) are important parameters for the printed circuit board (PCB) design. A novel algorithm based on the Wheeler incremental inductance method for extracting the dispersive material properties on rough conductor PCBs are proposed.

What is DK in material?

DK represents a dielectric' capacity to store electrical energy and hinder signal transmission. High-frequency/high-speed PCBs function as antennas to generate and receive high-frequency/high-speed signals and signal delay on the circuit board is not expected. So a high-frequency PCB should use material of low DK.

What is effective dielectric constant?

The effective dielectric constant is a seen to be a function of the ratio of the width to the height of a microstrip line (W/H), as well as the dielectric constant of the substrate material. Be careful, the way it is expressed here it is also a function of H/W!

When an AC voltage is applied to an insulating material then power is dissipated in the material this dissipated power is called?

There is a definite amount of dissipation of energy when an insulator is subjected to AC voltage. This dissipated energy is known as the dielectric loss. In commercial insulators, the leakage current (a current that flows to earth through the insulator) does not lead the applied voltage by exactly 90^o.

What is K in capacitor?

Also, sometimes capacitors are marked with the capital letter K to signify a value of one thousand pico-Farads, so for example, a capacitor with the markings of 100K would be 100 x 1000pF or 100nF.

How capacitor is measured?

Capacitance is expressed as the ratio of the electric charge on each conductor to the potential difference (i.e., voltage) between them. The capacitance value of a capacitor is measured in farads (F), units named for English physicist Michael Faraday (1791–1867). A farad is a large quantity of capacitance.
