How far should a screw be from the edge of wood?

In the withdrawal case, the edge distance requirement is 3*D (often presented as 3D), 3 times the outer thread diameter of the screw as specified in our Structural Screw Catalog (Note: we are using the American version here).

How far does a screw need to go into a stud?

The ideal depth a screw should go into a stud is 3/4 of the length of the screw's bottom part. Experts say that half of the length is alright. You'll have to consider any material between the screw and the stud.

How far should you drill into wood?

Pilot holes guarantee that your screw won't break off and your wood won't crack. For most hardwoods, the pilot hole should be at least as large as the screw's minor diameter. If the screw has deep threads, or the wood is very hard, the pilot hole should be another 1/64-in.

How deep should a pilot hole be?

Drill until your pilot hole is the same depth as the length of your screw or nail. Many experienced do-it-yourselfers can eyeball the depth, but if you aren't yet that experienced, you can use a drill stop to mark the appropriate depth.

Tips for Driving Wood Screws | Rockler Skill Builders

How do I find the right hole for a screw?

First, measure the diameter with a Vernier caliper. Choose the closest reading screw size on a screw thread gauge. To measure the depth of the hole, place a toothpick into the hole and mark it. Then measure the length of the tip to the mark.

What is screw clearance?

A clearance hole will allow a screw to pass through it without the threads biting into the material. This is particularly important when using screws with threads that are formed on the entire length of the screw shank, as with drywall screws.

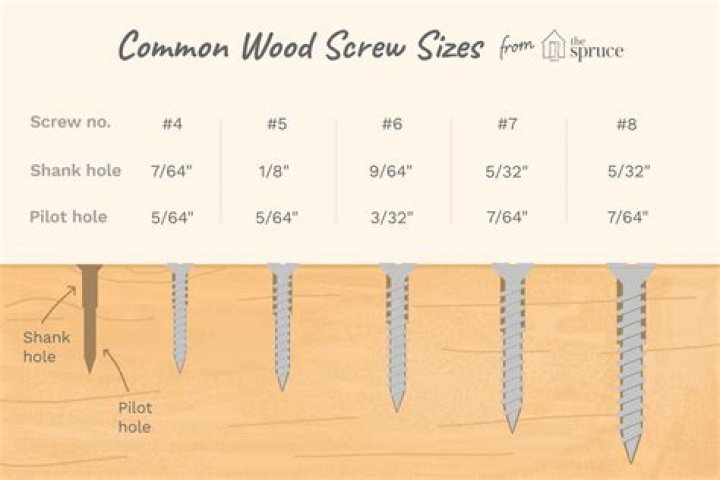

What size hole should I drill for a screw?

As a general rule, a pilot hole should be the same diameter as the neck of the screw. A common mistake woodworkers make is drilling the pilot hole too small, thinking that the screw will hold better in a tighter space.

How far should screw go into shelf?

The screw should go into a WOOD stud a minimum of 3/4” to develop “full strength “. Add 1/2” for gypsum board wallboard (probably) plus the thickness of the backing on the bookcase... probably 1/4”.

How long should screws be for 2x4?

The most common screw for joining two-by-fours is hardened steel, structural, No. 9, 2 1/2 inches long with a Phillips head. Other screw types appropriate for studs are specialized and may be harder to find and more expensive. It's important that the screw is designated as a structural screw or a deck screw.

Is screwing into end grain OK?

Because wood is relatively weak perpendicular to its grain, screws don't hold that well when screwed into the end grain. This firstly because the thread has a harder time cutting into the grain fro the side, and also because what it does grab shears out more easily, as the shear is cross-grain.

What is the distance between screws?

Screws in wall edges should be spaced about eight inches apart.

What length screw should I use?

When choosing a screw length it's important to remember that the nail should always be three times as long as the thickness of the material in which it will be driven into. To find this: hold the screw up against the piece you're putting it through and select a nail approximately three times the thickness.

Should you predrill wood screws?

Hole Location

If you're inserting a screw in a small piece of wood, or near the edge of a piece of wood, drill a pilot hole first. Because your screw is closer to the edge, the addition of the screw to the piece creates force that could crack the wood.

Why is my wood splitting when drilling?

These are weak areas of the wood that make it more likely the wood will split when you drill into it. Also, you want to use the right drill speed for your drill bit. If you use a drill speed that is too slow or too fast for your drill bit, it can make it more likely the wood will split.

What is a clearance hole for bolt hole?

A clearance hole is a hole through an object which is big enough to enable threads of a screw or bolt to pass through but not the head of the screw or bolt. It allows a screw to pass through it without the threads biting into the material.

What will happen if you don't use a countersink?

With wood if you don't countersink and force the screw into the surface it will not only look bad, but the stability of the wood will be compromised. The wood can crack and split from the screw being forced and the fibers become damaged and dented.

Are bolt holes always clearance holes?

Most bolt holes are made with “standard” clearance and are considered a normal fit. A normal fit provides relatively accurate positioning of assembled components while still allowing for slight misalignment.

Does screw length include head?

Does the length measurement of a bolt include the head? In most cases, when specifying the length of a headed bolt, the thickness of the bolt head is not included. For instance, if you were to order a ¾” x 24” hex head bolt, the bolt would measure 24” from under the head.

How do you measure a wood screw?

Measure from the sharp tip of the screw to where the head would naturally sit flush once the screw is driven in.

1. For the round head screw on the left, the length will be measured from the flat underside of the screw head.
2. For the flat head wood screw the measurement can be started at the top of the screw.

How do you measure a pilot hole?

The typical pilot hole should be pre-drilled 3% larger than the “across the flats” dimension of the Broach for hexagons and 10% larger for square shapes. For example, if you are using a 1/4” Hexagon Rotary Broach, the across the flats dimension is . 2525”, therefore your pre-drill dimension would be about . 260”.
