How does a go no go thread gauge work?
Olivia House What is difference between go and Nogo thread gauge?
GO or NOGO or Master Defined
A GO cylindrical plain gage is intended to go into/onto the piece being tested. The GO is testing the maximum material condition. A NOGO cylindrical plain gauge is intended not to go into/onto the piece being tested. The NOGO is testing the minimum material condition.
How many turns are allowed on a no go thread gauge?
“A NOT GO screw ring gage, when screwed by hand without using excess force on the work piece thread, may enter on both sides by not more than two turns of thread.” “The NOT GO thread can not be screwed two revolutions or more.”
How accurate is a go no go gauge?
The sum of the go and no-go gage tolerances should not equal more than 10% of the total product tolerance (the 10% Rule). The go gage is fairly straightforward. The go must pass freely through the entire length of the hole.
How do you use Go No Go pin gauges?
To inspect hole size of a part, the Go gage is inserted into the hole. If the gage can be entered into the hole, then the hole is considered to be above its low limit. Following that, the No Go gauge is used: if it enters the hole, than the hole is too big.
How To Use Thread Plug Gages Technical Series 101
Are pin gauges accurate?
These gages have an inch tolerance of . 0002” and a metric tolerance of . 005mm. They are practical where good precision and speed are important.
What is meant by go no go gauge?
Go - No Go gauges are manual mechanical measuring tools used in production lines to guarantee the machining has taken place and it has been performed correctly. They differ from each other based on the type of surface check being performed; for example geometry and/or dimension.
What is the purpose of the Nogo thread ring gauge?
The NOGO screw thread ring gage is designed only to check the pitch diameter position. Because of its intended function, the major diameter is increased in size so that it does not engage the test product at all.
Why do you need a headspace gauge?
Headspace gauges are used to check one aspect of a firearm's suitability for use. If the headspace is less than minimum, factory loaded cartridges may not fully chamber in the firearm, the action may not close fully, and it may not fire.
What is the most accurate method of manufacturing threads especially for making gauges?
Vitrified wheels are utilized for obtaining extreme accuracy in thread form and lead because they are very rigid and not easily deflected by side pressure in grinding. This rigidity is especially important in grinding pre-cut threads on such work as gages, taps and lead-screws.
How do you use NPT thread gauge?
For NPT threads there is only one test required. Thread the L-1 gage onto or into the tapered thread until the fit is hand tight. When the gage stops, the notch on the plug gage or the flat of the ring gage, should be within plus or minus one turn from the entry face of the thread.
What is the pitch diameter of a thread?
PITCH DIAMETER-The basic thread pitch diameter is the diameter where the thread thickness is equal to the space between the threads. If the flats at the top and bottom of the thread are the same, the pitch diameter will coincide with the middle of the sloping side of the thread.
In which gauge go and no go end are provided at the same end?
Double Ended Plug Gauge:
One side is GO end and other side is NO go end. This is used for sizes upto 63 mm.
What is the effect of wear on the size of go snap gauges?
What is the effect of wear on the size of 'Go' snap gauges? Explanation: Due to wear, size of 'Go' plug gauge decreased while size of 'Go' snap gauge is increased. Absolute accurate gauge can't be made by gauge makers. So, it is important to assign some deviation to gauges.
Should a bolt close on a no go gauge?
A rifle with the correct headspace should close easily and without feel on the GO gage, but should not close on the FIELD gage. If it does close on the NO-GO gage, but not on the FIELD gage, the rifle is still serviceable.
Can you use a bullet to check headspace?
Headspace gauges are usually cartridge specific, though cartridges that use the same parent case, like . 30-06 and . 270 Winchester, use the same gauge. You'll need a GO and a NO-GO gauge for each cartridge.
Are 223 and 5.56 headspace gauges the same?
What's the difference between 5.56 NATO and . 223 caliber Headspace Gages? Though commonly thought to be identical, the 5.56 NATO allows a slightly longer headspace than the commercial . 223 caliber.

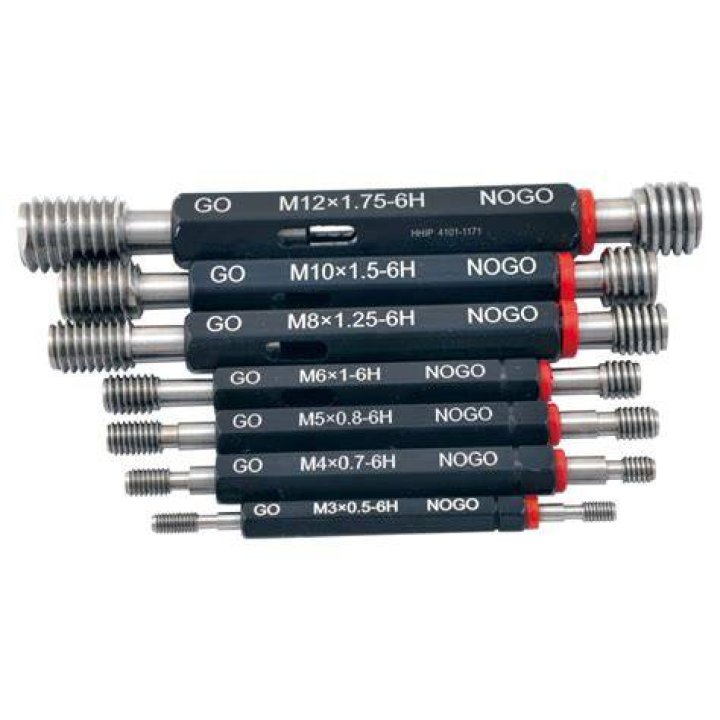

How do thread plug gauges work?
A thread plug gage is designed to check the pitch diameter (to the given pitch / Threads per inch). In order for the part to pass inspection and be accepted, the GO gage should pass through the entire length of the nut, without requiring the use of too much rotational force.
What is G in thread gauge?
External threads (bolts): small "e" = large allowance, small "h" =no allowance, small "g" = small allowance.
Which type of gauge is go and no go gauge?
Go and No Go type of snap gauges consist of two jaws. The first jaw allows parts to pass, whereas the second jaw stops the part. In this way, you can verify if the part width is within limits.
What are pin gauges?
Pin gauges are cylindrical pin shaped plugs sized to a high precision. The main function of a pin gauge is to inspect the inner diameters of your workpiece. They are commonly used similarly to a Go and No-Go gauge to qualify whether a hole is within a certain specification.
How do you calibrate pin gauges?
Ring, Pin, Plug, Disc Measurement - Calibration
- Use a soak plate.
- Keep gages and masters close together.
- Allow enough “soak time” for gages to acclimate (2-24 hours, depending on gage size)
- Measure gages quickly.
- Sandwich readings (master, gage1, gage2 . . . , ...
- Use gloves or tongs to handle gages.
What is the difference between Class Z and Class ZZ gage pins?
Class Z Gages - These gages have an inch tolerance of . 0001” and a metric tolerance of . 0025mm. They are one half the deviation of the ZZ for a better fit.
How do I know my gauge tolerance?
The industry standard is referred to as the Ten Percent Rule. This common rule of practice requires that 10% of the product tolerance is divided between the GO and NO GO gauges. For plug gages a plus tolerance is applied to the GO member and a minus tolerance is applied to the No Go member.
