How do you know if a radiator valve is open or closed?

Check the radiator control valve: If a radiator is not getting hot: (steam or hot water) first see if the valve that controls it has been turned off. Try turning the valve counter-clockwise to see if it will open.

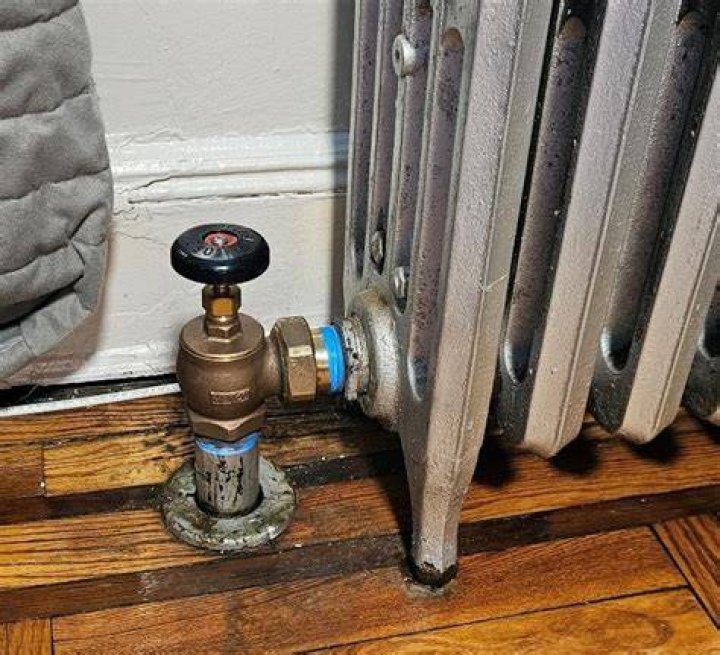

How do you open and close a radiator?

To turn a radiator off, locate the thermostatic valve on the left side and turn the valve clockwise until the dial reads 0. Next, find the second valve on the right side of the radiator and twist it clockwise until it won't turn anymore. Once both valves are closed, the radiator will be completely turned off.

Which way do you turn a radiator to open?

Turn the valve counterclockwise to increase the heat and clockwise to reduce it.

1. The thermostatic valve controls the amount of heat escaping the radiator. Setting it at 0 prevents heat from escaping, but it doesn't turn off the water or electrical flow.
2. Old radiators may not have a thermostatic valve.

What are the 2 knobs on a radiator?

One valve accounts for the amount of hot water that enters the radiator. The other valve, referred to as the lockshield valve, balances the system by regulating how much heat the radiator gives off. For a more detailed insight, take a look at our Radiator Valve Guide.

How to turn different radiator valves off

How do the dials on radiators work?

Radiator valves have numbers or symbols to represent how much heat the radiator is putting out. Normally, these numbers range from 1 – 6. Turning the valve to 3 should give you a room temperature around 20°C. Each number above or below then represents a single degree.

Should radiator valves be fully open?

You should also fully open the TRVs (thermostatic radiator valves). Whilst thermostatic and wheel head valves can be opened and closed by hand, the lockshield valves require a dedicated tool or an adjustable spanner.

How do you open a valve?

The proper way to open a gate valve is to gently turn the handle counter-clockwise (to the left) without applying excessive force – do not 'jerk' the handle. A typical 1″ main control valve for a water line will take about six full turns to fully open. Stop turning as soon as there is any resistance.

What side of the radiator is the lockshield valve?

The lockshield valve, on the side of the radiator opposite the on/off valve, may be adjusted to balance the output of your heating system. The lockshield itself is the plastic cap that covers the valve to ensure that you don't accidentally change the setting once you've adjusted it.

What are the different types of radiator valves?

The different types of radiator valve are:

• Thermostatic Radiator Valve.
• Manual Radiator Valve.
• Dual-Fuel Radiator Valve.
• Traditional Radiator Valve.
• Modern Radiator Valve.
• Straight Radiator Valve.
• Angled Radiator Valve.
• Corner Radiator Valve.

What are the two valves on a towel radiator for?

The valves in a towel radiator control the flow of water through the pipes. This ensures your radiator heats up effectively and efficiently. They keep your towel radiator functioning and ensure that your bathroom is heated up when needed, and your towels are dry and ready to use.

What are manual radiator valves?

Manual Valves

Manual radiator valves are angled taps on your radiator which are there merely to turn the radiator on and off. In a manual radiator valve system, the radiator control is down to the thermostat, located elsewhere and off the radiator body.

What does a radiator valve look like?

Radiator valves are what you see at the bottom of a radiator - they will have a twisting mechanism on top. They allow you to control how much heat you want your radiator to give out, just like a tap to control the flow of water. Each radiator will have two valves.

How does a radiator shut off valve work?

Thermostatic valves or TRVs allow you to set the temperature of a room using a dial. Once your room reaches this temperature, the radiator will shut off and cool down. If the room starts to drop below the set temperature, the radiator will automatically begin to heat up again.

How does an adjustable radiator valve work?

Thermostatic Radiator Valves are a different type of user-adjustable radiator valve that monitors the temperature of the radiator and automatically adjusts the room temperature to maintain a regular level. Once the TRV is set to the desired level, the valve automatically controls the heat output from the radiator.

Why wont my radiators get hot?

When your radiator is cold at the bottom, it's likely that there's a debris blockage that's restricting the flow of hot water to the whole radiator. Usually, the culprit of this particular problem is sludge, debris, rust and other bits of dirt.

What position should radiator valves be in?

Many modern homes will have TRVs – Thermostatic Radiator Valves – attached to most of the radiators on the opposite side from the lockshield valves. A TRV should always be fitted to the inlet on the radiator and the LSV to the outlet.

What are straight radiator valves?

Straight radiator valves connect to the radiator in a straight line. They have no bends or curves and connect to the radiator inlet horizontally from the wall.
