What are the symptoms of bad valves in a compressor?

Being able to recognize the symptoms of a faulty valve are essential, and Adeszko said problems can stem from a number of things. “The symptoms could be a loss of cooling or refrigeration, higher-than-normal suction pressures with low discharge pressures, the compressor being very quiet, or low amp draw,” he said.

What happens when compressor valves fail?

When a compressor's valves go bad, the system will overwork itself to the point that it begins overheating. This can lead to serious issues and damage to other parts of your system. The longer it goes on, the more likely you are to experience electrical issues inside of your HVAC unit as well.

What causes compressor valves to fail?

Some mechanical causes of compressor valve failure are: Spring failure: A wear down of the spring attached to the valve, due to stress could cause the improper functioning of the valve. High-cycle fatigue: The compressor's operation at high cycles over a long time can lead to stress which could affect the valve.

How do I know if I have a bad check valve?

The signs of a failing swing check valve are often audible. When the disc opens and closes repeatedly (because of low-pressure flow) or violently (because of water hammer), it emits a tapping or hammering sound, respectively.

How To Test A Check Valve (One-way Valve) On An Air Compressor

What happens when a check valve?

What is a check valve? Check valves are generally installed in pipelines to prevent backflow. A check valve is basically a one-way valve, in which the flow can run freely one way, but if the flow turns the valve will close to protect the piping, other valves, pumps etc.

What does a compressor control valve do?

The function of the valve is to balance the pressure of the fluids moving through the system by controlling the angle of the swash plate. This keeps the evaporator at a constant temperature slightly above freezing to maximize the auto air conditioning system operation.

How do you diagnose a weak compressor?

What Are the Signs and Symptoms of a Bad A/C Compressor?

1. A Lack of Hot Air Being Released Outside. ...
2. Loud or Strange Noises From the Unit. ...
3. Failure of the Compressor to Turn On. ...
4. Power. ...
5. Dead Compressor. ...
6. Capacitor and Starter Relay Problems. ...
7. Dirty Coil and Filters. ...
8. Circuit Breaker Tripping.

How do you test an expansion valve?

You need to raise the temperature of the sensing bulb to determine if the expansion valve is activating. One easy way is to simply drop it in a cup of warm water. Otherwise, you can simply hold the bulb in your hand throughout the duration of the test.

What is the function of solenoid valve in air compressor?

A solenoid valve intercepts compressed air from the system and shoots it against the small parts to push them into the assembly machine.

Where is the AC compressor control valve located?

The AC Compressor Control Valve is located behind a backing plate on the rear of the AC compressor.

How do you test an AC solenoid valve?

How to Test a Solenoid Coil?

1. Set your multimeter on ohms. If the multimeter is not automatic, set it on 2k ohms. ...
2. Place the probes of multimeter across the pins of a solenoid coil. If you find 3 pins there, one of them is a flat pin which is connected to the ground. ...
3. Read the number on the multimeter.

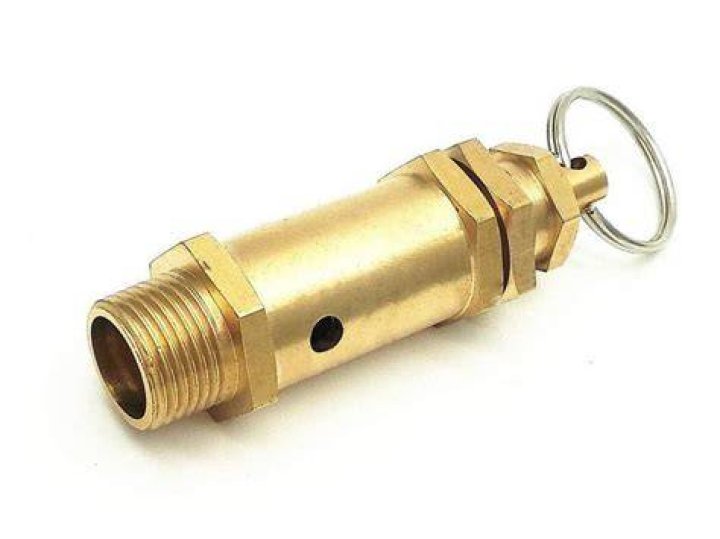

Do AC compressors have a pressure relief valve?

Some R-134a systems use a pressure relief valve on the low side of the system. This valve is designed to prevent evaporator damage during system shutdown, when pressures equalize.

How does a clutchless air compressor work?

Clutchless means that the compressor no longer has an electromagnetic clutch. This means that the compressor is permanently driven via the pulley and works even if the air-conditioning system is switched off. However, in relation to this, the power is regulated down to a few percent.

How do you test a air pump check valve?

The secondary air valve can be quickly inspected in an easy way:

1. Loosen the connecting hose on the secondary air non-return valve leading to the secondary air pump. ...
2. If there are deposits on this side of the valve (finger test, see Fig. ...
3. Inspect the secondary air pump and replace it if necessary.

How often should a check valve be replaced?

While typical component lifespans are application specific, manufacturers suggest metal and plastic check valves should be replace every 5-7 years whereas check valves manufactured from rubber may remain fully serviceable for up to 35-50 years.

What causes check valve failure?

Debris and contaminants in the system can cause valve failure. The easiest and most effective approach to avoid such from happening is to keep the pipes clean. To prevent debris from entering your system, install covers and filters where necessary. For liquid systems, you should flush the pumps.

Can a check valve get stuck?

Debris in pipeline — Debris in the piping can get lodged in the check valve, causing it to remain stuck in the open or closed position. Plus, rapidly traveling debris can affect the one-way check valve and damage the internal mechanism.

How do you reset a check valve?

How to Reset a Propane Check Valve

1. Turn the valve to shut off the container. ...
2. Switch the gas grill valves to the highest setting if using a grill to expel any residual gas or pressure.
3. Shut off the grill. ...
4. Switch the tank valve to the "on" position.

Can you unstick an expansion valve?

Place the bulb into hot water. This should cause the expansion valve to open allowing more refrigerant to pass through the TXV into the coil. Suction pressure should rise, and super heat should drop. Opening of the valve should be relatively quick.
