Will 2 6V batteries make 12V?

To produce a 12 volt output, two 6 volt deep cycle batteries must be wired in series (positive to negative). Each 6 volt battery pair operates as a single 12 volt battery. You can then connect each 6 volt pair in parallel with another pair to create a larger 12 volt battery bank.

Are 2 6-volt batteries better than 2 12 volts?

Are Two 6-Volt Batteries Better Than Two 12-Volt Battery? There is no right or wrong answer to this question, it's all about how many amp-hours the batteries have. RVers like 6V batteries because you can get higher amperage batteries.

How do you hook up RV batteries in parallel?

To wire two 12V RV batteries in parallel, you would simply connect the two negative terminals to each other and then connect the two positive terminals. This will keep your voltage at 12V (which is ideal for your RV) but double your capacity, meaning you will have battery power for longer before you need to recharge.

What happens if you charge a 6V battery with a 12V charger?

This will run your battery dry and create a thermal runaway scenario, which is very dangerous. Again, some people use a 12V charger to get their 6V battery jump started, but it is never advisable to use a 12V charger to try to fully charge your 6V battery.

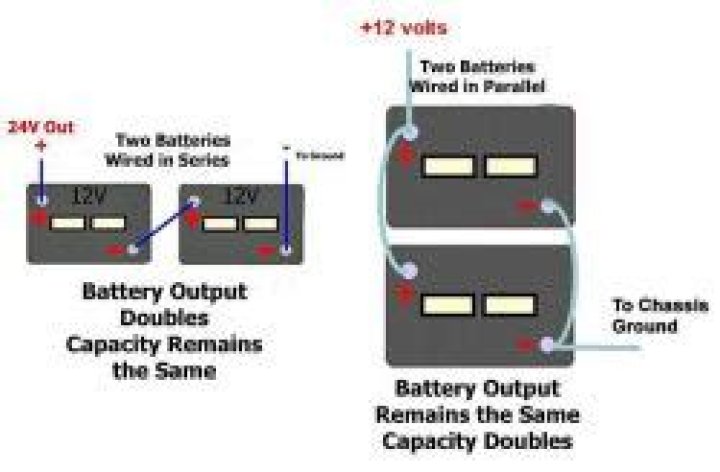

Wiring Batteries in Series & Parallel - Increase Your Capacity - Wire 2 6V Batteries to 1 12V

Can you charge a 6 volt battery with a 12 volt solar panel?

The short answer is that, yes, you can charge a 6-volt battery with a 12-volt charger.

Is it better to charge batteries in series or parallel?

Series connections provide a higher voltage which is slightly more efficient. This means that batteries wired in series can last marginally longer than batteries wired in parallel. However, batteries connected in series vs. parallel will provide roughly the same amount of runtime.

How do you charge multiple batteries with one charger?

An example method of charging batteries in parallel is to use one branch of the parallel circuit to charge each battery with a single charger. Connect the positive output of the charger to the positive terminal of the first battery, and connect that positive terminal to the positive terminal of the second battery.

Can you wire 6-volt and 12 volt batteries together?

The short answer is no, you cannot simply parallel your 12-volt battery with the new 6-volt batteries (in series). You can only parallel batteries that are exactly the same brand and chemistry, including age. Otherwise it will result in unbalanced charging as well as shortened battery life.

How do you hook up batteries in series?

To connect a group of batteries in series you connect the negative terminal of one battery to the positive terminal of another and so on until all batteries are connected, you would then connect a link/cable to the negative terminal of the first battery in your string of batteries to your application, then another link ...

How many amp-hours is 2 6-volt batteries?

Two 6 volts batteries rated at 220 a/h each yield 220 amp hours when wired in series for 12 volts, not 440.

Are there 2 6-volt batteries in series?

Charging batteries in series increases the voltage across each battery. The voltages themselves should add together to equal the voltage of the battery pack source. For example, you can connect two 6V batteries in series with a 12V source to recharge them.

Which is better 2 6-volt batteries in series?

Having two 12 volt batteries in parallel will give you twice as many amp-hours (capacity) as two 6 volt batteries wired in series. I assume they are deep cycle batteries and not car starter batteries.

Do batteries in parallel last longer?

Do batteries last longer in series or parallel? Batteries last longer in parallel, because the voltage remains the same, but the amps increase. If you connect two 12v 50ah batteries in parallel, it will still be a 12 volt system, but the amps will double to 100ah, so the batteries will last longer.

What happens when 2 batteries are connected in parallel?

When two or more batteries are placed in parallel, the voltage in the circuit is the same as each individual battery. That is two, three, four or more 1.5 volt batteries in parallel will produce a voltage of 1.5 Volts!

What happens when you connect batteries in series?

Connecting batteries in series increases voltage, but does not increase overall amp-hour capacity. All batteries in a series bank must have the same amp-hour rating. Connecting batteries in parallel increases total current capacity by decreasing total resistance, and it also increases overall amp-hour capacity.

Can you connect 2 deep cycle batteries together?

Running two deep-cycle batteries in parallel means they are connected to each other in order to increase the capacity of the 12V system, in amps, without affecting the voltage – i.e., 12V DC energy remains available to power the system.
