Connecting an AIS device to a GPSMAP 3000 series chartplotter over NMEA 0183

1. Connect the Blue (Data Out) wire of the GPSMAP 3000 series device to the NMEA In (or Data In) wire of the AIS device. ...
2. Connect the Brown (Data In) wire of the GPSMAP 3000 series device to the NMEA Out (or Data Out) wire of the AIS device.

Can my Garmin show AIS on my chartplotter?

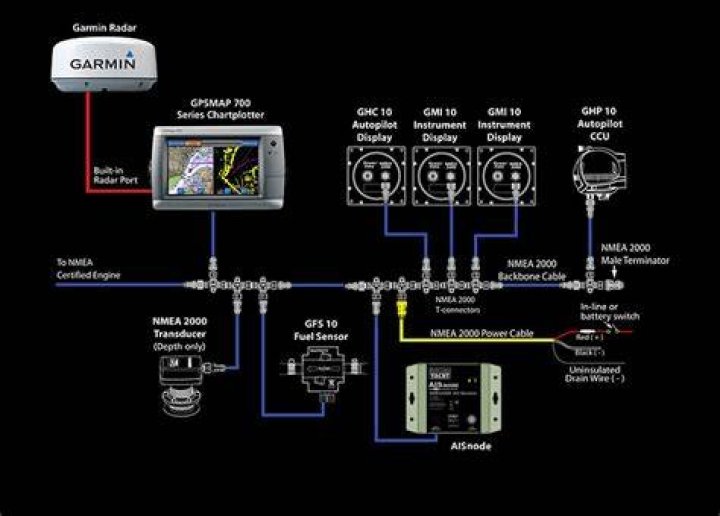

Garmin has many chartplotters that are compatible with AIS. Depending on the chartplotter, the AIS will be connected over NMEA 0183 High Speed or NMEA 2000. Garmin currently offers the following AIS devices: VHF 300 AIS (discontinued)

Can I connect my GPS to the AIS?

Our very popular AMEC CAMINO-101 Class B AIS transponder can now either use its internal GPS system coupled with the AMEC external antenna or it now supports using an external GPS device connected through the inbound NMEA port.

Do I need AIS transmit?

Commercial vessels weighing more than 300 gross tons or over 65 feet, certain passenger vessels, commercial vessels, and ships carrying hazardous cargo are required by U.S. and international law to have AIS.

How much does an AIS system cost?

AIS receivers are built by all the major electronics manufacturers, plus a few specialty companies. Cost generally ranges between $200 and $400.

Installing VHF with AIS to GPS/Chart Plotter Standard Horizon

How do you use AIS?

Just place the chart plotter's cursor on an AIS icon, and a list of valuable information unfolds. The ship's name and radio call sign are shown. This means you can pick up a VHF and hail a specific vessel that may be posing a threat.

Does AIS require a special antenna?

AIS communicates with other vessels over VHF and therefore requires a VHF antenna; however, in some cases using a splitter with an existing antenna is a great alternative to installing another dedicated antenna.

Do I need VHF with AIS?

For AIS Transmit and Receive, you need two pieces, a VHF Radio with DSC built-in plus an AIS Transponder.

What is an AIS receiver?

What is AIS? AIS stands for Automatic Identification System. AIS devices consist of a GPS receiver and a data radio unit. The AIS system enables ships all over the world to identify each other and transfer important information to other ships, but also to land stations and traffic centres on the coast.

How does AIS work on Garmin?

Automatic Identification System (AIS) uses a transponder or transceiver a GPS and VHF antenna. AIS improves maritime safety, aids in collision avoidance, and helps to identify ships that are not in sight. AIS transmits the ship's data to other vessels capable of receiving AIS data.

Can you overlay AIS on Navionics?

By far the biggest news this month, is that the hugely popular Navionics Boating App now supports live AIS data over Wi-Fi. This means, that any of Digital Yacht's wireless AIS units will now provide live AIS data for the app to overlay on the Navionics charts.

Can Navionics show AIS?

A few days ago the group finally announced the good news: Navionics can now display AIS targets!

What is the difference between Class A and Class B AIS?

Class A AIS transponders are required to have a DSC (156.525 MHz) receiver, external GPS, heading, and rate of turn indicator, and can also transmit and receive safety-related text messages. Class B AIS transponders operate using Carrier-Sense TDMA (CSTDMA) broadcast mode and transmit at a power level of 2 watts.

What vessels must have AIS?

The following vessels must have on board a properly installed, operational Coast Guard type-approved AIS Class A device: (i) A self-propelled vessel of 65 feet or more in length, engaged in commercial service. (ii) A towing vessel of 26 feet or more in length and more than 600 horsepower, engaged in commercial service.

What are the limitations of AIS?

Limitations of AIS

• The accuracy of AIS information received is only as good as the accuracy of the AIS information transmitted.
• The position received on the AIS display might not be referenced to the WGS 84 datum.
• Over-reliance on the AIS can cause complacency on the part of the OOW.

Do small boats need AIS?

Because of the considerable safety benefits offered by this technology, Class A AIS is mandatory for all SOLAS vessels over 300 tons. Class A or less powerful and less expensive Class B AIS is also mandatory on many smaller and/or more local commercial vessels, and either can be used by recreational vessels.

How do I know if my AIS is transmitting?

If you get green across the board then the unit itself is transmitting. Note if you don't get a check for TX position reports then check to see you have a valid GPS signal. The unit will not transmit unless it has a valid GPS position.

What is the difference between AIS and MMSI?

Maritime Mobile Service Identity (MMSI) is a unique 9 digit number that is assigned to a (Digital Selective Calling) DSC radio or an AIS unit. Similar to a cell phone number, your MMSI number is your unique calling number for DSC radios or an AIS unit.

What does DSC mean on a VHF radio?

Every VHF marine radio manufactured for the last several years has digital selective calling. DSC allows the radio to transfer information digitally, not just by voice, and to instantly send a digital distress alert to the Coast Guard.

How do I connect NMEA 0183 wires?

When wiring NMEA 0183 devices, follow these guidelines:

1. Transmit (Tx) (+) should connect to a receive (Rx) (+)
2. Tx (-) should connect to a Rx (-) ...
3. Rx (+) should connect to a Tx (+)
4. Rx (-) should connect to a Tx (-)
