How do you calculate full load?

Full load current I, I =P. / 1.732 * V Amps.

How do you find FLC?

Formula used in Motor full load current calculator

1. Single Phase AC Motor FLA (Amperes) = (P [kW] × 1000) / (V × cos ϕ)
2. Single Phase AC Motor FLA (Amperes) = (P [HP] × 746) / (V × cos ϕ × η)
3. Three Phase AC Motor FLA (Amperes) = (P [kW] × 1000) / (V × 1.732 × cos ϕ)

How do you calculate the full load of a transformer?

Transformer full load current = kVA / (1.732 x Volt)

1. Transformer full load current = kVA / (1.732 x Volt)
2. Transformer full load current = 1000 / (1.73 2× 480) = 1203 Amp.
3. Short circuit current at TC secondary (Isc) = Transformer full load current / Impedance.

How do you calculate load power?

Use the formula for power: Power = Voltage x Current, or P = VI. If you are trying to calculate the minimum load and you happen to only know the power and voltage ratings of your power supply, you can use the formula P = V²/R, which can become R = V²/P.

Transformers - Calculating Full Load Amps

What is load formula?

Multiply the mass of the object by the gravitational acceleration of the earth (9.8 m/sec2), and the height in meters. This equation is the object at rest's potential energy. Potential energy is measured in joules; this is the load force.

What does full load mean in electrical?

full load current in Electrical Engineering

(fʊl loʊd kɜrənt) (Electrical engineering: Electrical power, Motor or generator) A full load current is the largest current that a motor or other device is designed to carry under particular conditions.

What is full load in transformer?

By full load is meant the load (obviously, on secondary) which would make transformer transfer it's rated power from primary to secondary. For example when 50 kVA is on full load, it would be transferring 50 kVA from primary to secondary.

How do you calculate the voltage of a transformer?

Solve the equation Vs/Vp = Ns/Np where Vs is the secondary voltage, Vp is the primary voltage, Ns is the number of secondary windings and Np is the number of primary windings. Divide the number of secondary windings by the number of primary windings, and multiply the source voltage by this ratio.

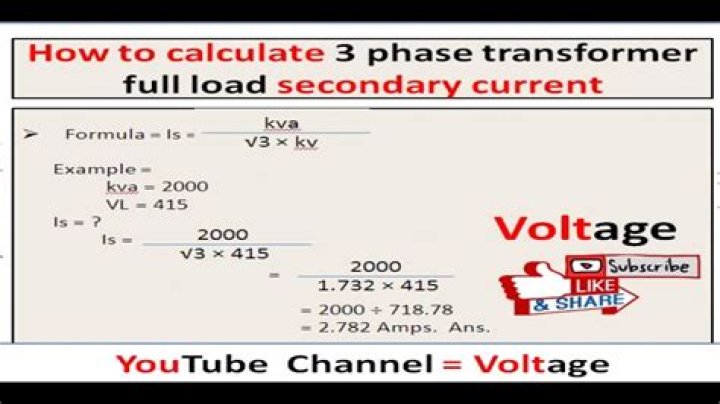

How do you calculate load on a 3 phase transformer?

This is a "Two Step Division", technique: VA / Voltage = Amperage. Three Phase Example: Using a 75 KVA Three Phase Transformer as a starting point. 75 KVA is equal to 75,000 VA. (K= 1,000) The full value in VA, 75,000 divided by 1.732 = 43,302, which is then divided by the Voltage 208V = 208.2 Amperes.

What is FLC and FLA?

In an electric motor, FLA stands for full-load amperes, and FLC stands for full-load current. FLA represents the actual known capacity of a motor, or the rated voltage the motor is designed to draw at its rated horsepower.

What is FLA and FLC in electrical?

The full-load amperes (FLA) is the current the motor draws while producing its rated horsepower load at its rated voltage. NEC Tables. The full-load current (FLC) is the current value listed in Tables 450.247 through 450.250.

What is the full load current of a 500 volt DC 20 horsepower motor?

Explanation of Solution

Horsepower is 20 HP. Thus, the full load running current of the motor is 34 A.

How do you calculate input and output voltage?

Input and output power

1. Electrical power is calculated by multiplying voltage (in volts) by current (in amps).
2. If a transformer is 100% efficient, then the input power will equal the output power. ...
3. V _P is input (primary) voltage.
4. I _p is input (primary) current.
5. V _s is output (secondary) voltage.

How do you calculate secondary phase voltage?

Primary phase voltage = 2,400 divided by 1.73 = 1,387 V. Secondary phase voltage = 1,387 divided by 10 = 139 V. Secondary line voltage = 139 V multiplied by 1.73 = 240 V.

What do you mean by full load?

Full-load (FTL) means when transport company delivers truck to the shipper, which completely fills the truck in one direction. When the truck is loaded, the cargo is transported directly to the specified location.

Why is transformer voltage different at full load and no load?

If there is no load condition, no current flows and there is no voltage drop in the series resistance, hence voltage across load is more than full load condition. Ideally, if the voltage regulation is perfect, the voltage across the load should not depend on the load because of the negative feedback.

What is the difference between no load and full load voltage?

Full load voltage is the voltage which is the final voltage for the circuit when all the load have been considered and the circuit is assumed to be in the steady state. No load voltage is the voltage which is just the voltage appearing at the output terminal when all the system is powered up but not loaded.

What is the difference between no load and full load?

No load means no energy is delivered to the load. The load is essentially disconnected. Full load means the load consumes the maximum amount of energy of which it's capable. For example, if a light bulb is turned off it is in it's no load state.

How do you calculate full load amps in Control Panel?

To calculate the total load on the breaker panel, you simply need to add together the amperage ratings from each circuit breaker, and then multiply that sum by 120 volts.

How do you calculate no load voltage?

Load regulation (percent) = 100 x (voltage no load — voltage full load) divided by voltage full load. Line regulation is another measure of voltage regulation.

What is the full load current of a 2.2 KW motor?

Fixed mains supply output is 2.2kW (3HP) x 1420RPM at 230V or 400V x 50Hz 3ph. Full Load Current - 8.5A at 230V, or 4.9A at 400V.
