How do I find an open circuit in my car?
John Johnson What is an open circuit in a vehicle?
A circuit that is interrupted, such as by an open switch, a bad connection, or an internal break. Generally not a positve thing as far as your vehicle is concerned.
How do you check a car circuit?
A circuit tester
Connect the tester clip to the negative terminal of the battery and touch the probe to the positive one. If the tester lamp does not light, the battery is dead (or the bulb in the tester has blown).
What can cause an open circuit on a car?
What Causes Electrical Opens in Cars?
- Corroded connection.
- Loose wire.
- Disconnected wire.
- Failed load.
- Blown fuse.
- Burned-out bulb.
- Damaged wire (frayed, chaffed or burnt)
Can a blown fuse cause an open circuit?
Failure Mode #1: Open Circuit
If the fuse is blown, that also creates an open circuit. The simplest “open” circuit is when the switch is off.
Diagnosing Electrical Issues - How to Diagnose and Find an Open Circuit

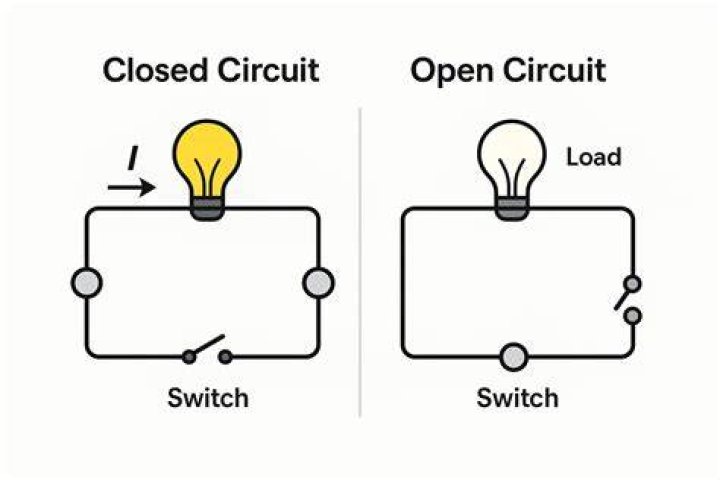

What is an example of an open circuit?
The definition of an open circuit is a broken path for an electrical current due to an open switch or frayed wire. An example of an open circuit is a string of electric lights that don't work if one bulb goes out.
What happens when a circuit is open?
If there's a break anywhere in the circuit, you have an open circuit, and current can not flow. In an open circuit, the two terminals are disconnected. Hence the continuity of the circuit is broken. But while current cannot flow through the circuit, there is some voltage drop between two points of a circuit.
When would an open circuit occur?
An open circuit implies that the two terminals are points are externally disconnected, which is equivalent to a resistance R=∞ . This means that zero current can flow between the two terminals, regardless of any voltage difference.
What is an open circuit fault?
An open-circuit fault occurs if a circuit is interrupted by a failure of a current-carrying wire (phase or neutral) or a blown fuse or circuit breaker. In three-phase systems, a fault may involve one or more phases and ground, or may occur only between phases.
How do you fix a blown circuit?
Examine the fuses and circuits, looking for the blown one as described above. Unscrew the blown fuse and replace the fuse with a new one. For circuits, flip the tripped circuit from the center position to the off position, and then flip it back to the on position. Turn the main power back on.
What are the 3 most common electrical faults in automotive?
Top Five Car Electrical Issues
- A bad alternator. One of the top electrical car issues is a bad alternator. ...
- Dead bar battery. This is one of the most common car electrical issues drivers have. ...
- Spark plug issues. ...
- A blown fuse. ...
- Battery cables need replaced.
How much does it cost to fix a short circuit in a car?
Finding and repairing a short circuit in your car or truck's electrical system can cost $200 and up at a shop. But if you spend $15 on a pro-grade shop manual and $40 on specialty tools (below), you can track it down yourself in an afternoon.
Which is the most common cause of open circuit fault?
Open Circuit Faults
The most common causes of these faults include joint failures of cables and overhead lines, and failure of one or more phase of circuit breaker and also due to melting of a fuse or conductor in one or more phases.
How can an open circuit be prevented?
5 Ways to Prevent Short Circuits
- Check Outlets Before Use. Behind every outlet is a box with attached wires. ...
- Check Appliances Before Use. ...
- Reduce Electrical Usage During Storms. ...
- Perform Basic Circuit Breaker Maintenance. ...
- Schedule an Electrical Inspection at Least Once a Year.
How do you test for open ground?
You can identify an open ground by using an outlet tester. Or, you can physically remove each outlet from the wall and ensure the ground wire is properly connected to the outlet. An outlet tester will show a light up code to tell if there is an open ground.
