How cavitation occurs in centrifugal pump?
Daniel Davis Positive Suction Head
NPSHa (available) is a property of the system and is calculated by the system designer giving a value of the pressure on the suction side of the pump. NPSHr (required) is a property of the pump. This is calculated by the manufacturer as the point where cavitation occurs.
https://www.crestpumps.co.uk › q-a-what-is-the-difference-bet...
What causes cavitation in a centrifugal pump?
Cavitation occurs when the liquid in a pump turns to a vapor at low pressure. It occurs because there is not enough pressure at the suction end of the pump, or insufficient Net Positive Suction Head available (NPSHa).
Where does cavitation occur in centrifugal pumps?

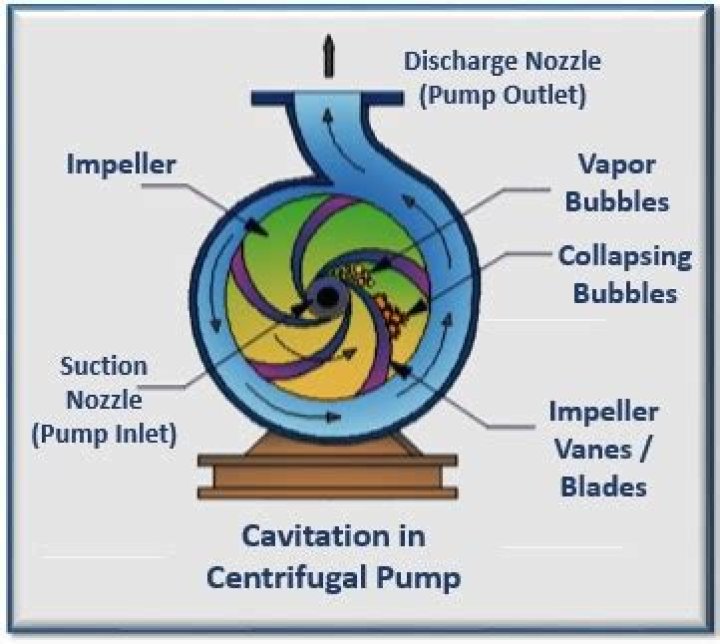

In a centrifugal pump, 'classic' cavitation occurs at the eye of the impeller as it imparts velocity on the liquid (see Figure 1). In a positive displacement pump, it can happen in an expanding piston, plunger or suction-side chamber in a gear pump.
Why does cavitation happen in a pump?
Pumps are designed to pump liquids but, when the combined flow rate and pressure are inadequate or not conducive to the type of liquid being pumped, pockets or cavities can form, resulting in cavitation. Some describe pump cavitation as the creation and collapse of the air bubbles in a fluid.
How does cavitation affect centrifugal pumps?
Cavitation in a centrifugal pump has a significant effect on pump performance. Cavitation degrades the performance of a pump, resulting in a fluctuating flow rate and discharge pressure. Cavitation can also be destructive to pumps internal components.
Cavitation - Easily explained!
How does cavitation occur?
Cavitation happens when bubbles, or voids, form within a fluid because the pressure quickly drops below the vapor pressure. When the bubbles experience higher pressures they collapse, creating small shockwaves that, over time, damage parts.
How is cavitation formed?
cavitation, formation of vapour bubbles within a liquid at low-pressure regions that occur in places where the liquid has been accelerated to high velocities, as in the operation of centrifugal pumps, water turbines, and marine propellers.
How can we prevent cavitation in centrifugal pump?
Some tips to prevent cavitation due to vaporization include:
- NPSHa > NPSHr + 3 ft or more safety margin.
- Lower temperature.
- Raise liquid level in suction vessel.
- Change out pump type.
- Reduce motor RPM.
- Use impeller inducer.
- Increase diameter of the eye of impeller.
Why cavitation occur in centrifugal pump not in displacement pump?
Positive displacement pumps can cavitate...but because of the difference in operation between positive displacement pumps and centrifugal pumps, they don't normally see as great a reduction in fluid pressure while drawings fluid into the pump, and so are less likely to have the fluid pressure drop below the vapor ...
At what pressure does cavitation occur?
When the negative pressure reaches approximately 9 MPa, cavitation occurs. This rapid event triggers spore dispersal due to the elastic energy released by the annulus structure.
Why priming is used in centrifugal pump?
If the pump casing becomes filled with vapors or gases, the pump impeller becomes gas-bound and incapable of pumping. So energy impart on air is much lesser. So impeller CANNOT impart enough energy to air to go out of casing and suck water so priming is compulsory for in case of centrifugal pump.
What is priming and cavitation?
Pump priming. Pump Cavitation. Basic. It is the process of filling liquid into the suction side, pump casing, up to the delivery valve. It is the effects of the bubble formation at the suction side that carries further to the pump inside and burst, causes damage to the impeller as well as the pump.
How cavitation can be eliminated in a pump?
If possible, reduce the temperature of your pump, liquid, and/or other components. Increase liquid level around the suction area. If possible, try to increase the diameter of the eye at the centre of your impeller.
What is the most common cause of cavitation?
Common causes of suction cavitation include: Clogged filters. Pipe blockage on the suction side. Poor piping design.
Can high flow cause cavitation?
Discharge cavitation occurs when pressure at the discharge end of the pump is too high. High discharge pressure limits the volume of fluid flowing out of the pump, causing high-velocity fluid to recirculate between pump impeller and housing, causing cavitation.
What is cavitation and where might it occur?
Cavitation is the formation and collapsing of cavities or bubbles in a liquid mostly developed in the areas which have relatively low pressure around the pump impeller. It occurs in the absence of the net positive suction head the pump. It's the formation of bubbles in the liquid flowing in any Hydraulic Turbine.
What is NPSH in centrifugal pump?
NPSH stands for Net Positive Suction Head and is a measure of the pressure experienced by a fluid on the suction side of a centrifugal pump.
Why pump suction is greater than discharge?
Suction pressure diameter is usually 1 size higher than discharge, because we need minimum resistance in the suction side to reduce the losses and increase the NPSHa.
Why the centrifugal pump is called high discharge pump?
The centrifugal action of the impeller accelerates the liquid to a high velocity, transferring mechanical (rotational) energy to the liquid. So it discharges the liquid in high rate.
Which of following will result in cavitation of centrifugal pumps?
Cavitation occurs in centrifugal pumps when the Nett Positive Suction Head Available (NPSHa) is lower than the Nett Positive Suction Head Required (NPSHr) causing the formation and accumulation of bubbles around the impeller eye that then collapse resulting in a series of mini implosions and significant damage to both ...
What is the minimum pressure to avoid cavitation?
Therefore, the minimum inlet pressure to avoid cavitation should be: 3 + 1 + 0.43 = 4.43 m. Good practice is to add a safety factor of 0.5 m. For this example, cavitation is avoided if the pump suction pressure during operation is always above 5 m.
What are the effects of cavitation?
The effects of cavitation are hydraulic (low efficiency due to flow instability) and mechanical (surface damage, noise and vibration). In addition, it may also lead to surface erosion[3]. It is difficult to avoid cavitation in hydro turbines which cannot be avoided completely but can be reduced.
What are the two causes of cavitation?
Common causes of discharge cavitation include: Clogged filters. Pipe blockage on the discharge side.
What means by cavitation?
a : the formation of partial vacuums in a liquid by a swiftly moving solid body (such as a propeller) or by high-intensity sound waves also : the pitting and wearing away of solid surfaces (as of metal or concrete) as a result of the collapse of these vacuums in surrounding liquid.
Why does cavitation make noise?
Cavitation is a primary source of propeller noise. The noise is caused by popping bubbles, sort of. They aren't air bubbles, and they're not actually popping. They are imploding bubbles of steam.
