How can we prevent cavitation in hydraulic system?

How to Prevent Hydraulic Pump Cavitation by Supercharging the Pump Inlet

1. Loud noise often described as a grinding or “marbles” in the pump.
2. Loss of flow capacity (bubbles are now taking up space where liquid should be)
3. Pitting damage to parts as material is removed by the collapsing bubbles (see image below)

How is cavitation prevented?

The best way to prevent cavitation is to select the right pump for the application. Cavitation increases as pump head falls or as capacity increases, so selecting the correct pump to maintain a positive margin of NPSHa above NPSHr is the best first move.

What causes cavitation in hydraulic system?

Cavitation occurs when the volume of fluid demanded by any part of a hydraulic circuit exceeds the volume of fluid being supplied. This causes the absolute pressure in that part of the circuit to fall below the vapor pressure of the hydraulic fluid. This will result in the formation of gas bubbles.

How can we prevent hydraulic failure?

3 THINGS YOU CAN DO TO PREVENT HYDRAULIC CYLINDER FAILURE

1. Maintain Hydraulic Seals. Maintaining a constant supply of pressurized liquid within the hydraulic cylinder is essential if the cylinder is to work properly. ...
2. Prevent Fluid Contamination. ...
3. Keep Rods Straight.

Cavitation in hydraulic system || How to avoid cavitation||What is cavitation in hydraulic

What is the common problem of hydraulic system?

Water contamination is also a common problem in hydraulic systems, often caused by system leaks or condensation due to temperature changes. Water can degrade hydraulic components over time through oxidation and freeze damage. A milky appearance in hydraulic fluid can help you identify water contamination.

What causes hydraulic pump failure?

Hydraulic Fluid Contamination

Fluid contamination is the leading cause of pump failure and usually happens when particulates circulate through the system via a breather valve or cylinder rod, or as a result of repairs, welding slag, sealant, or refilling.

How can you reduce cavitation immediately but temporarily?

How can you reduce cavitation immediately but temporarily? The temporary and immediate removal of cavitation is to decrease the motor speed and implement the impeller inducer.

What are the causes of cavitation?

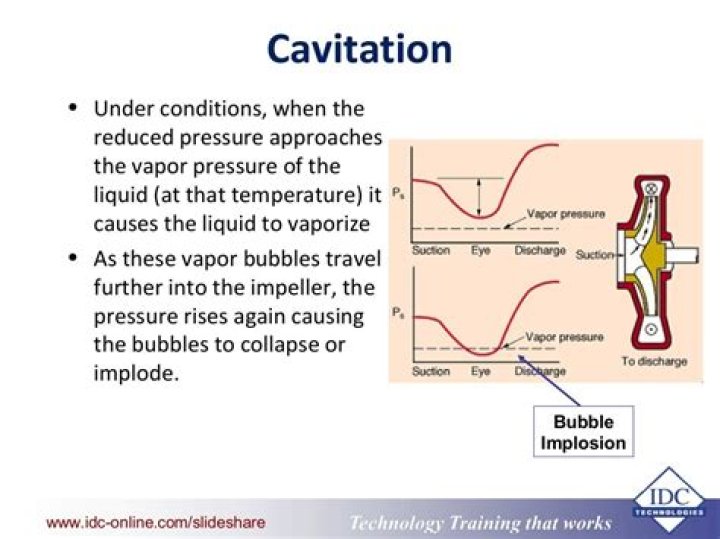

Cavitation happens when bubbles, or voids, form within a fluid because the pressure quickly drops below the vapor pressure. When the bubbles experience higher pressures they collapse, creating small shockwaves that, over time, damage parts.

What are the two causes of cavitation?

Common causes of discharge cavitation include: Clogged filters. Pipe blockage on the discharge side.

What is cavitation and how can it be prevented in pumps?

This is where you will see cavitation bubbles because the lower pressure is now heating the liquid. Some tips to prevent this cavitation include: Free space between the impeller blade tips. Ensure the free space between your impeller and its housing is 4% of the impeller's diameter or more.

How can we prevent cavitation in control valves?

How can you avoid cavitation?

1. Make sure you select the right valve for your application. ...
2. Use multiple control valves or multistage control valves so that the pressure drop happens gradually rather than all at once.

How can you prevent cavitation in a turbine or pump?

How to Prevent Cavitation

1. Reduce motor speed (RPMs). ...
2. Install an impeller inducer.
3. Incorporate a booster pump into your pump system. ...
4. If possible, reduce the temperature of your pump, liquid, and/or other components.
5. Increase liquid level around the suction area.

Which part of hydraulic is most prone to cavitation?

Cavitation is formation of vapor bubbles in the liquid flowing through any Hydraulic Turbine. Cavitation occurs when the static pressure of the liquid falls below its vapor pressure. Cavitation is most likely to occur near the fast moving blades of the turbines and in the exit region of the turbines.

Which one of the following helps in avoiding cavitation in centrifugal pumps?

In centrifugal pumps, the cavitation may occur at the inlet of the impeller of the pump or at the suction side of the pump where the pressure is considerably low. So to avoid cavitation pressure on the suction side should be high.

What do you mean by cavitation?

cavitation, formation of vapour bubbles within a liquid at low-pressure regions that occur in places where the liquid has been accelerated to high velocities, as in the operation of centrifugal pumps, water turbines, and marine propellers.

What is cavitation how can it be avoided in reaction turbines?

The cavitation in reaction turbines can be avoided to a great extent by using the following methods: (a) By installing the turbine below the tail race level. (b) By using stainless steel runner of the turbine. (c) By providing highly polished blades to the runner.

How does cavitation affect the performance of hydraulic machines?

The effects of cavitation are hydraulic (low efficiency due to flow instability) and mechanical (surface damage, noise and vibration). In addition, it may also lead to surface erosion[3]. It is difficult to avoid cavitation in hydro turbines which cannot be avoided completely but can be reduced.

How can you avoid cavitation in a Venturimeter?

Cavitation takes place as the liquid evaporates and the vapor condenses to a liquid and so on. To avoid cavitation, the pressure at the throat of a venturi meter has not to reach the value of vapor pressure of the flowing liquid.

What is cavitation treatment?

Ultrasonic or ultrasound cavitation is the use of ultrasound technology to break down fat cells below the skin. It is a non-surgical method of reducing cellulite and localized fat. This procedure involves applying pressure on fat cells through ultrasonic vibrations.

How does eccentric reducer prevent cavitation?

Eccentric reducers are used at the suction side of pumps to ensure air does not accumulate in the pipe. The gradual accumulation of air in a concentric reducer could result in a large bubble that could eventually cause the pump to stall or cause cavitation when drawn into the pump.

How do you maintain a hydraulic pump?

Maintenance tasks: Daily

1. Check oil levels in power unit tanks.
2. Check for temperature changes in the oil.
3. Check the system for water or dirt in the oil.
4. Check for leaks.
5. Check and tighten screws and pipe clamps.
6. Verify pressure gauge readings.
7. Monitor the running noise of pumps and electric motors to identify changes.

What causes hydraulics to lose pressure?

FOAMING OF OIL

Incorrect, low or dirty oil. Replace, clean or add oil as needed. Air leaks.

What causes hydraulics to overheat?

Air leaks at seals and fittings on your hydraulic system components can lead to air entering your system and forming bubbles in your fluid. Air bubbles generate heat when your system compresses them and then pass this heat into the surrounding fluid, overheating it.

How do you remove air from a hydraulic system?

For dissolved air, you can remove it by raising the temperature of the fluid until the air is released. This should only be done if absolutely necessary as hydraulic oil will normally tend to be at least 10% dissolved air.
