Are H clips required for roof sheathing?

H-clips are referred to in the APA Guide as “edge support." For the most common roof sheathing in our area, which is 1/2” nominal (7/16” actual) sheathing over trusses or rafters at 24” on center, there is no requirement for H-clips.

How many roof sheathing clips do I need?

pair of trusses, rafters, or joists. However, two (2) equally spaced H-clips are required between supports when spaced 48 inches on center. misfit of abutting sheets may be tolerated if gaps do not exceed maximum opening of 1/4 inch (6 mm).

Do you need H clips on OSB?

H-clips are an architects or engineer's call, not a code requirement. 7/16" OSB very commonly spans rafters 24" on center without clips. Not required by most residential codes unless your area has special requirements.

What are plywood sheathing clips used for?

Plywood clips, also referred to as H-clips or panel edge clips, are small metal brackets placed between the unsupported edges of plywood sheathing to effectively reduce the support spacing and stiffen the plywood.

Roof decking H clip what is an H clip and why they are so important! + Time laps and drone montage

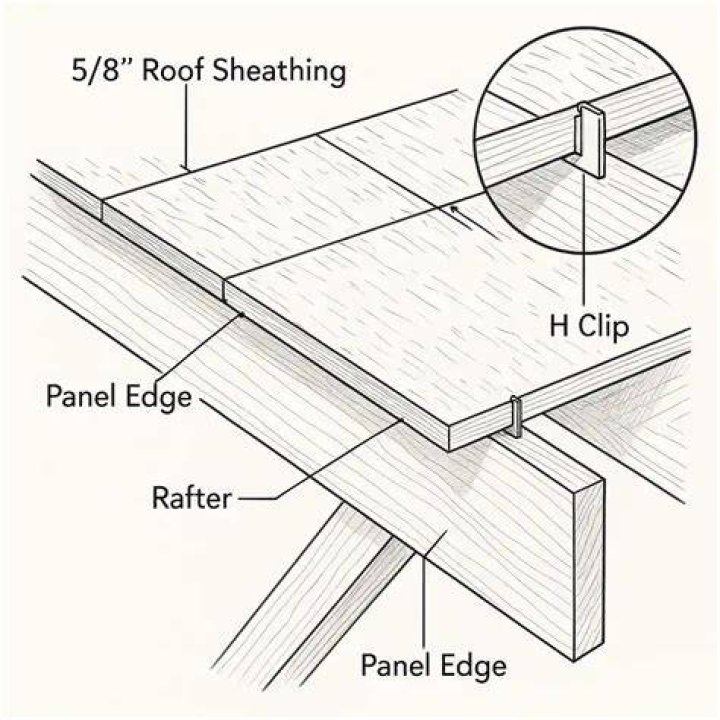

Are H-clips required on 5/8 sheathing?

5/8” thick panels having a span rating of 40/20 can have an unsupported edge up to 32”. This means that 1/2” and 5/8” thick roofing panels that are supported by roof framing (rafters or trusses) spaced at the typical 16” or 24” o.c. do not require edge support (H-clips).

Does roof sheathing need to be spaced?

Fasten panels with a minimum of 8d Common (0.131-inch by 2-1/2-inch) nails spaced a maximum of 6 inches on center at supported panel ends and edges. At intermediate supports, fasten panels 12 inches on center. In high-wind areas, more fasteners may be required.

What should I use for roof sheathing?

Oriented Strand Board (OSB) or plywood can be used, although plywood will provide higher nail head pull-through resistance. Use panels rated as “Exposure 1” or better. Install sheathing panels according to the recommendations of the Engineered Wood Association (APA). Use panels no smaller than 4 feet long.

What thickness of plywood is used for roof sheathing?

What is this? Standard roof sheathing thickness is ½” to ⅝” thick. If you are using OSB for your roof deck, then ⅝” is the recommended thickness. For plywood, which is slightly stronger than strand board, ½” thick is appropriate.

Can you use 7/16 ZIP sheathing on a roof?

Finished roof should be installed per the manufacturer's installation instructions. Huber Engineered Woods requires panel edge support for 7/16" ZIP System® sheathing installed on roof supports spaced more than 16" on center. Panel Edge support might be blocking, tongue-and-groove edges or panel edge clips (H-clips).

Is it better to nail or screw roof sheathing?

Nails are often preferred for structural joining, including framing walls, because they are more flexible under pressure, whereas screws can snap. Nails are also called upon when securing plywood sheathing for exterior walls, installing hardwood floors, and attaching siding and roofing.

Should roofing nails go through the sheathing?

Roofing nails should be at the correct length to secure roof coverings. It should pass through the sheathing and should extend 3/8 inches past the bottom of the roof heating.

What size nails should I use for roof sheathing?

If you're using typical architectural shingles and 3/8-inch-thick sheathing, you'll need 1‐inch nails. If your building codes require thicker sheathing, you'll need 1 ¼-inch nails. When installing thicker shingles, you may need to use a longer nail in order to penetrate the OSB beneath fully.

How far should roof sheathing overhang rafter tails?

It is at 45-3/4 in. Measure up the rafter 45-3/4 inch from the cut end of the truss tail and snap a line along the trusses. This indicates the upper edge of the first row of roof sheathing—leaving enough overhang that the subfascia and fascia will tuck neatly underneath when the time comes.

Does OSB need expansion joints?

Yes, in order to avoid dilation stress on the board edges. Expansion gaps are narrow distances that must be provided at the panel joints when fixing the straight-edge OSB boards on supports.

Can you roof sheath with OSB?

OSB is now the most-used sheathing and subflooring material for new roofs and roof replacements. OSB is currently selling for less than plywood by approximately $3 per sheet, meaning a savings of several hundred dollars per conventional home.

What are roof clips?

To begin, let's define a clip: It's a concealed anchor that attaches a metal panel to the substrate (roof deck or other material beneath the metal panels) with the use of fasteners. Clips are sometimes referred to as cleats as well. Clips can come in a variety of metal materials and gauges, including: Galvalume®

Are hurricane clips necessary?

All new buildings are required to have hurricane ties installed. While not required on older structures, owners of existing buildings would be wise to invest in the installation of hurricane ties and straps. Costs are minimal and these retrofitted items can make a difference during the next hurricane or wind event.

Are hurricane clips required in Florida?

Florida homes built after 2001 are required to have hurricane clips. These are steel connectors that attach your roof to your wall structure. These are designed to withstand hurricane winds that hit your walls and put upward pressure on the overhang of your roof.

Are hurricane clips effective?

Are hurricane clips effective? Hurricane clips are an effective way of securing potentially hazardous parts of your home in stormy weather. These clips work by further strengthening the bond between the roof and walls of your home.
