Is pitot pressure affected by turbulence?

The other three are gyroscopic. The pitot tube, located on the leading edge of the wing, and the atmospheric pressure in the tube is increased by the dynamic pressure due to the forward motion of the aircraft while in flight. The static pressure port is not affected by turbulence or ram air pressures.

On which principle does a pitot tube work?

Pitot tube works on the principle of Bernoulli's equation. If the velocity of flow at a point decreases, pressure will be increased at that point due to the conversion of kinetic energy in to pressure energy. Pitot tube will be made of a glass tube bent at right angle as displayed here in following figure.

What are the limitations of pitot tube?

Disadvantages/limitation of pitot tubes

Low sensitivity and Poor accuracy. It requires high-velocity flow. Not suitable for dirty or sticky fluid like sewage disposal. Pitot tubes have found limited applications in industries because they can easily become clogged with foreign materials in the liquid.

What are pitot tubes used for?

Pitot tubes were invented by Henri Pitot in 1732 to measure the flowing velocity of fluids. Basically a differential pressure (d/p) flow meter, a pitot tube measures two pressures: the static and the total impact pressure.

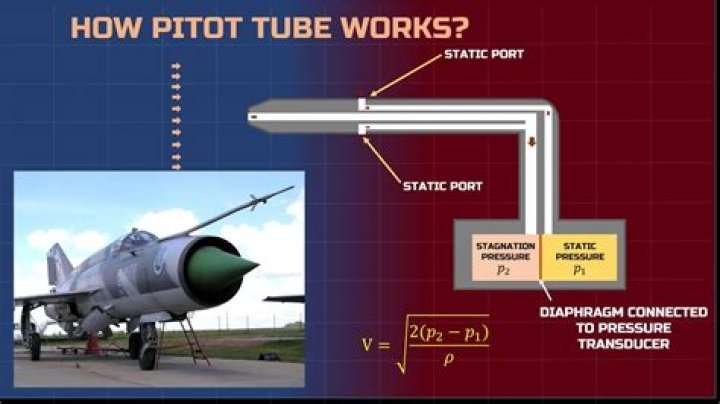

WORKING OF A PITOT TUBE

Can pitot tube measures static pressure?

The static pressure can also be measured using a regular pitot tube as shown in Figure 1, below. A pitot tube is a tube within a tube. The inside tube is open to the air at the tip of the tube (total pressure), and the outside tube is open on the sides of the tube (static pressure).

Do all planes have pitot tubes?

A pitot tube is a tool used to measure flow speed. Pitot tubes are commonly found on aircraft but have applications on boats, race cars, wind tunnels, and various industrial tools. Pitot tubes can be mounted on planes in many ways.

What is difference between pitot tube and pitot-static tube?

A Pitot tube is a pressure-sensing device that is most commonly used to measure fluid velocity in a pipe or vessel. It works by measuring the difference in pressure between the entrance and exit of the tube. The Pitot-static tube is an aircraft instrument that combines a pitot tube and a static port.

How does the pitot tube help in measuring the airspeed?

How does the pitot tube help in measuring the airspeed? Explanation: The pitot tube is closed at one end and is opened from other ends. When the air is filled inside the tube, the pressure at the open end equals to total pressure and it differs from the pressure outside the tube.

What are two limitations of a pitot tube when measuring flow velocity?

Foreign material in a fluid can easily clog pitot tube and disrupt normal reading as a result. Low accuracy. Low rangeability.

How flow is measured from a pitot tube?

The Pitot tube measures air velocity directly by means of a pressure transducer which generates an electrical signal which is proportional to the difference between the pressure generated by the total pressure and the still air (static pressure).

What happens if pitot tube gets blocked?

A blocked pitot tube will cause the airspeed indicator to register an increase in airspeed when the aircraft climbs, even though actual airspeed is constant. (As long as the drain hole is also blocked, as the air pressure would otherwise leak out to the atmosphere.)

What happens if pitot tube freezes?

What Happens If The Pitot Tube And Static Ports Completely Ice Over? This one is easy: all of the pressure is trapped, and your airspeed indicator freezes. Whether you climb or descend, speed up or slow down, your airspeed won't change.

How do pitot tubes eliminate ice?

The pitot tube in the icing detection system will be blocked by ice when the system detects icing. Then the ice on the pitot tube will be removed by heating so that the system can work again when it faces ice in the future.

What is pitot tube how is it used to measure velocity of flow at any point in a pipe or channel?

Pitot Tube is a device used for calculating the velocity of flow at any point in a pipe or a channel. The pitot tube is used to measure velocity at a point. In the question velocity at the stagnation point is given which is zero. So here stagnation pressure will be the correct answer.

Why is the pitot tube on the left wing?

During this yawing motion the left wing tip briefly moves faster through the air than any other part of the airplane. The pitot tube at the left wingtip encounters the total pressure from the airplane? s forward speed, plus the extra speed of the wingtip swinging through the air as the plane yaws.

Why do we need pitot-static tubes on aircraft and not just pitot tubes '?

The advantage of a pitot-static tube is its ability to measure static pressure in addition to stagnation pressure. Static ports along the side of the pitot tube give it this all-in-one capability, meaning there is no need to install separate static ports elsewhere.

What are the 5 types of altitude?

The 5 Types Of Altitude, Explained

• 1) Indicated Altitude. Let's start with the easiest altitude first. ...
• 2) Pressure Altitude. When you set your altimeter to 29.92, you're flying at standard pressure altitude. ...
• 3) Density Altitude. ...
• 4) True Altitude. ...
• 5) Absolute Altitude.

Why do pitot tube have heaters?

It is very important as it keeps the pilots informed on the status of their instruments. However, this tube can freeze up, especially when water or ice starts to form on the wings, messing with the function of this tube. This is why there is a heater for the pitot tube.

What happens to airspeed if static port is blocked?

If an aircraft begins to climb after a static port becomes blocked, the airspeed begins to show a decrease as the aircraft continues to climb. This is due to the decrease in static pressure on the pitot side, while the pressure on the static side is held constant.

What instruments are affected by the pitot tube?

A clogged pitot tube affects only the airspeed indicator. One or more clogged static ports will affect the airspeed indicator, the vertical speed indicator, and the altimeter.

Will the altimeter work if the pitot tube is blocked?

If the pitot tube gets blocked in flight, such as by icing, the airspeed indication is maintained at first. Note that the indication is still subject to changes in static pressure as long as the static port is not blocked as well, effectively turning the airspeed indicator into an altimeter.

Where should a pitot tube be placed in a pipeline?

Horizontal pipe orientation. For liquid applications, the pitot tube should be mounted in the lower 160-degree portion to prevent air from collecting in the instrument lines or transmitter.

Which instrument will become inoperative if the pitot tube becomes clogged?

If the pitot tube is clogged, the airspeed indicator will be inoperative. The static vents provide information to the altimeter, vertical speed indicator and airspeed indicator. If the static vents become clogged, the airspeed indicator, altimeter and vertical speed indicator will be inoperative.
