Are expansion joints in concrete necessary?

Expansion joints are virtually never needed with interior slabs, because the concrete doesn't expand that much—it never gets that hot. Expansion joints in concrete pavement are also seldom needed, since the contraction joints open enough (from drying shrinkage) to account for temperature expansion.

What happens if you don't put expansion joints in concrete?

Concrete expansion joints give the slabs just enough room to move which helps prevent cracks & buckling. Without these joints, even a little movement creates pressure and stress on the concrete. Eventually weak spots can crack or buckle.

How big can a concrete slab be without control joints?

Rule #1 – Keep joints as square as possible. Rule #2 – In order to prevent intermediate cracking, space joints (in feet) no more than 2 – 3 times the slab thickness (in inches).

How often should concrete have expansion joints?

Usually, expansion joints should be no farther apart than 2 to 3 times (in feet) the total width of the concrete (in inches). So for a 4 inch thick concrete slab, expansion joints should be no more than 8 to 12 feet apart.

Does concrete need expansion joints?

Where are expansion joints required?

Concrete expansion joints are particularly important where there have been consecutive concrete pours and are also useful when laying concrete within an area bordered by walls or buildings or if objects such as manhole covers need to be incorporated.

What happens if you don't cut concrete?

Late sawing can result in random concrete cracks. Shallow cracks aren't sufficient to prevent uncontrolled cracking while deep cuts are excessively labor intensive and undermine the aggregate interlock in the concrete.

Does a garage slab need expansion joints?

Many people understand that wood shrinks and expands as temperature and humidity ebb and flow through the year. But the same thing happens with concrete. That's why it is necessary to include expansion joints along the edges of the concrete garage floor as well as around posts or other protrusions in the slab.

When should control joints be cut in concrete?

Joints should be sawed as soon as the concrete will withstand the energy of sawing without raveling or dislodging aggregate particles. For most concrete mixtures, this means sawing should be completed within the first six to 18 hours and never delayed more than 24 hours.

How deep do you cut expansion joints in concrete?

A good rule of thumb is to cut the joints one-quarter to one-third the slab thickness. For a 6-inch-thick slab, that means cutting 1 1/2 to 2 inches deep.

Do driveways need expansion joints?

Concrete expansion joints are important for your sidewalk or driveway. Keeping your joints watertight will prevent moisture from seeping under concrete pads and causing them to heave or sink.

Why do they cut lines in concrete?

WHAT ARE CONTROL JOINTS? Control joints are preplanned cuts in concrete that help control where and how cracks appear in poured concrete. Concrete shrinks as it cures and will change in response to temperature. A large area of poured concrete is likely to crack, especially when up against a foundation or street curb.

How soon can you cut concrete after pouring?

After the concrete is poured, you can start cutting your concrete slabs within six to eighteen hours. During particularly hot weather, you can even begin as early as four hours after the concrete is poured.

How big can a concrete slab be without expansion joints UK?

No joint should be wider than 30mm.

What should I put between concrete slabs?

An expansion joint is a material placed in the cracks (or joints) between concrete slabs to protect the slabs from cracking when they contract and expand as the temperature changes. This material acts as a shock absorber, absorbing the stress from the slab's movement.

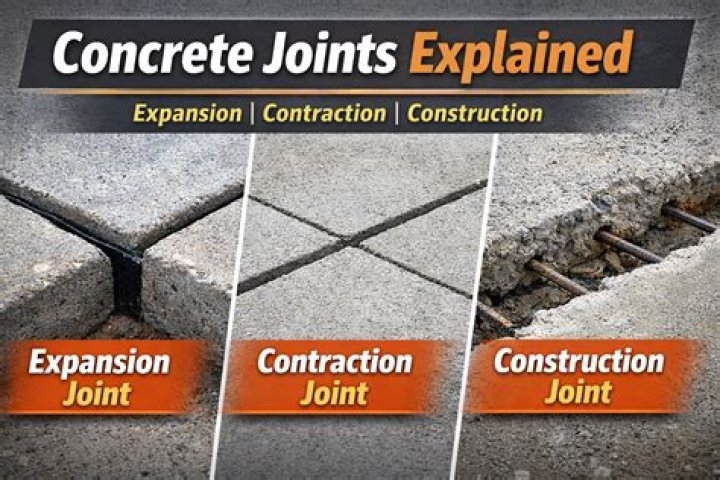

What is the difference between control joint and expansion joint?

Control joints can be isolated within the plane being treated (brick facades, concrete sidewalks) while expansion joints must bisect the entire structure thereby creating a gap throughout all of the building elements—foundation, walls, curtainwalls, plaza decks, parking decks, floors, and roof.

How many times do you float concrete?

Push the bull float in one direction only across the concrete, keeping its front edge slightly above the surface by raising or lowering the handle. Two or three times is enough. Don't overwork the concrete or you'll weaken it by drawing too much sand and cement to the surface.

What is the distance between expansion joints?

Joint expansion In jointed reinforced concrete slabs, the maximum expansion joint spacing varies from 25–27 m, and in unreinforced concrete, it ranges from 40 m (for slabs 230 mm thick) to 60 m (for slabs > 230 mm thick).

How thick does a concrete slab need to be for a garage?

Thickness of Garage Floor Slab

Light Loads – For one to two light cars or trucks, the concrete should be at least four inches thick. Medium Loads – If the garage is used for average-sized vehicles and/or medium to heavy trucks, the concrete needs to be six inches thick.

Do foundations have expansion joints?

The expansion joints along the foundation walls will most likely be covered with whatever wall framing you install. If a slab is to be used as a finished floor, a good choice for the contraction joints would be saw-cut joints, which are probably the least visible of the choices.

Do you push or pull a concrete saw?

Always let the saw do the work; simply guide its direction, but don't push it down into the concrete. You only need a quarter-inch cut at this point, but if the saw bites in a bit deeper, that's fine too. This first guided cut will ensure you keep your cuts straight during the rest of the project.

Should concrete control joints be caulked?

Caulking Concrete Cracks and Expansion Joints

Caulking the joints and cracks is the best way to stop this from happening. Even expansion joints in your concrete driveway should be caulked. They can be the biggest culprit of water under your slabs.
