Do plunge routers use different bits?

Most plunge routers and fixed routers have a few basic things in common. The shank of a bit fits in a nonadjustable chuck of a router called a collet. You can get most types of router bits in either a 1/4-inch or 1/2-inch shank. Smaller routers often use a 1/4-inch collet.

How deep can you cut with a straight router bit?

The long bits are made for trimming the edge of a board, where you can take very light cuts. Pat recommends never making a cut deeper than 3/16" on an inside cut.

Can you use a straight router bit in a drill?

It's possible to use a straight router bit for drilling because it can be used on a variety of projects and materials. In addition to being able to cut flutes in molding and create rabbets and mortises, straight router bits can also be used for drilling projects.

Can I use a Forstner bit in a router?

No, you cannot use a Forstner bit in a router. Forstner bits are designed to move at relatively low speeds, whereas routers move much faster. Routers spin far too fast to be used with Forstner bits.

Plunge Cuts with a Standard Straight Bit - Quick Tip

Can you use a keyhole bit with a drill?

You can drill keyholes easily if you have a steady hand. When making coat racks, doors or other interior items for your home, it can help to make keyholes with a drill bit. It can be difficult to make the keyholes straight, but it can be done with a router and a steady hand.

Can you plunge cut with a palm router?

Some routers have a plunge feature, which allows the router to be dipped into the work piece and will spring back to a preset distance. This simple router doesn't have a plunge feature but does allow you to set your bit depth by unbuckling the hasp and setting the depth of the fixed base.

What's the difference between a plunge router and a regular router?

In other words, if you set a fixed base router at a cut depth of 1/4", the router bit protrudes past the base 1/4" until you change the depth. A plunge base router is designed so that you can preset the cut depth and then lower (“plunge”) the bit into the cut with the router's base flat on the surface of the material.

Can any router bits fit any router?

Most routers out there come with two different sized router bits that are easily interchanged, but the router must accommodate both. If you have a smaller router, it likely only accepts ¼-inch collets. Outside of size, you can use a slew of different bits for any job.

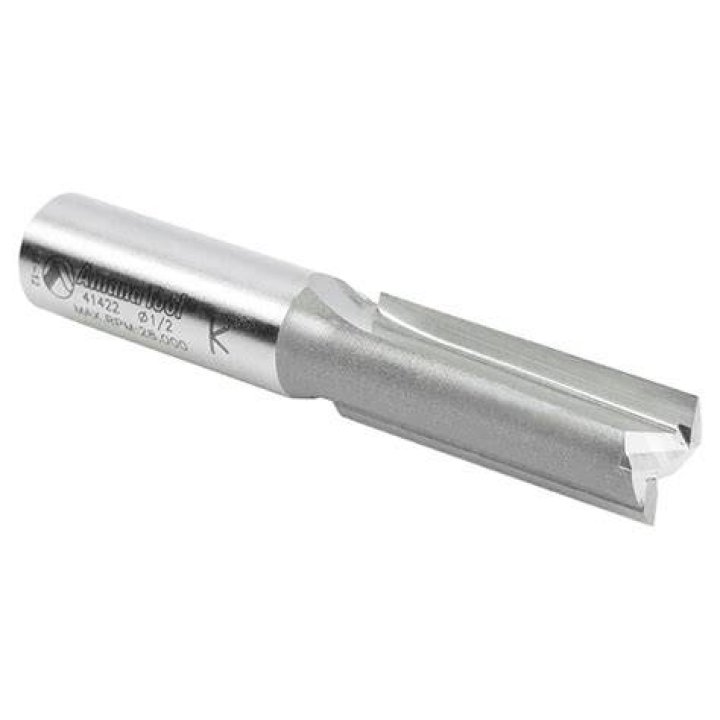

What is a straight bit?

A straight router bit with shear has angled carbide flutes for a slicing rather than a chopping cut which produces a cleaner edge. If a plunge cut with a flat bottom is desired, look for the plunging straight router bits.

What are spiral Upcut bits used for?

Upcut spiral tools are the most popular type of spiral fluted tool. Use these for grooving or slotting, for upward chip evacuation and best finish on the bottom side of the part. These bits allow for rapid cuts since the tool clears the chips away from the material.

Can you dado with a router?

The router is the one tool that will handle all the dadoing and grooving you'll do in woodworking. The dado is prime-choice joinery. It follows that hoary adage of woodworking, "Use the simplest joint that will work."

Can a router make a straight edge?

Although it takes longer than a jointer, routers can make clean, straight-edged joints for cabinet doors and panels, as well as for other woodworking projects.

What is the difference between a plunge router and a palm router?

Another consideration, the palm router, comes in both fixed and plunge models, but they're smaller, lighter, and easier to use with one hand. They often have a bit less power, so keep that in mind.

What is the difference between a trim router and a palm router?

Palm routers are smaller and more compact, making them better for small projects requiring precision such as decorative molding, engraving, and rounding or beveling edges. On the other hand, Trim routers are better for larger projects such as shelving, wooden fencing, or creating large signs.

Can I use a laminate trimmer as a router?

A modern laminate trimmer can perform almost any task that a larger handheld router can do, with the caveat that the smaller machine may be limited in the size of bit that can physically fit within its collet and the base plate.

What is a Forstner bit good for?

Forstner bits are unique in their ability to drill overlapping holes, notches on the edges of a workpiece, and angled holes on the face of a workpiece (pocket holes, for example). The bit will cut whether or not the center spur is engaging the workpiece. This feature is unique to the Forstner bit.
