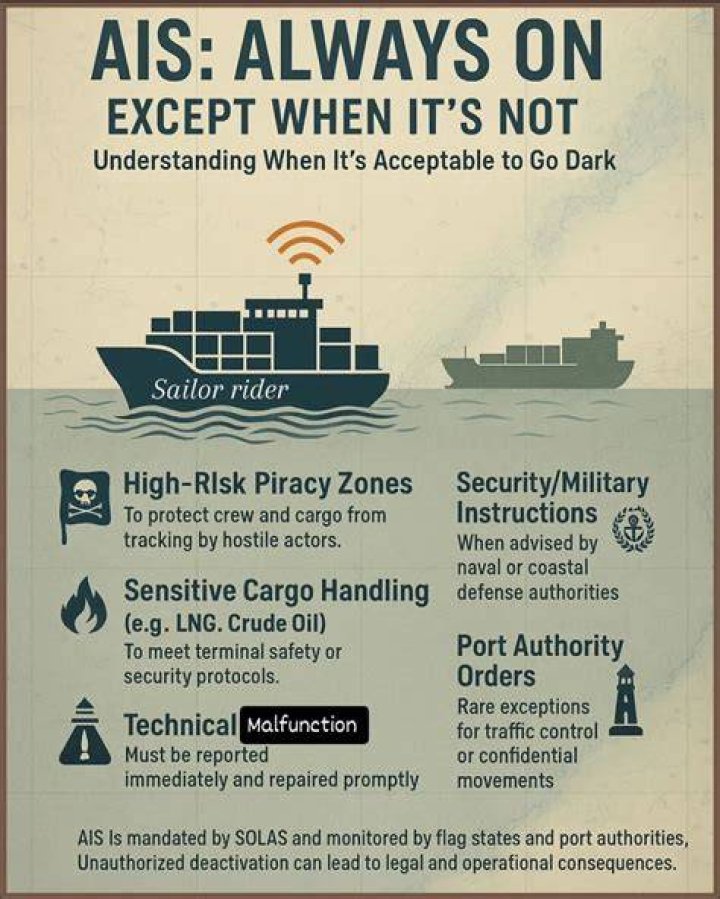

Why do some ships turn off their AIS units?

Pursuant to IMO guidelines, if the master believes that the continual operation of AIS might compromise the safety or security of his/her ship or where security incidents are imminent, the AIS may be switched off.

What are the main limitation of AIS?

Limitations of AIS

The accuracy of AIS information received is only as good as the accuracy of the AIS information transmitted. The position received on the AIS display might not be referenced to the WGS 84 datum. Over-reliance on the AIS can cause complacency on the part of the OOW.

Are ships required to have AIS?

AIS Rule Change for US Waters

The following vessels are required to install and use a Class A AIS transponder: All commercial vessels of 65 feet or more in length (except as defined below) Towing vessels of 26 feet or more in length and more than 600 horsepower. Vessels certificated to carry more than 150 passengers.

Why is AIS not working?

You may be in an area of poor coverage or challenging terrain which blocks easy reception of VHF signals. Your AIS transponder is not setup with the correct information (MMSI, call sign, ship's name etc) Your AIS transponder is not functioning correctly.

How AIS Works - Operation of AIS

Why is my AIS not showing up on marine traffic?

Possible reasons for a vessel's position not picked up and displayed on the Live Map are: The vessel is not equipped with an AIS transponder or the transponder is not operational or the transponder is not properly working.

How often is AIS updated?

What kind of information is broadcast for each ship and how often is it updated? A Class A AIS transponder broadcasts the following information every 2 to 10 seconds while underway, and every 3 minutes while at anchor: MMSI number - unique referenceable identification.

Is AIS a legal requirement?

If your fishing vessel is 15m or more in length, the law requires you to fit and maintain an AIS…

Do all vessels have AIS?

The International Maritime Organization's International Convention for the Safety of Life at Sea requires AIS to be fitted aboard international voyaging ships with 300 or more gross tonnage (GT), and all passenger ships regardless of size. For a variety of reasons, ships can turn off their AIS transceivers.

When was the final mandatory for the carriage of AIS?

All passenger ships irrespective of size. The requirement became effective for all ships by 31 December 2004.

What happens when an AIS sensor fails?

If the external position sensor fails the AIS unit cannot use the internal GPS receiver and no position will be transmitted. The difficulty we are now led to understand is this failure cannot normally be detected by the onboard user, and therefore how would the user know the vessel has a faulty AIS.

What are the three advantage of AIS?

The system is fully automated with absolutely no human intervention. Unlike Radar, It is not affected by rains or Sea. Its propagation is better than that of radar, due to the longer wavelength. It's possible to “see” around bends and behind islands if the land masses are not too high.

How does AIS work on a boat?

AIS works via a combination of GPS, VHF radio, and an AIS transponder. The transponder broadcasts a ship's information, such as speed and heading (information gathered by GPS, of course), the ship's name, port of origin, size and draft, and more, over VHF frequencies 161.975 megahertz and 162.025 MHz.

Do military ships use AIS?

The Automatic Identification System (AIS)—which most commercial and military ships rely on—is designed to show the ships' locations for safety purposes. Several warships have had their locations "spoofed," causing them to appear in provocative locations, particularly in Russian waters.

What is the difference between Class A and Class B AIS?

Class A AIS transponders are required to have a DSC (156.525 MHz) receiver, external GPS, heading, and rate of turn indicator, and can also transmit and receive safety-related text messages. Class B AIS transponders operate using Carrier-Sense TDMA (CSTDMA) broadcast mode and transmit at a power level of 2 watts.

Who should restart the AIS as soon as the source of danger has disappeared?

The master should however restart the AIS as soon as the source of danger has disappeared. If the AIS is shut down, static data and voyage related information remains stored. Restart is done by switching on the power to the AIS unit. Ship's own data will be transmitted after a two minute initialization period.

How do you turn off AIS?

Select Settings > Other Vessels > AIS > Off. All AIS functionality on all charts and 3D chart views is disabled. This includes AIS vessel targeting and tracking, collision alarms that result from AIS vessel targeting and tracking, and the display of information about AIS vessels.

What vessels are not required to carry AIS?

The regulation requires AIS to be fitted aboard all ships of 300 gross tonnage and upwards engaged on international voyages, cargo ships of 500 gross tonnage and upwards not engaged on international voyages and all passenger ships irrespective of size.

How do I know if my AIS is transmitting?

If you get green across the board then the unit itself is transmitting. Note if you don't get a check for TX position reports then check to see you have a valid GPS signal. The unit will not transmit unless it has a valid GPS position.

Do fishing boats need AIS?

For example, as of May 31, 2014, all European Union flagged fishing vessels over 15 meters in length are required to be equipped with AIS and as of March 1, 2016, all commercial U.S. flagged fishing vessels over 65 feet in length are required to be equipped with AIS.

Do fishing vessels have AIS?

The automatic identification system, or AIS, transmits a ship's position so that other ships are aware of its position. The International Maritime Organization and other management bodies require large ships, including many commercial fishing vessels, to broadcast their position with AIS in order to avoid collisions.

Do sailboats need AIS?

The new USCG AIS Rule requires most commercial boats operating in the US to install and operate a USCG certified AIS transceiver. Previously, under the international SOLAS regulation, only vessels over 300 Gross Tons on an international voyage were required to have an AIS Class A transceiver.

What is the difference between AIS and MMSI?

Maritime Mobile Service Identity (MMSI) is a unique 9 digit number that is assigned to a (Digital Selective Calling) DSC radio or an AIS unit. Similar to a cell phone number, your MMSI number is your unique calling number for DSC radios or an AIS unit.

Do I need VHF with AIS?

For AIS Transmit and Receive, you need two pieces, a VHF Radio with DSC built-in plus an AIS Transponder.

How many types of AIS are there?

Types of AIS equipment.

For a shipboard fitting there are three types of AIS equipment, Class A, Class B and receive only. Class A is intended for vessels where the fit is mandatory. Class A transmits more information, more frequently and at higher power than Class B.
