Can an orifice plate be installed backwards?

The hole through an orifice plate is precisely machined round with a sharp edge on the upstream side and a beveled edge downstream. Backwards installation of the orifice plate, that is with the beveled edge upstream, will invalidate the governing calculations described in AGA`s Report No.

Can orifice be used for bidirectional flow?

Two DP transmitters with an orifice plate, along with temperature compensation, can be used for the bidirectional flow. In this case, a non-beveled, square-edge type orifice plate should be used, and the two edges of the orifice should comply with specifications for the upstream edge mentioned in the ISO 5167 standard.

How you would identify the upstream side of an orifice plate?

A text label printed on the paddle or handle of any orifice plate customarily identifies the upstream side of that plate. In the case of the square-edged orifice plate it does not matter which side of the plate is upstream.

Why is an orifice plate beveled?

A beveled orifice should form an angle of::

The orifice plate inserted in the line causes an increase in flow velocity and a corresponding decrease in pressure. The flow pattern shows an effective decrease in the cross section beyond the orifice plate, with a maximum velocity and minimum pressure at the vena contracta.

Types of Orifice plates | Piping

Which way does an orifice plate go?

Eccentric Orifice Plate

For gas flows, the hole should be offset downward, so any liquid droplets or solid particles may easily pass through. For liquid flows, the hole should be offset upward to allow gas bubbles to pass through and offset downward to allow heavy solids to pass through.

What are the different orifice plates?

Standard material grades for orifice plates include 316 Stainless Steel, 304 Stainless Steel, 310 Stainless Steel, Hastelloy® C276, Hastelloy® B3, Duplex Stainless Steel, Super Duplex Stainless Steel, Monel® 400, Carbon Steel, Titanium, Incoloy® 800, Incoloy® 825, Inconel® 600 and Inconel® 625.

What is upstream and downstream in orifice plate?

(Vena-Contracta Taps are located 1 pipe diameter upstream of orifice plate and at the point of minimum pressure downstream, this point is called the vena-contracta.

Can orifice be installed vertically?

Installing an Orifice Meter

The section of the pipe in which the primary element is installed can be horizontal, inclined or vertical.

Can restriction orifice installation in vertical line?

Orifice plate installation in vertical line

Orifice flowmeters can be installed vertically. Points to note when installing vertically: (1) When measuring liquid flow, the flow sensor can be installed vertically. The fluid is required to flow from bottom to top to ensure that the pipe is full.

How does an orifice plate work?

Orifice plates are a primary flow element, detecting the flow of a fluid passing through the plate by sensing the pressure drop across the plate. When a fluid flows through a restriction in a pipe, it creates a pressure difference between upstream and downstream of the restriction.

Is Coriolis flow meter bidirectional?

And, the Coriolis meter is bidirectional, handling flow in either direction with no adjustments. Coriolis meters are extremely accurate. In fact, a Coriolis meter is often used as a standard for checking other flow- meters. A liquid mass flow accuracy of 0.10% is common, and 0.05% is readily available.

What are the disadvantages of using an orifice plate?

Disadvantages of Orifice Plate

• Relatively high permanent pressure drop.
• Their characteristic may change due to erosion and corrosion.
• It may cause clogs in slurries. Not good with fluid having high viscosity.
• The fluid must be in single phase and homogeneous.
• Square root characteristics.

How do you identify an orifice in the pipeline?

An orifice identification, whether it is for liquid measurement or for gas/air measurement, is identified by its tab; which is hanged outside. If it is up (with bore of up hole), then it is used to measure liquid, and if it is down (with bore of down hole) then it is used to measure gas/air.

What is square edge orifice plate?

Concentric Square Edge Orifice Plate: These plates are most commonly used devices for flow measurement for clean liquids, gasses and low velocity vapour (steam) flows. These plates have a sharp, Square edged hole bored in a flat thin plate with or without bevel at the outlet depending on size & usage.

What is vertical orifice?

The vertical orifice is one of the flow metering devices used to determine the discharge of fluid flowing through it. It is a small opening given at the bottom of the tank with the inlet of fluid placed at the top of the opening through which the fluid is discharging freely into the atmosphere.

Does orifice plate reduce pressure?

An orifice plate is a device used for measuring flow rate, for reducing pressure or for restricting flow (in the latter two cases it is often called a restriction plate ).

What is upstream and downstream?

Upstream refers to the material inputs needed for production, while downstream is the opposite end, where products get produced and distributed.

What is 10D upstream and 5D downstream?

They are volumetric flow measurement. Conversions are required for mass flow measurements. 10D upstream and 5D downstream are recommended for installations. Gas in liquid above 5-10% will cause affect the accuracy of the flow measurement.

What is upstream and downstream of flow?

Upstream means that the object is going opposite to the flow of the river. In this case you have to subtract the speed of the given object in still water from the speed of flow of the stream. Downstream means that the object is flowing along the river and in this case you have to add the speed.

How do I know what size orifice plate I have?

Divide the flow of the liquid by the velocity of the liquid to determine the area of the orifice in square feet. In the above example, you would divide 8 by 2. The total area of the orifice would be 4 square feet.

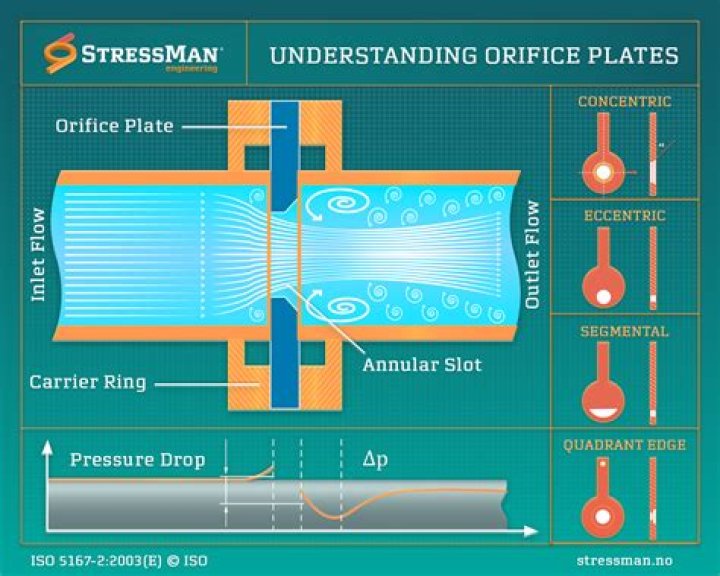

What are the three orifice plate designs?

Types of orifice plates

• Concentric orifice plate.
• Eccentric orifice plate.
• Segmental orifice plate.
• Quadrant edge orifice plate.

How do you pressure tap an orifice plate?

As is customary with orifice plates mounted in vertical pipes, the direction of flow is upward (from bottom to top), making the bottom tap the “high pressure” side and the top tap the “low pressure” side.
